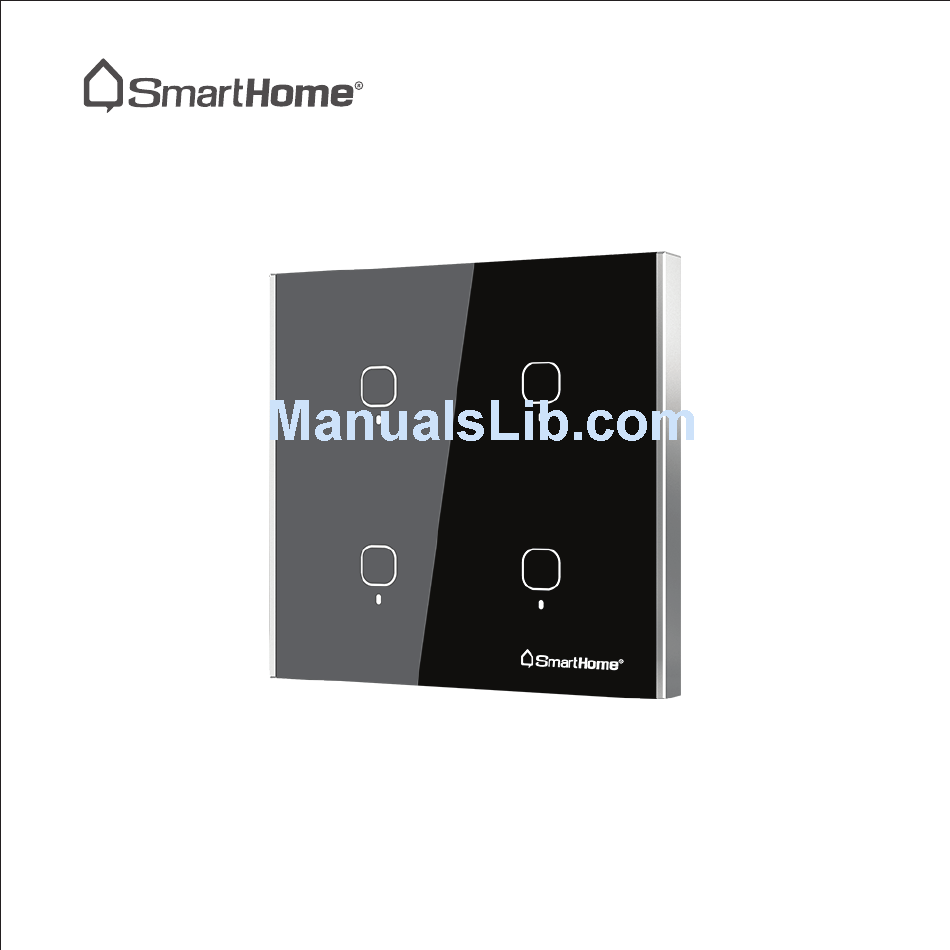

Page 1 Bkav MODEL: SH - CT4R...
Page 3: User Guide
USER GUIDE 4-CHANNEL CONTROLLER SH - CT4R Bkav SmartHome technology company limited...
Page 4 Usage notice Thank you for choosing 4-channel controller SH - CT4R of Bkav SmartHome. By selecting Bkav SmartHome’s products, you will get the best warranty service and installation support from our technicians. This document gives useful information during installation and usage time. You should read and keep the manual carefully in case of need.
Page 5 4-channel controller SH - CT4R is the product of Bkav SmartHome and has been registered regarding design, utility solutions and quality certiﬁcation. All violations such as copies of design and product idea are subject to the current copyright law of the Socialist Republic of Vietnam.
Page 6: Table Of Contents
Table of contents Usage notice Safety instruction Introduction General introduction Product package Speciﬁcations Wiring diagram Installation instruction Device usage Function of direct control Use remote control SH - RM6 Contact...
Page 7: Safety Instruction
Safety instruction Do not use voltage which is different from the one stated in the device’s speciﬁcations. Disconnect the device’s power prior to any installation, disassembly or repair. Do not leave the device in high-temperature environment. Do not disassemble the device if not necessary. Do not clean the device with corrosive chemicals.
Page 8: Introduction
Introduction General introduction Touch switch SH - CT4R supports turn-on/off of 4 power channels and remote control SH - RM6 (*). With the capacitive touch technology, anti-scratch Gorilla Glass, remote control support, unibody aluminum, the device will make your house more convenient and luxurious.
Page 9: Product Package
Product package Touch-screen Receptacle box control panel Remote control Power circuit SH - RM6 (additional purchase) Signal connecting by Bkav User guide cable and set (book) of screws MODEL: SH - CT4R...
Page 10: Speciﬁcations
Speciﬁcations Operating voltage: 100-240V 50/60Hz Operating temperature: 60ºC max 5A max Power rating: Dimensions: 97 x 93 x 8.6 mm Weight: 120 gram...
Page 11: Wiring Diagram
Wiring diagram Made by SmartHome Made in Vietnam by Bkav 4-channel controller Model: SH - CT4R - P Voltage: 100-240V 50/60Hz Power rating: 5A max Operating temperature: 60ºC max Disconnect the device’s power prior to any installation. 100-240 Neutral Line...
Page 12: Installation Instruction
Installation instruction Step 1: Connect unconnected wires (2) from receptacle box (1) to power circuit box (3) as in Figure 1 based on the wiring diagram in page 8. Power circuit box Unconnected wire Receptacle box...
Page 13 Step 2: Follow the arrow’s direction to insert power circuit box (3) into receptacle box (1), tighten 4 M4 screws (4) as shown in Figure 2. Notice: Connector must be installed upwards. Receptacle box Connector Power circuit box M4 screw...
Page 14 Step 3: Connect connecting cable (5) to power circuit box (3), then connect another cable’s head with touch-screen control panel (6). Push touch-screen control panel (6) towards power circuit box (3). Notice: The green part of the connecting cable’s head must be in an upward direction on connecting.
Page 15: Device Usage
Device usage Touch control button Infrared port Status indicator light...
Page 16: Function Of Direct Control
Function of direct control SH - CT4R uses the capacitive touch technology to turn on/off electric devices just by gently tapping on the corresponding icon on the glass. The indicator below the icon is on, the corresponding status of the device is on. The indicator below the icon is off, the corresponding status of the device is off.
Page 17 > to turn on/off the device 3. Press button < > to turn on/off the device 4. Press button < > to turn on/off all the devices. The device 1 The device 2 The device 4 The device 3 SH - CT4R SH - RM6...
Page 18 Notice: When all the device’s channels are turned off manually during use, press button < > all the channels will be turned on. When one of the device’s 4-channel is on, press button < > the channels which are currently on will be off. Pressing button <...
Page 19: Contact
Contact If there is any problem related to the product, please contact Customer Contact Center: Customer Contact Center: (+1) 202 386 6779 Email: GlobalProject@bkav.com...
Page 20 T h e n e w h o m e s t a n d a r d !
