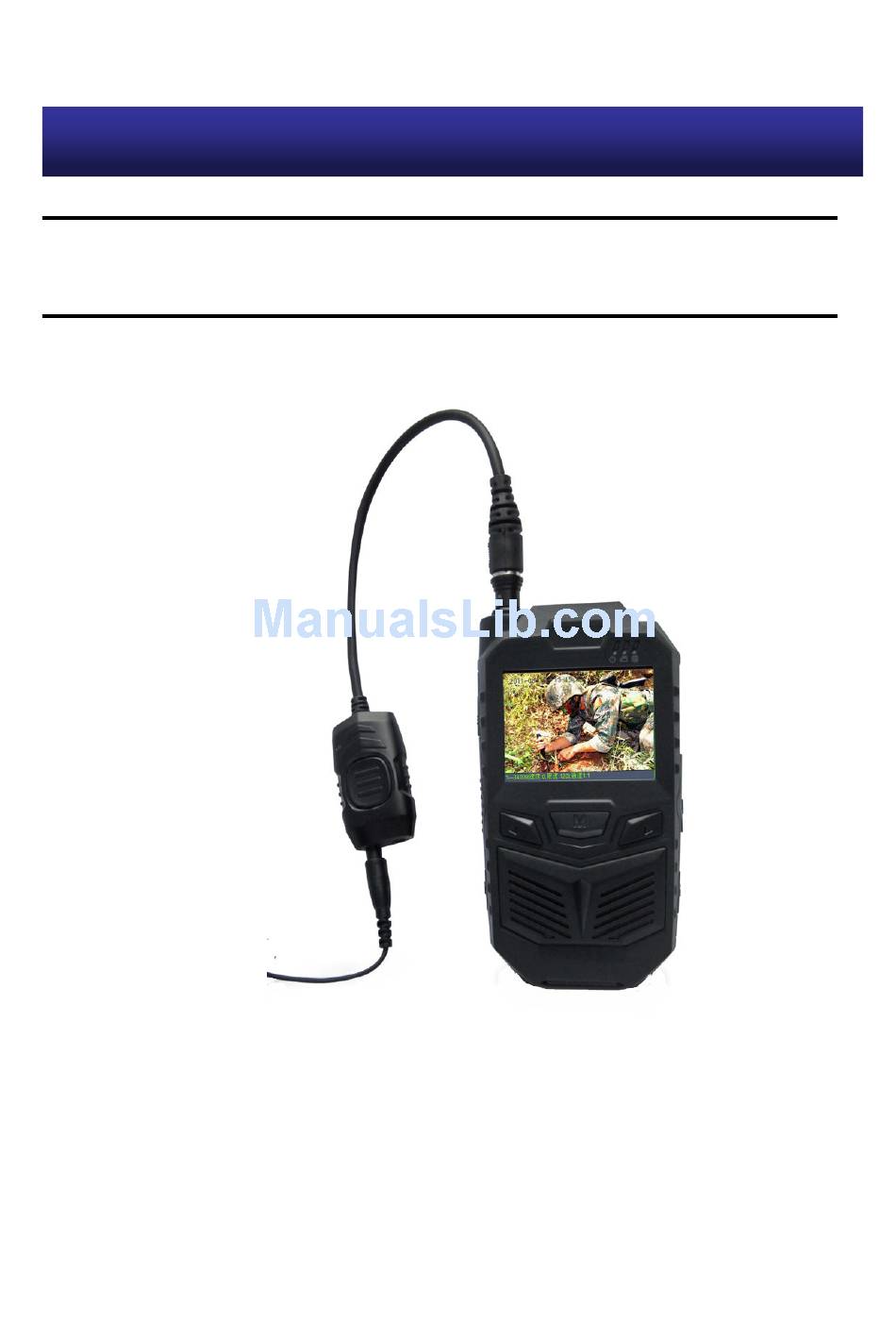

- Page 1 PC201 3G Portable Mobile DVR User Manual V1.2 Independent design, external lens, headset, integrated MIC, 3G, GPS,WIFI, Voice communication, Portable Video recorder Special suggestion: the product model photo for reference only...
-
Page 2: Table Of Contents
3. Installation and charge Guide………………………………………………………………………..12 3.1. Unpacking and Inspection of Accessories.................12 3.2. SD card/SIM card installation ...................12 3.3. Charge……………………………………………………………………………………13 Connect to PC ………………………………………………………………………..13 4. PC201 main menu instruction…………………………………………………………………..14 4.1. Menu structure……………………………………………………………………………14 4.2. User login………………………………………………………………………………...15 4.3. Main menu …………………………………………………………………………….16 4.4. - Page 3 4.8.4 Display management …………………………………………………………….37 4.8.5 Power management …………………………………………………………….38 4.9. Status information ………………………………………………………………………39 Equipment Upgrading Guide……………………………………………………………………….39 5.1. Upgrading method………………………………………………………………………….39 5.2. Upgrading step……………………………………………………………………………...39 5.2.1 Application program……………………………………………………………………39 5.2.2 File system/ Bootstrap/ Kernel program……………………………………………….40 6. FAQs…………………………………………………………………………………………………..40...
-
Page 4: Product Introduction
1. Product Introduction 1.1 Overview PC201 Portable Video Recorder (“Portable MDVR” for short) is dedicated for mobile handheld or wears monitoring products. Apply the embedded platform with the functions 3G wireless communication module,WIFI module and GPS module. Built-in battery-powered , supplement with drive-by-wire ,small camera, headset . - Page 5 Host independent portable design,meet various Independent design application scenarios demand flexible Graphic operation interface Accomplish different parametric setting Security Management administrator password management Video Input External camera, 70 degree visual Angle Character superposition function, information superposition of time and date, device ID and GPS, etc. Video H.264 Compression coding.
-
Page 6: Application
Net Weight: 300g Weight Note: The specifications are subject to change without prior notice. 1.3Application 1.3.1. Environment adaptation PC201 Portable MDVR can work under such condition as follow： ： ： ： Item Index Upper limit of temperature for storage 65℃... -
Page 7: Typical Application
manufacturer. If the device is to be laid aside for a long time, please remove the battery to be stored separately in order to prevent eliminate safety hazards. Do not use or store the battery fully discharged, it will shorten the battery’s life Be sure to turn off the device power supply and disconnect the charger before removing the battery. -
Page 8: Features
Figure 2 1.4. Features: External CMOS camera, microphone, audio and video synchronization storage monitoring H.264 video code compression Lithium battery-powered, easy to charge and carry Real-time local video recording ,multi format for choose Record mode: recording at startup, manual start recording, recording when alarm; Universal video file formats: applying ASF format, which can be played with the universal software VLC or the supplied playback software, Data storage: supporting Micro-SD card up to 32G... -
Page 9: Compression Functions
H.264 video code compression ,CMOS video input, 1 composite video output Lithium battery-powered, easy to charge and carry Standard GPS optional Supporting 3G wireless transmission functions, various 3G standards, WCDMA, CDMA2000, TD-SCDMA..Optional features. WIFI wireless transmission function, WEP、WPA\WPA2 optional Real-time local recording: 25f/s(PAL);30f/s(NTSC).Video fixed recording D1;... -
Page 10: Back Cover Definitions
1、Host on-off key 2、Video photograph key 3、Audio and video interface 4、Manual shift left key (Left key) 5、Power/Recharge indicator； 6、recording indicator 7、3G/WIFI indicator； 8、enter key(【M】key ) 9、Shift right key(right key)； 10、Host power connection/external data line interface 11、Manual recording startup key； 12、Alarm/dial key(Alarm when press within 2 second, longtime press more than 3 seconds start manual dial ) 2.2．... -
Page 11: External Line Definitions
Note “Short Pressing “mean button-Pressing within 3 seconds;”Long Pressing” mean button-Pressing more then 3 seconds. Description of indicator： Indicator Description Turn on: Green lamp always lighting Recharging: red lamp always lighting Power Recharging full: Red lamp off Recording Recording:Red lamp flashing Find 3G module and select 3G: Red lamp always lighting 3G success: Red lamp flashing Find WIFI module and select WIFI: Green lamp always... -
Page 12: Installation And Charge Guide
Picture 1: physical map of the external camera Picture 2: physical map of the headset 3. Installation and charge Guide 3.1. Unpacking and Inspection of Accessories Please check the device for deformation or other properties of damage, if the above phenomenon exists, please stop using it and get in touch with your suppliers. -
Page 13: Charge
Open the cover of right side, connect the adaptor for recharging. Indicator lamp becomes REd during the recharging. Recharging full, indicator lamp become Green. 3.4. Directly connected to the PC PC201 can connect to computer directly through USB data line. -
Page 14: Pc201 Main Menu Instruction
Figure 8 4. PC201 menu description 4.1. Manu structure User can control all the function of the device through a series of menu operation. This chatter introduces these menu structure in brief, and the detail description is in the following chapter. -
Page 15: User Login
Manu structure figure 9 4.2.Use Login If Password valid setting is enable: Press 【M】key after device start, get into Login menu(see the following figure 10),enter correct user password or manager password to login; Move cursor to ‘ OK ’ bar, press【M】key to entrance system main menu; Move cursor to ‘Cancel’... -
Page 16: Main Menu
Figure 10 Notice: When user password is the same with manager password, the privilege is manager after login system. 4.3.Main menu After login, users can find the main Menu as figure 11. The main menu included: Video playback、picture browsing、system configuration、system information、manage tool、exit。 Note: The parameter modified process is: move cursor to the item bar which you want to modified, then press 【M】key to entrance;... -
Page 17: Video Playback
4.4.Video playback In the main menu, press left key or right key to the video playback item bar, then press 【M】 key to entrance the video playback search interface(as figure 12): Figure 12 Attention： After enter the video search interface, system will automatic search the date which exist video record on the current month. - Page 18 Figure 13 Press left key or right key to choose“First、Prev、Next、Last、Exit”item bar, then 【M】to enter the corresponding interface; Press left key or right key to choose the required video record, then press 【M】 key to play the chosen video record(for example, choose the 13:00~13:30 video record),then the play interface as figure 14,then if press left key or right key will popup playback control tool bar(find in the following figure 14) Figure 14...
-
Page 19: Photo Preview
reverse、raise voice、lower voice” item bar，select “Exit” item bar in the playback tool bar and press 【M】key may go back to video search interface. 4.5.Picture browsing In the main menu, press left key or right key to choose picture browsing item bar, then press【M】key to enter picture searching interface(as figure 15) Figure 15 Attention：... -
Page 20: System Setup
4.6.System configuration In the main menu interface, press left key or right key to choose system configuration menu, press 【 M 】 key to enter the system configuration interface(as following figure).System configuration included the following sub menu: basic setting、 recording setting、Snapshot setting、security setting、network setting. Figure 16 4.6.1 Basic configuration Press Left key or right key to choose “Basic”... -
Page 21: Record Setting
Figure 17 Date Setting the system current date, Press【M】key and left / right key to modified. Time zone Select the time zone, default time zone is GMT+08,Press 【M】key to choose other time zone. Time Setting system current time, Press 【M】 key and Left/right key to modified. Time format is 24-hour, hour: min: sec. - Page 22 Figure 18 Basic setting: Working mode Auto recording mode /manual recording mode; when setting at manual recording mode, short press REC key to start recording; long press REC key to stop recording. Automatic override Turn on/off; Turn on mode, automatic override from original video after disc run out;...
- Page 23 Curse move to “main ” item bar, press 【M】key to enter main code stream setting interface: Figure 19 Resolution D1/HD1/CIF Section time Time duration for each record section Code rate 2048/2000/1400/1000 Frame rate Choose range from 1 to 30, Image processor renewed frequency per second. Default value is 25.
-
Page 24: Snapshot Setting
Figure 20 Image quality High/medium/low, Press【M】key or Left/right key to choose. Frame rate 01/03//05/10/15/20 frame, corresponding to bite rate,automaticly change with code rate. Code rate Automatically change with frame rate, Press 【M】key to choose; Code rate default value is 210,Frame rate default value is 20. When finished setting, choose “OK”item bar to save the setting. -
Page 25: Security Setting
Figure 21 Snapshot quality 1/2/3/4/5 class, press【M】key to choose. Storage duration Press【M】key to enter keyboard interface, then use Left key、right key and 【M】 key to input the value. When finished setting, choose “OK”item bar to save the setting. 4.6.4 Security setting Move Cursor to “security”... -
Page 26: Network Setting
Figure 22 Password enable setting Press 【M】key to turn on or off; Turn on: Setting user/admin password. Press 【M】key or Left/right key to input letter or number; input 6 same character password two times; Default administrator number is :888888. Turn off: Unable to setting password. User can enter main menu without login. 4.6.5 Network setting Move cursor to “Net”... - Page 27 Figure 23 Network mode setting Press 【M】key to choose mode: 3G/WIFI/3G+WIFI Trigger mode setting Press 【M】key 、Left/right key to choose mode: Manual /Auto. Code stream type setting Press 【M】key 、Left/right key to choose mode: Sub code stream/Main code stream. 3G setting Move curse to “3G”...
- Page 28 Figure 24 3G Type Three value for choose:WCDMA/EVDO(CDMA2000)/TD-SCDMA Access point、 center number、user name、password setting Depand on the local network provider Center setting Move curse to “Center”,press 【M】key to enter center setting interface: Figure 25 Conection type...
- Page 29 Two type of connection type for choose:Domain or IP Server IP Input Server IP address when connection type is IP Server domain Input Server domain address when connection type is domain Control port Server IP mapping port WIFI setting Move curse to “WIFI”,press 【M】key to enter WIFI setting interface: Figure 26 Authentication mode WEP/WPAPSK/WPA2PSK,Press 【M】...
-
Page 30: Sms Intercom
Figure 27 DHCP:Press 【M】key to turn on/off DHCP IP address,Netmask,Gateway,are corresponding to router setting. When finished setting,choose “OK”item bar to save the setting. 4.7.SMS intercom configuration Press left key or right key to choose “Message” item bar in the main menu interface;Then press 【M】... -
Page 31: Preset Sms
Figure 28 4.7.1 Preset Message Figure 29 Preset message content display in the preset message interface, Press 【M】key 、Left key、right key to choose. 4.7.2 Inbox... -
Page 32: Outbox
Figure 30 In Inbox interface, user can check the received SMS recipients、received date and time、SMS content、SMS number etc. Press【M】key 、Left key、right key to choose. Press Left key or right key to choose the received SMS in the list, Press 【M】 key to enter SMS viewing interface. -
Page 33: Intercom Setting
4.7.4 Intercom Figure 32 4.7.5 Address book Figure 33 Press Left key or right key to choose the contact people in the list, Press 【M】key to enter the SMS sending interface(See the following figure 34). - Page 34 Figure 34 Press left key or right key to choose message “content” item bar,then press 【M】 key to enter preset SMS choosing interface, as figure 35: Figure 35 Press left key 、right key or【M】key to choose the preset message .Then the preset message display on the SMS sending interface.as figure:...
-
Page 35: Management Tool
Figure 36 Press left key or right key to choose Sending item bar,then press 【M】key to send the SMS. 4.8. Management tool In the main menu interface, press left key or right key to choose “tool” item bar, then press 【M】... - Page 36 Log management record startup &shutdown event、GPS timing、Alarm、system update information etc,the information content included event date、event time and event name. Figure 38 Startup date Press 【M】key 、left key or right key to set the start date of log inquiry. Startup time Press 【M】key 、left key or right key to set the start time of log inquiry.
-
Page 37: Disc Management
In the search interface, press left key or right key to choose “Front、 previous、 next、 end” item bar, then press 【M】key to view the information. 4.8.2 Disc management Move cursor to “Disc” item bar, Press 【M】 key to enter to formatting the assigned Micro-SD card. 4.8.3 Configuration management Move cursor to “CFG manage”... -
Page 38: Power Management
Figure 41 Preview time overlay selection Press 【M】key to choose Yes or No Time overlay selection Press 【M】key to choose Yes or No GPS overlay selection Press 【M】key to choose Yes or No Device number overlay selection Press 【M】key to choose Yes or No 4.8.5 Power management Move cursor to “Power”... -
Page 39: Status Information
Device mode,Device can connect to PC by USB port. 4.9. Status Info Press Left key or right key in the blank interface, then see the current status of PC201 after all setup.； GPS Module：Display GPS module current status information 3G-E/W/T：Display3G module current information, dialup status and 3G signal value;... -
Page 40: Application Program
5.2. Upgrade step 5.2.1 Application program M5200-APP-*******. crc Upgrade file format is: Step1 .Copied the file you want to upgrade to the Micro-SD card, be sure to make the file complete copied; Step2. Insert the Micro-SD card in equipment without power Step3. - Page 41 Q: The image is not smooth or screen blur A：Be sure that the video encoding parameter settings is appropriate, reduce the stream testing; in most cases the problem is resulted by the 3G network instability Attachment Create an “fixedsms.ini”document,then write the preset content into the document as the sample format : Preset message sample: ##############fixed sms ini################ [OVERVIEW]...
