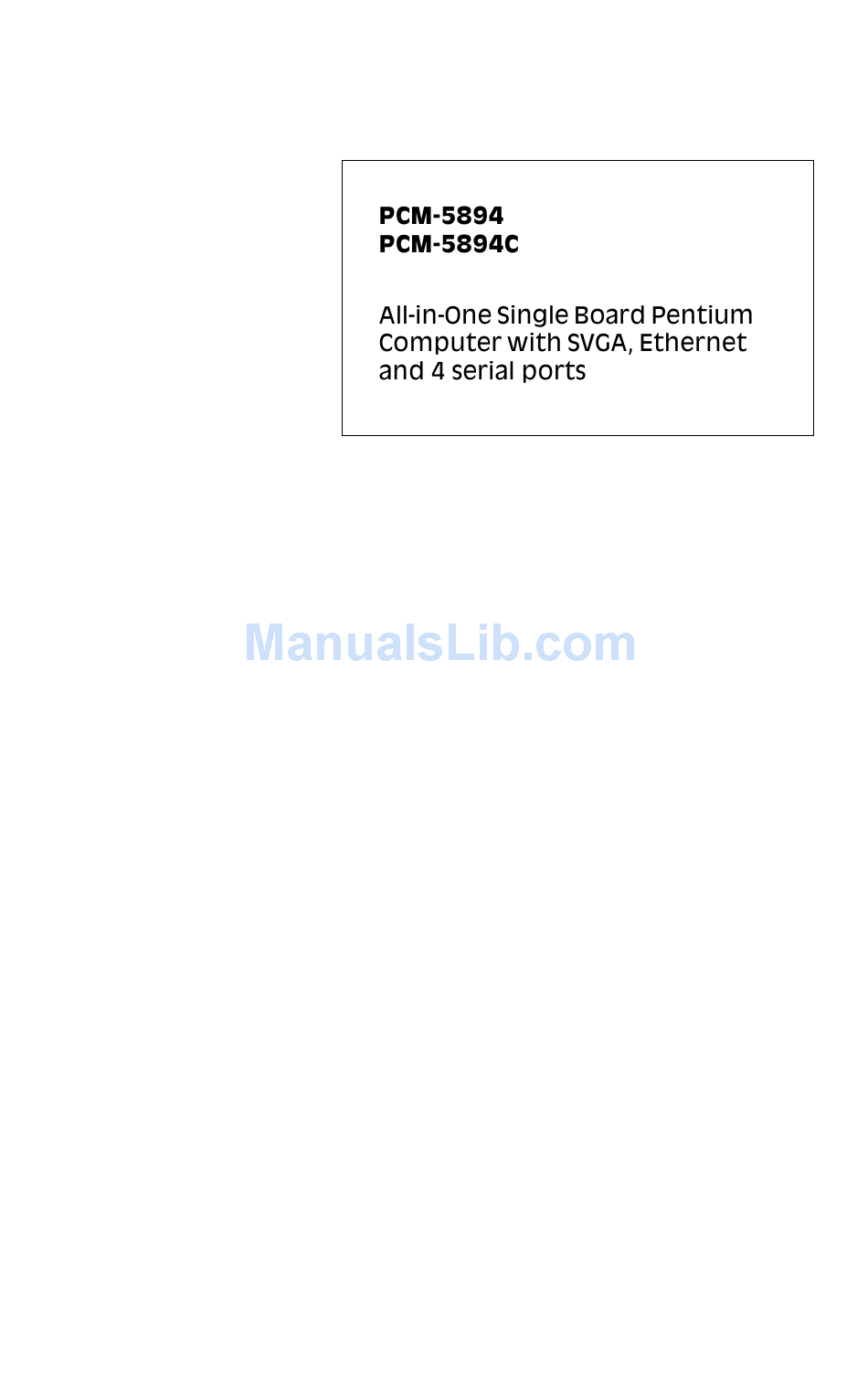

SBC PCM-5894 User Manual

All-in-one single board pentium computer with svga, ethernet and 4 serial ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM-5894 and is the answer not in the manual?

Questions and answers

Summary of Contents for SBC PCM-5894

  • Page 2 FCC STATEMENT THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARM- FUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFER- ENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS "A"...
  • Page 3 SIS is a trademark of Slicon Integrated Systems Corp. VIA is a trademark of VIA Technology, Inc. All other product names or trademarks are properties of their respective owners. Part No. 2006589400 Manual PCM-5894 1st Edition Printed in Taiwan November 1997...
  • Page 4 Before you begin installing your card, please make sure that the following materials have been shipped: • 1 PCM-5894/PCM-5894C All-in-One Single Board Computer • 1 User's Manual (This book) • 1 utility disk with Ethernet drivers • 4 utility disks with PCI SVGA utility programs and drivers for Windows 3.1, Windows 95, Windows NT 3.51, Windows NT...

  • Page 5: Table Of Contents

    Introduction ................2 Features ..................3 Specifications ................4 Board dimensions ..............7 Jumpers and connectors ............10 Locating jumpers ..............12 Locating connectors ............. 13 Setting jumpers ..............14 CPU installing and upgrading ..........15 System clock setting (J2) ............16 CPU frequency ratio (J8) ............
  • Page 6 Serial ports (CN15) ............... 32 Serial port RS-232/422/485 selection ........33 CMOS setup (J7) ..............34 COM3/COM4 RI pin setting (J20, J21) ........34 CMOS setup (J7) ..............34 VGA interface connections ..........35 CRT display connector (CN1) ..........35 Ethernet configuration ............
  • Page 7 OS.2 Warp 3.0 (Double Byte Character) ......84 OS.2 Warp 3.0 (Single Byte Character) ......86 Ethernet software configuration .......... 88 Programming the watchdog timer ........90 Installing PC/104 modules ............94 PCM-10489-1 Cable kit for PCM-5894 ......98 PCM-10589-1 PCI interface riser card ........ 98...

  • Page 9: Specifications

    This chapter gives background informa- tion on the mainboard. Sections include: • Card specifications • Card layout and dimensions Chapter 1 General Information...
  • Page 10 The PCM-5894 is a Pentium single board computer with one on- board PCI SVGA controller, one PCI Ethernet interface and one PCI expansion slot. Equipped with 64 bits local bus architecture, the PCM-5894 releases Pentium's full potential and provides unprecedented performance compared to current 32-bit proces- sor boards.
  • Page 11 • Little Board form factor (203mm x 146mm) • Supports Intel P54C/P55C, AMD K5/K6 and Cyrix M1/M2 CPUs • DiskOnChip (SSD) up to 72MB • Display both CRT and LCD (TFT, DSTN, Mono, EL) simultaneously • 100-Base Ethernet, supports boot function •...
  • Page 12 USB connectors: Dual USB connectors on board • Watchdog Timer: Can generate a system reset, IRQ15 or NMI. Support software selectable timeout interval. (2 sec. ~ 128 min., 1 sec./step) • DMA channels: 7 • Interrupt levels: 15 PCM-5894 User's Manual...
  • Page 13 • Power management: I/O peripheral devices support power saving and doze/standby/suspend modes. APM 1.2 compliant • VGA Controller: C&T 65554/ SiS 5598 (for PCM-5894C) • Display memory: 2MB on board/UMA structure for PCM-5894C • Display type: Supports CRT and flat panel (TFT, DSTN, Mono and EL) display.
  • Page 14 Bare Board: +5V @ 1.5A Pentium MMX onboard: +5V@6A AMD K6-233 onboard: +5V@10A • Operating temperature: 32 to 140 F (0 to 60 • Board Size: 8”(L) x 5.75”(W) (203mm x 146mm) • Weight: 0.66 lb. (0.3 Kg) PCM-5894 User's Manual...
  • Page 15 3.56 5.08 40.64 97.16 100.97 119.38 174.63 177.17 193.04 198.12 203.20 PCM-5894 dimensions Chapter 1 General Information...
  • Page 16 PCM-5894 User's Manual...
  • Page 17 This chapter describes how to set up the main-board hardware, including instruc- tions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all the safety precautions before you begin the installation proce- dure. Chapter 2 Installation 9...

  • Page 18: System Clock Setting (J2)

    CMOS setup CPU frequency ratio CPU type select LCD connector driving voltage select CPU voltage setting Memory address selection (D.O.C.) COM2 selection COM2 selection IRQ selection (COM3, COM4) COM3 RI Pin setting COM4 RI Pin setting 10 PCM-5894 User's Manual...

  • Page 19: Diskonchip Socket (U16)

    Label Function CRT display connector Fan Power connector Flat panel display connector USB connector Front panel connector Peripheral power connector (-5V, -12V) Keyboard and mouse connector CN10 IrDA connector CN11 IDE hard drive connector CN12 Main power connector (+5V, +12V) CN13 Parallel port connector CN14...
  • Page 20 CHIPS B 5 5 5 4 A M D 5 X 8 6 - 1 3 3 ( 3 . 4 5 V ) 12 PCM-5894 User's Manual...
  • Page 21 CN14 CN15 CN13 CN16 CN11 CN12 CN10 CN16 CN15 CN14 CN17 CHIPS B 5 5 5 4 A M D 5 X 8 6 - 1 3 3 ( 3 . 4 5 V ) Chapter 2 Installation 13...
  • Page 22 If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales represen- tative before you make any changes. Generally, you simply need a standard cable to make most connections. 14 PCM-5894 User's Manual...
  • Page 23 Warning! Always disconnect the power cord from your chassis when you are working on it. Do not make connections while the power is on as sensitive electronic components can be dam- aged by the sudden rush of power. Only experi- enced electronics personnel should open the PC chassis.
  • Page 24 J2 is used to sychronize the system clock with the CPU clock and PCI clock. You may need to adjust the CPU clock according to the base CPU speed. CPU clock setting 55MHz 27.5MHz 75MHz 32MHz 50MHz 33.3MHz 50MHz 25MHZ 60MHz 30MHz 66MHz 33.3MHz *default setting 16 PCM-5894 User's Manual...
  • Page 25 CPU frequency ratio P54C P55C AMD-K6 * default setting J10 must be set to match the CPU type between Dual-Voltage ( e.g.P55C ) and Single-Voltage(e.g.P54C)type CPU. The chart below shows the proper jumper setting for their respective CPU type. CPU type select Dual-Voltage* Single-Voltage * default setting...
  • Page 26 J12 must be set to match the CPU type. The chart below shows the proper jumper settings for their respective V 3.6v 3.5v 3.4v 3.3v 3.2v 3.1v 3.0v 2.9v 2.8v* 2.7v 2.6v 2.5v 2.4v 2.3v 2.2V 2.1v *default setting 18 PCM-5894 User's Manual...
  • Page 27 The mainboard provides two 72-pin SIMM (Single In-line Memory Module) sockets and supports either Fast Page Mode (FPM) or Extended Data Output (EDO) DRAM with a speed of at least 70 ns. Unlike most other CPU cards, the mainboard supports both single and dual insertion into the memory bank.
  • Page 28 Figure1-MD2200 Pin-out Note 1: Pins A13 through A16 are not used by the MD2200. They are kept for socket backward compatibility with ED 1100 (DiskOnChip 1000) Note 2: Pins 1 and 30 are not used by MD2200 20 PCM-5894 User's Manual...
  • Page 29 The DiskOnChip 2000 occupies a 8 Kbyte window in the upper memory address range of C800 to E000. You should ensure this dose not conflict with any other device's memory address. J13 control the memory address of Flash disk. DiskOnChip 2000 memory address DISABLE DC00* D800...
  • Page 30 If you install two drives, you will need to set one as the master and one as the slave by using jumpers on the drives. If you install just on drive, set it as the master. 22 PCM-5894 User's Manual...
  • Page 31 IDE hard drive connector IDE RESET DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 SIGNAL GND IO WRITE IO READ IO CHANNEL READY...
  • Page 32 When the slot is up, pin number one should be on the right. Check the documentation that came with the drive for more information. If you desire, connect the B: drive to the connectors in the middle of the cable as described above. 24 PCM-5894 User's Manual...
  • Page 33 Floppy drive connector DENSITY SELECT DRIVE TYPE INDEX MOTOR 0 DRIVE SELECT 1 DRIVE SELECT 2 MOTOR 1 DIRECTION STEP WRITE DATA WRITE GATE TRACK 0 WRITE PROTECT READ DATA HEAD DELECT DISK CHANGE Chapter 2 Installation 25...
  • Page 34 26-pin connector on one end and a DB-25 connector on the other. The mainbaord supports one parallel port. The port is designated as LPT1 and can be disabled or changed to LPT2 or LPT3 in the system BIOS setup. Parallel port connector \INIT \SLCTINI \ACK BUST SLCT 26 PCM-5894 User's Manual...
  • Page 35 The mainboard provides a keyboard connector which supports both a keyboard and a PS/2 style mouse. In most cases, especially in embedded applications, a keyboard is not used. The standard PC/AT BIOS will report an error or fail during power-on self test (POST) after a reset if the keyboard is not present.
  • Page 36 The mainboard can drive an 8W speaker at 0.5 watts. Ensure that alternatives to this specification do not overload the card. LED interface The front panel LED indicator for hard disk access is an active low signal (24 mA sink rate). 28 PCM-5894 User's Manual...
  • Page 37 (+5 V) and panel video signals are stable. Under normal operation the control signal (ENAVEE) is active high. When the PCM-5894's power is applied, the control signal is low until just after the relevant flat panel signals are present.
  • Page 38 Flat panel display connector +12 V +12 V +5V (or 3V) +5V (or 3V) ENAVEE SHFCLK ENABKL * Pin5 and Pin6 : 5V or 3V selected by J3 and J11. 30 PCM-5894 User's Manual...
  • Page 39 CN8 supplies secondary power to devices which require -5 V and -12 V power. Peripheral power connector -5 V -12 V CN/2 supplies main power to the mainboard (+5 V) and devices that require +12 V power. Main power connector +12 V Provides power supply to optional CPU cooling fan.
  • Page 40 RTSA TXDA CTSA DTRA N.C. COM2 DCDB DSRB(422RXD+) (422TXD-/485DATA-) RXDB RTSB(422RXD-) (422TXD+/485DATA+) TXDB CTSB DTRB N.C. COM3 DCDC DSRC RXDC RTSC TXDC CTSC DTRC RIC/+5V/+12V N.C. COM4 DCDD RSRD RXDD RTSD TXDD CTSD DTRD RID/+5V/+12V N.C. 32 PCM-5894 User's Manual...
  • Page 41 The serial port connectors are mounted on the right hand edge of the card. The 40-pin, dual-in-line, male header to the right of the card is for the RS-232 and RS-232/422/485 ports. IRQ Selection (J19) *COM3:IRQ5 and COM4:IRQ10 COM3:IRQ10 and COM4:IRQ5 *RS-232 RS-422 RS-485...

  • Page 42: Cmos Setup (J7)

    The COM3 and COM4 can supply +5V or +12V power to the serial devices via RI pin of the COM port connector. The outputs of COM3, COM4 RI pins are selected by setting J20, J21. CMOS setup Protect* Clear CMOS * default setting 34 PCM-5894 User's Manual...
  • Page 43 The mainboard's PCI SVGA interface can drive conventional CRT displays and is capable of driving a wide range of flat panel displays, including electroluminescent (EL), gas plasma, passive LCD and active LCD displays. The card has two connectors to support these displays, one for standard CRT VGA monitors and one for flat panel displays.
  • Page 44 LED-Rx connector LED-LINK connector 100/10BASE-T connects to the mainboard via an adapter cable to a 10-pin polarized header (CN14). For 100/10BASE-T RJ-45 operation, an adapter cable converting CN14 into a standard RJ- 45 jack is required. 36 PCM-5894 User's Manual...
  • Page 45 Ethernet 100/10BASE-T connector LANGND FRX+ FRX- CTN1 CTN1 CTN2 CTN2 FTX+ FTX- The Network Boot feature can be utilized by incorporating the Boot ROM image files for the appropriate network operating system. The Boot ROM BIOS files are on the included utility disk.
  • Page 46 You can connect your USB (Universal Serial Bus) devices to USB connector. With USB, there is no need to have separate connec- tors for keyboards, modems, and mice. USB provides a common interface for all your peripherals. UV1 - UV0 - UV1 + UV0 + 38 PCM-5894 User's Manual...

  • Page 47: Standard Cmos Setup

    AMIBIOS Setup configures system information that is stored in CMOS RAM. As POST executes, the following appears; Hit <DEL> if you want to run SETUP Press <DEL> to run AMIBIOS setup. The AMIBIOS setup screen appears as follows: AMIBIOS HIFLEX SETUP UTILITY — VERSION 1.16 (C) 1996 American Megatrends, Inc.
  • Page 48 The AMIBIOS Setup options described in this section are selected by choosing the Standard CMOS Setup from the AMIBIOS Setup main menu selection screen, as shown below. The Standard CMOS Setup screen appears: AMIBIOS SETUP — STANDARD CMOS SETUP (C) 1996 American Megatrends, Inc. All Rights Reserved Date (mm/dd/yyyy): Wed Aug 21, 1996 Base Memory : 640KB...
  • Page 49 Select the appropriate values to configure the hard disk type you are using for the master and the slave. The settings have not been pre-installed. Available types are 1~46, User, Auto, Not Installed and CDROM. Enabling this option allows the system to issue a warning when any program (or virus) issues a disk format command or attempts to write to the boot sector of the hard disk drive.
  • Page 50 Select the Advanced CMOS Setup from the AMIBIOS Setup main menu to enter Advanced setup. The Advanced Setup options described in this section are the standard options as shown on the following screen. The following configurations are based on Optiomal settings. AMIBIOS SETUP —...
  • Page 51 This option sets the sequence of boot drives (floppy drive A:, hard disk drive C:, or CD-ROM drive) that the AMIBIOS attempts to boot from after AMIBIOS POST completes. Set this option to Enabled to instruct AMIBIOS to boot quickly when the computer is powered on.
  • Page 52 Set this option to Enabled to permit drives A: or B: to be swapped. The settings are Enabled or Disabled. Set this option to Enabled to specify that floppy drive A: will perform a Seek operation at system boot. The settings are Enabled or Disabled.
  • Page 53 This option enables password checking every time the computer is powered on or every time AMIBIOS Setup is executed. If Always is chosen, a user password prompt appears every time the computer is turned on. If Setup is chosen, the password prompt appears as AMIBIOS is executed.
  • Page 54 When this option is set to Enabled, the contents of the F0000h system memory segment can be read from or written to L2 secondary cache memory. The contents of the F0000h memory segment are always copied from the BIOS ROM to system RAM for faster execution.
  • Page 55 Select the Advanced Chipset Setup from the AMIBIOS Setup main menu to enter the Chipset Setup. The following configura- tions are based on Optimal settings. AMIBIOS SETUP — ADVANCED CHIPSET SETUP (C) 1996 American Megatrends, Inc. All Rights Reserved DRAM Automatic Configuration Enabled Available Options: SDRAM Access Time...
  • Page 56 Set this option to Enabled to allow write instructions to be combined in PCI Burst mode. The settings are Enabled or Disabled. This option allows the end user to specify the location of a memory hole. Set this option Enabled to enable the system BIOS USB (Univer- sal Serial Bus) functions.
  • Page 57 The POWER MANAGEMENT SETUP allows you to configure your system for the most effective use of energy while operating in a manner consistant with your own style of computer use. The following configurations are based on Optimal settings. AMIBIOS SETUP — POWER MANAGEMENT SETUP (C) 1996 American Megatrends, Inc.
  • Page 58 This option specifies the power conserving state that the VESA VGA video subsystem enters after the specified period of display inactivity has expired. The settings are Disabled, Standby, or Suspend. This option specifies the power conserving state that the hard disk drive enters after the specified period of hard drive inactivity has expired.
  • Page 59 IRQ3 (COM2/COM4) IRQ4 (COM1/COM3) IRQ5 (LPT2) IRQ7 (LPT1) IRQ9 IRQ10 IRQ11 IRQ12 (PS2 Mouse) IRQ13 (Math Corpocessor) IRQ14 IRQ15 This option specifies if AMIBIOS is to monitor display activity for power conservation purposes. When this option is set to Monitor and there is no display activity for the length of time specified in the Standby Timeout (Minute) option, the comput- er enters a power savings state.
  • Page 60 This section describes configuring the PCI bus system and covers some very technical items. It is STRONGLY RECOMMENDED that only experienced users should make any changes to the default settings. .AMIBIOS SETUP — PCI / PLUG AND PLAY SETUP (C) 1996 American Megatrends, Inc. All Rights Reserved Plug and Play Aware O/S Available Options: Clear NVRAM...
  • Page 61 Set this option to Yes if the operating system installed in the computer is Plug and Play-aware. AMIBIOS only detects and enables PnP ISA adapter cards that are required for system boot. The Windows 95 operating system detects and enables all other PnP-aware adapter cards.
  • Page 62 This option specifies if an offboard PCI IDE controller adapter card is used in the computer. You must also specify the PCI expansion slot on the motherboard where the offboard PCI IDE controller card is installed. If an offboard PCI IDE controller is used, the onboard IDE controller on the motherboard is automati- cally disabled.
  • Page 63 DMA Channel 0 DMA Channel 1 DMA Channel 3 DMA Channel 5 DMA Channel 6 DMA Channel 7 This item allows you to determine the specified DMA Channel assigned to the ISA/EISA bus, or configured as Plug and Play (PnP). IRQ3 IRQ4 IRQ5...
  • Page 64 This option specifies the beginning address (in hex) of the reserved memory area. The specified ROM memory area is reserved for use by legacy ISA adapter cards. The settings are C0000, C4000, C8000, CC000, D0000, D4000, D8000, or DC000.
  • Page 65 To access Periperal Setup, select the Periperal icon in the AMIBIOS main menu. The following screen appears AMIBIOS SETUP — PERIPHERAL SETUP (C) 1996 American Megatrends, Inc. All Rights Reserved OnBoard FDC AUTO Available Options OnBoard Serial Port 1 AUTO Auto OnBoard Serial Port 2 AUTO...
  • Page 66 This options specifies the base I/O port address of series port4. The settings are Auto, Disable, 3F8h, 2F8h, or 3E8h. This option specifies the serial port mode. The settings are Normal, Bi-Dir, EPP, ECP. This option specifies the base I/O port address of Ir Port. The setting are Auto, Disable, 3F8h, 2F8h, or 3E8h.
  • Page 67 This option enables the parallel port on the motherboard and specifies the parallel port base I/O port address. The settings are Auto, Disabled, 378h, 278h, 3BCh. This option specifies the parallel port mode. ECP and EPP are both bidirectional data transfer sechemes that adhere to the IEEE P1284 specification.
  • Page 68 The "IDE HDD AUTO DETECTION" utility can automatically detect the IDE hard disk installed in your system. You can use it to self-detect and/or correct the hard disk type configuration. AMIBIOS SETUP — STANDARD CMOS SETUP (C) 1996 American Megatrends, Inc. All Rights Reserved Date (mm/dd/yyyy): Wed Aug 21, 1996 Base Memory : 640KB...
  • Page 69 You can load the optimal default settings for the AMIBOIS setup options by selecting it from the main menu. The optimal default settings are best case values that should optimize system perfor- mance. You can load the Fail Safe setting for the AMIBOIS setup options by selecting it from the main menu.
  • Page 70 This chapter provides information about: • Driver types and installation...
  • Page 71 This chapter describes the operation and installation of the software drivers supplied on the Display Driver Diskettes that are shipped with your VGA adapter. Your VGA adapter is based on the CHIPS VGA Flat Panel/CRT controller and is fully IBM VGA compatible. This controller offers a large set of extended functions and higher resolutions.
  • Page 72 The instructions in this manual assume that you understand elementa- ry concepts of MS-DOS and the IBM Personal Computer. Before you attempt to install any driver or utility, you should: • Know how to copy files from a floppy disk to a directory on the hard disk •...
  • Page 73 Ô Ô Ô Ô Ô Ò These drivers are designed to work with Microsonft WindowsÔ. You just install these drivers through the WindowsÔ operating system. 1. Install WindowsÔ 95 as you normally would for a VGA display. Click the Start button, go to Settings and click on Control Panel.
  • Page 74 Ô Ô Ô Ô Ô These drivers are designed to work with Microsoft Windows Version 3.1. You should install these drivers through Windows. 1. Install Windows as you normally would for a VGA display. Run Windows to make sure that it is working correctly. 2.
  • Page 75 These drivers are designed to function with the OS/2 Version 4.0, 3.0 and 2.11 operating systems. To install this driver, do the following steps: 1. Open an OS/2 full screen or windowed session. 2. Place the 65554 Display Driver diskette in drive A. 3.
  • Page 76 6. When the installation is complete, you will need to shutdown and then restart the system for the changes to take effect. Make sure to remove the install diskette before restarting the system.
  • Page 77 Ô Ô Ô Ô Ô Ò These drivers are designed to work with Microsonft WindowsÔ. 1. Install WindowsÔ NT3.51 as you normally would for a VGA display. Run WindowsÔ NT Control Panel from the Main Group. Choose the Display option. In the Display Settings dialog box, click on Change Display Type.
  • Page 78 1. Install Windows NT4.0 as you normally would for a VGA display. First click the Start button, go to Settings and click on Control Panel. Choose the Display icon and click on the icon. In the Display Properties window, click on the Settings tab. Then click on Change Display Type.
  • Page 80 The content of this chapter includes SiS 5598 VGA Driver installation.
  • Page 81 This section describes system requirements for the SiS 5598 VGA Driver installationn and usage. 1. The hardware system must contain a SiS 5598 chipset. 2. Mouse is optional. 3. The SiS 5598 VGA BIOS must be newer than Version 1.01. 1.
  • Page 82 2. How to Use? To use SVGAUTL.EXE, (1) Type "SVGAUTL" in the directory where it resides. For example, A:\>SVGAUTL <Enter> (suppose SVGAUTL.EXE resides in DOS Driver Diskette) (2) The Main Menu would appear and direct you to configure SiS 5597/5598. (3) When you complete configuration, you may save your prefer ences to "AUTOEXEC.BAT file and use it as your power-on (or hardware reset) default environment.
  • Page 83 /F2: For 1024x768, set frame rate to be n2 Hz. Four availabe frame rates are 87 (Interlace), 60, 70, and 75 Hz. For example : Set 1024x768 graphic mode with 60Hz frame rate. >SVGAUTL /F2:60 <Enter> /F3: For 1280x1024, set frame rate to be n3 Hz. Two availabe frame rates are 87 (Interlace) and 60 Hz.
  • Page 84 Windows NT 3.5x display drivers Installation: 1. Select Control Panel from Main group. 2. Select Display icon. 3. Select Change Display Type from Display Settings. 4. Select Change from Display Type. 5. Select Other from Select Device. 6. Place the Windows NT 3.5x Installation Disk into Floppy Drive. 7.
  • Page 85 Selecting resolution and color depth: 1. Select Control Panel from Main group. 2. Select Display icon. 3. Select Color Palette to change between 16 colors, 256 colors, 32768 colors, 65536 colors, and 16777216 colors. 4. To select desktop resolution size, go to the Desktop area and use the slide bar to change resolution from 640x480, 800x600, 1024x768, and 1280x1024.
  • Page 86 9. When the "Change Display" dialog box appears, click "OK". 10.When the "Third-party Drivers" dialog box appears, click "Yes". A message will appear stating that the drivers weresuccessfully installed. Click "OK". You must now restart Windows NT 4.0. 1. Click "Start" menu and select Control Panel from Settings group. 2.
  • Page 87 Windows 95 (Display Driver Installation) 1. Click "Start" menu and select Control Panel from Settings group. 2. Select "Display" icon. 3. Select "Settings" index in the display properties sheet. 4. Select "Change Display Type" button. 5. Select "Change..." button in "Adapter Type" group. 6.
  • Page 88 Selecting resolution, color depth, and refresh rate: 1. Click "Start" menu and select Control Panel from Settings group. 2. Select Display icon. 3. Select Settings. 4. Select Color Palette to change between 16 color, 256 color, Hi color, and True color. 5.
  • Page 89 Windows 3.x (Display Driver and Utility Installation) 1. Installation (1)Click "File" menu and select "Run..." menu item. (2)In "Run" dialog, typing the source execution file then press "OK". The execution file in Win31 Drive Diskette is at "A:\SETUP.EXE". The execution file in CD-Title is at "D:\MM\WIN31\SETUP.EXE".
  • Page 90 (4)Choose "Restart Windows" to re-boot Windows using new settings. Or, choose "Continue" your current Windows pro cesses. (But when you re-boot Windows, the new settings would take effect.) 3. Power Saving Setup in Windows (1)In "SiS VGA Configuration System" screen, choose "power saver"...
  • Page 91 OS2 V2.1 Display Driver Installation 1. Before installing SiS OS/2 V2.1 display driver, start up OS/2 system in standard VGA mode. 2. Select "Command Prompt" folder. 3. Select "OS/2 window" or "OS/2 full screen" icon. 4. Place the SiS OS/2 V2.1 display driver installation Disk into Floppy Drive.
  • Page 92 7. Setup procedure will create a "SiS Install" icon on the desktop. 8. Shutdown and reboot the OS/2 Warp system. 9. When system reboot, double click the "SiS Install" icon. It will perform the further installation. 10.When the "Select Screen Parameters for SiS SVGA" dialog appears, select the resolution, color depth and frame rate you would like, then click "OK"...
  • Page 93 OS2 Warp Display Driver Installation (For SBCS version) 1. Before installing SiS OS/2 Warp display driver, start up OS/2 system in standard VGA mode. 2. Select "Command Prompts" folder. 3. Select "OS/2 window" or "OS/2 full screen" icon. 4. Place the SiS OS/2 Warp display driver installation Disk into Floppy Drive.
  • Page 94 This chapter details the Ethernet software configuration information. It shows you how to configure the card to match your applicaion requirements.
  • Page 95 The mainboard on-board Ethernet interface supports all major network operating systems. I/O addresses and interrupts are easily configured via the BIOS Setup. To configure the medium type, to view the current configuration, or to run diagnostics, do the follow- ing: 1.
  • Page 96 The mainboard is equipped with a watchdog timer that resets the CPU or generates an interrupt if processing comes to a standstill for whatever reason. This feature ensures system reliability in industrial stand-alone and unmanned environments.
  • Page 97 An on-board watchdog timer reduces the chance of disruptions which EMP (electro-magnetic pulse) interference can cause. This is an invaluable protective device for standalone or un- manned applications. When the watchdog timer activates(CPU processing has come to a halt), it can reset the system, or generate an interrupt on IRQ10, IRQ11, IRQ15, NMI.
  • Page 98 The following procedure is a sample program for the watchdog timer: • Type C:\DOS\Debug <ENTER> • To start watchdog timer and set function "Reset" type; o 444 0 <Enter>; out 444h data 0 • To input watchdog timers time-out interval of 3 minutes type; o 443 83 <Enter>;...
  • Page 100 This appendix gives instructions for installing PC/104 modules. Appendix B Installing PC/104 Modules...
  • Page 101 4. Mount the PC/104 module onto the mainboard by pressing the module firmly but carefully onto the mounting connectors. 5. Secure the PC/104 module onto the mainboard using the four mounting spacers and srews. 94 PCM-5894 User's Manual...
  • Page 102 PC/104 Mounting Support Female Male Mainboard PC/104 Module PC/104 Module Mounting Diagram 0.300 3.250 3.775 3.575 3.575 0.200 0.200 3.350 0 0.200 3.550 PC/104 module dimensions (inches ±5 %) Appendix B Installing PC/104 Modules...
  • Page 103 96 PCM-5894 User's Manual...
  • Page 104 Appendix C Optional Extras...
  • Page 105 , t r n i p 4 5 . t r o The PCI interface riser card is available. You can add many accessories and components to the mainboard. For further information, please contact our sales department 98 PCM-5894 User's Manual...
