Summary of Contents for NEAT Electronics DOOR
-

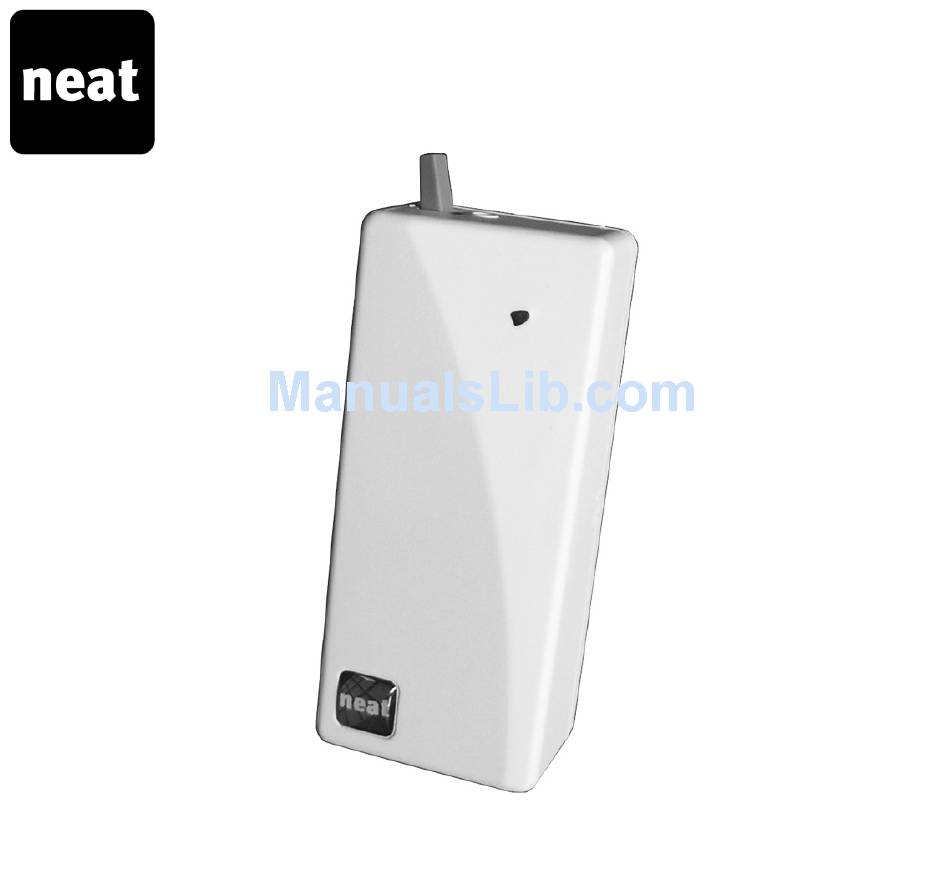

Page 1: User Guide
User Guide DOOR Door Alarm... -
Page 2: Table Of Contents
Alarm Delay at Out Passage ............ 8 Configuration ................ 8 Special Functions ..............9 Connect DOOR to Portable Receiver TREX .......10 Connect DOOR to Home Care Phone NEO ........10 Declaration of Conformity ............11 © NEAT Electronics AB 2008 Document number NE41 07003-02 v1.1... -
Page 3: Important Information
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be returned to NEAT Electronics for recycling. The recycling of materials will prevent negative consequences for the environment, human health and help to conserve natural... -
Page 4: Overview
Overview power switch magnet shall be within this area then adhesives for door is closed mounting on door or wall magnet center mark magnet... - Page 5 Overview jumper batteries connector for external sensor close lid using mounting holes supplied screw...
-
Page 6: Installation
5. Turn on the power switch. 6. Connect the door alarm to an alarm receiver as described on page 10 in this manual. -
Page 7: Mounting Instructions
4: sensor input Functionality DOOR sends a radio alarm as soon as the door is opened. A new alarm is not sent until the door has been closed and is opened a second time. When an alarm is transmitted, the LED on DOOR lights up with a steady red light during up to four seconds. -
Page 8: Alarm Delay At In Passage
If the in passage delay is enabled, DOOR waits five seconds before sending an alarm when the door is opened. During this time, the LED on DOOR blinks with red light. If the power switch is turned off when the LED is blinking, no alarm will be sent. -
Page 9: Special Functions
DOOR with these functions acitvated. Auto Reset Timeout It is possible to configure DOOR with an auto reset timeout for the external alarm sensor. When the external sensor is activated, DOOR waits during the auto reset time before sending an alarm. If the alarm sensor is activated a shorter time than the auto reset time, no alarm will be sent. -
Page 10: Connect Door To Portable Receiver Trex
TREX. 2. Open the door that the door alarm is mounted on. 3. The LED on DOOR lights up with a steady red light to indicate that the radio code is transmitted. The TREX beeps to indicate that a radio code is received. -
Page 11: Declaration Of Conformity
Declaration of Conformity We NEAT Electronics AB, Varuvägen 2, 246 42 Löddeköpinge, declare under our sole responsibility that our product DOOR, NE10 07028-01, is in conformity with the directives 1999/5/CE, 73/23/CE and 89/336/CEE and conforms to the standards: Safety: EN 60950-1:2001 EMC: EN 301489-3 v1.4.1 Class I... - Page 12 NEAT Electronics AB Varuvägen 2 246 42 Löddeköpinge SWEDEN...
