IHP H8863 WS-S-TMR Installation And Operation Instructions

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT
INTRODUCTION
This remote Wireless Wall Timer system was developed to provide safe, reliable, and user-friendly remote control system for gas
heating appliances. The system can be operated manually from the transmitter. The system operates on one of 65,536 security codes
that are programmed into the transmitter at the factory.

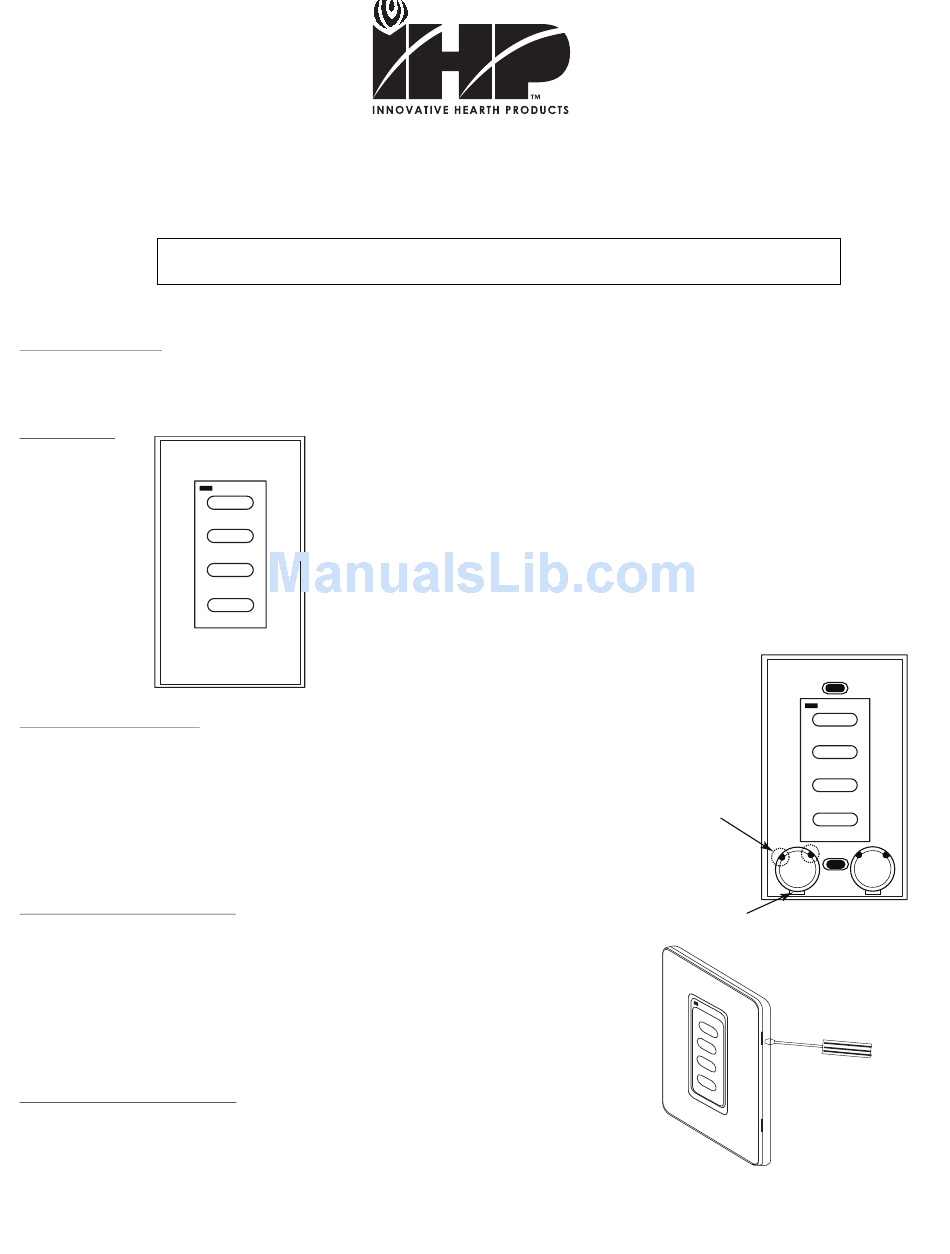

WALL TIMER

TO INSTALL BATTERIES

1. Remove face from backing plate by insetting a small screwdriver into the small slot
at the top or bottom of the faceplate as shown below then snap OFF.
2. Locate the (2) holders for the 3V button cell batteries.
3. Place the button cell batteries into the battery holders (metal tabs) and snap into place.
(Make sure that the batteries are installed with the (+) plus side as shown to the right.
4. After the batteries are installed replace the faceplate on the base.

TO REMOVE THE BATTERIES

1. Remove face from backing plate by insetting a small screwdriver into the small slot
on the side at the top or bottom of the faceplate as shown to the right then snap OFF.
2. Locate the (2) holders for the 3V button cell batteries.
3. Insert a small screwdriver into the slot at the button cell battery and pop the
battery out (Slots shown in picture above).
4. After the batteries are installed replace the faceplate.
Wall Mounting THE TIMER
1. Remove face from backing plate by insetting a small screwdriver into the small
slot at the top or bottom of the faceplate as shown to the right then snap OFF.
___________________________________________________________________________________________________________
IHP: WS-S-TMR
Cat. No. H8863
Installation AND OPERATION INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
30 MIN.
60 MIN.
120 MIN.
OFF
Model: WS-S-TMR
The wall timer operates on a (2) 3V button cell batteries (included) made
specifically for remote controls and electronic lighters. Before using the wall
transmitter, install the two (2) 3V button cell batteries. Follow instructions below.
The wall timer has a 30 min, 60 min, 120 min, and OFF buttons. When any of the
buttons on the wall timer is pressed, a signal light on the wall timer illuminates
briefly to verify that a signal has been sent. If the signal light does not illuminate,
check the batteries. Upon initial use, there may be a delay of five seconds before
the remote receiver will respond to the wall timer.
P/N 900260-00 Rev. A
30 MIN.
60 MIN.
Insert batteries
under metal tabs
120 MIN.
and snap into
place.
OFF
+
Plus
Side
Insert small screw-
driver into slot to
remove batteries
Insert small screwdriver
into slot at the top or bottom
and pop cover off
3 0
6 0
1 2
0
O F
F
REV 3/18/14 Page 1 of 5
+
Plus
Side
