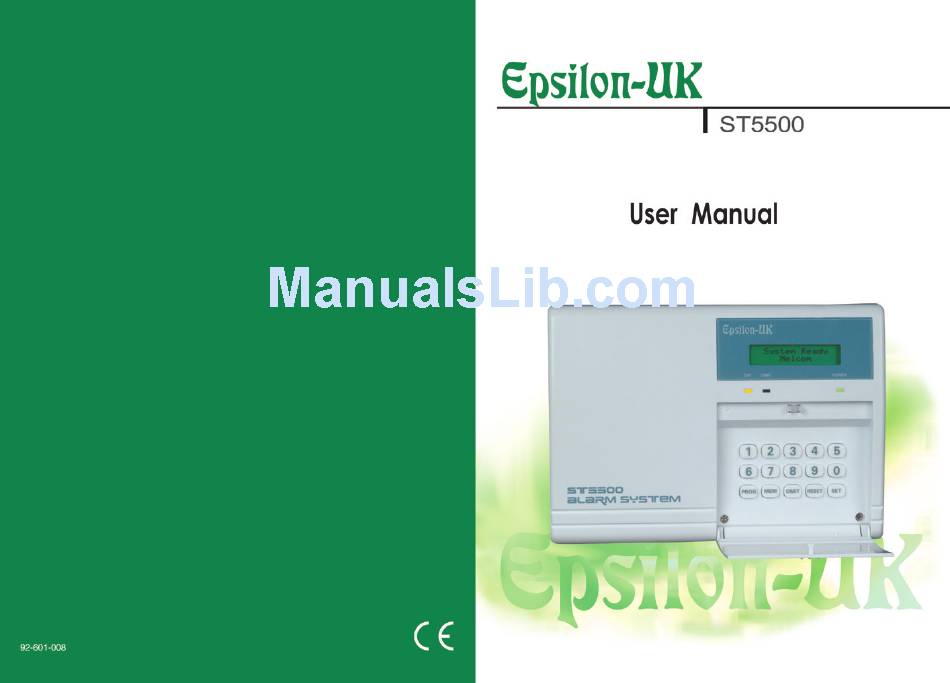

Summary of Contents for Epsilon-UK ST5500
-
Page 2: Table Of Contents
CONTENTS Page No. Section 1.00 Introduction 1.01 ST5500 Control Panel 1.02 K6600 LCD Remote Keypad 1.03 SL6600 Sleep Watch Remote Keypad 1.04 AD1000 Voice Dialer 2.00 User Operation 2.01 Day (Off) Mode 2.02 Full Guard Arming 2.03 Part Guard Arming Option 1 2.04... -
Page 3: Introduction
This booklet is designed to explain in more detail, the operation of your control panel and how to re-program the user options. 1.01 ST5500 Control Panel The ST5500 control panel as 5 zones, one of which is dedicated as a Tamper zone. -
Page 4: Sl6600 Sleep Watch Remote Keypad
Up to six SL6600 Sleep Watch remote keypads can be fitted to any ST5500 con- trol panel. 1.05 AD1000 Voice Dialer The AD1000 Voice Dialer can be con- nected to the ST5500 control panel. -
Page 5: User Operation
Make sure all zones and P.A. (Panic Alarm) loops are closed. The control panel will not switch to the armed mode if they are open. Full Guard Arming is indicated by the internal speaker beeping during exit time count down. ST5500 & K6600 LCD Display To arm the system enter a valid user code:... -
Page 6: Part Guard Arming Option
2.03 Part Guard Arming Option 1 PART GUARD means that the system is only armed in pre-set zones, allowing you to oc- cupy or pass through the unarmed zones. This is normally used for night-time setting of the alarm system to isolate the bedrooms. Enter a Valid User Code and press SET within 5 seconds. -
Page 7: Omitting Zones Part Guard
2.05 Omitting Zones Part Guard You might wish to Omit Zones in Part Guard before arming the system. For example, you can omit the zone that protects the kitchen. Enter a Valid User Code and press OMIT, enter zone number, press OMIT and SET. Example: Omit Zone 6 . -
Page 8: Disarming System Using Keypad
2.07 Disarming System Using Keypad When returning to the premises, enter via the ENTRY/EXIT Zone. This will activate the en- try tone for length of ENTRY time as programmed by your installation engineer. To prevent the activation of the alarm before the elapse of the ENTRY time, you must enter any valid user code. -
Page 9: Arming & Disarming Part Guard Option
2.09 Arming & Disarming Part Guard Option 2 If your system is fitted with a SL6600 sleep watch keypad, the system can be part guard armed and disarmed by using this keypad providing that this function has been enabled by your installer for 3 seconds key illuminates green and System Armed... -
Page 10: Silencing Panic Alarm Activation
2.12 Silencing Panic Alarm Activation If your system is fitted with sleep watch remote keypads , push panic button and has been activated by pressing the button or entering the panic keypad alarm sequence, enter a valid user code and press reset to silence the alarm. Day LED Alarm Enter:... -
Page 11: Displaying Faulted Zones
2.14 Displaying Faulted Zones If a zone is found to be in fault, this is indicated by the day LED flashing. To check which zone is in fault enter a valid user code and note which zone LCD is displayed. A tamper fault is indicated immediately on the LCD Display. -
Page 12: User Programming Section
3.00 User Programming Section You can adjust several control panel settings by entering User Programming MODE. To enter user programming from Day Mode press PROG and enter your Master User Code: Press: PROG All Red LEDs illuminate. User Enter: Programming You are now in user programming mode, follow the instructions to make any changes allowable under user programming. -
Page 13: Setting Secure Zones
3.03 Enable User Code 6 User code 6 is unable to disarm secure zones. This is useful if you have a cleaner , whom you do not want to enter any particular area. To enable user code 6 from user programming mode: Enter New Code Press: User 6... -
Page 14: Setting Chime Zones
3.05 Setting Chime Zones If a zone programmed as a chime is activated in day mode, the internal siren and K6600 LCD remote keypad will beep to indicate activation of that zone. This allows you to monitor children or people in your premises or home. To set chime zones from user programming mode: Chime Zone Press:... -
Page 15: System Test
4.00 System Test It is recommended that you test the system once a week to ensure that it is working correctly. To test the system: ST5500 & K6600 Press: PROG All Red LEDs illuminate. LCD DISPLAY User Master Enter: Programming... -
Page 16: Quick User Reference Guide
4.01 QUICK USER REFERENCE GUIDE Full Guard Arming Option 1 Enter User Code Leave premises via exit route # Full Arming Guard Option 2 Leave premises via Press: SET 3 seconds exit route Part Guard Arming Option 1 Leave to none pro- Enter User Code Press: SET tected area of building # Part Guard Arming Option 2... -
Page 17: User Programming Notes
4.02 USER PROGRAMMING NOTES Function Factory Settings User Settings Master User Code 1 2 3 4 User Code 2 Disabled User Code 3 Disabled User Code 4 Disabled User Code 5 Disabled User Code 6 Disabled Secure Zones Zone 1 Clear Zone 2 Clear... -
Page 18: Fault Indications
Keypad Accepts Personal Attack Panic button not reset, also press No Presses RESET button on ST5500. Keypad Accepts Keypad Tamper Activated Wait 2 minutes and try again. If no No Presses correct code entered after 3 at- tempts the keypad stops working for 2 minutes.
