Lites

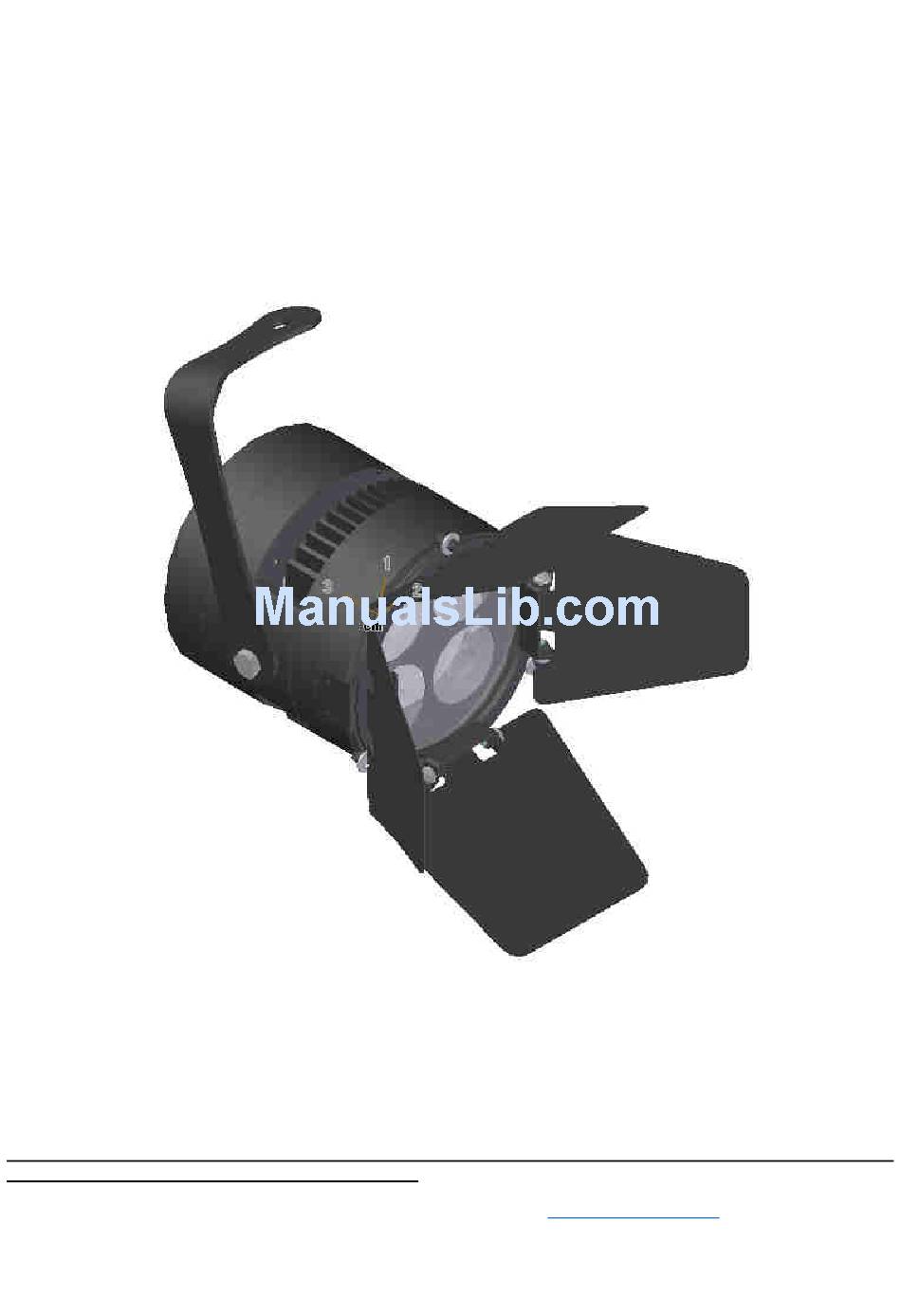

Lites 4
Owner's and service manual
Read this manual totally and carefully follow all the instructions contained. File this manual for future
use.It is essential to read all the information contained to ensure installation, service and full operation
of the Lites 4. Operations must be accomplished, handled and carried out by qualified personnel only
NOT COMPLYNIG WITH GIVEN NOTICE WILL VOID WARRANTY AND WILL FREE THE MANUFACTURER OF
ANY SORT OF RESPONSABILITY AND LIABILITY.
http://www.litessrl.com -
www.ilites.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lites4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lites Lites4

  • Page 1 Lites 4. Operations must be accomplished, handled and carried out by qualified personnel only NOT COMPLYNIG WITH GIVEN NOTICE WILL VOID WARRANTY AND WILL FREE THE MANUFACTURER OF ANY SORT OF RESPONSABILITY AND LIABILITY.

  • Page 2: Warranty

    Unpack the carton and gently remove Lites 4 from the box. Ensure Lites 4 is received in all its parts. In the event the lites 4 shows any damage, do not use it and contact immediately your transporter as well as your seller.
  • Page 3 Technical specifications Power Supply: 100/240V̴ ~ 50/60Hz (autosetting) Maximum power consumption: 65W 4x15 W RGBW Ostar LED Stand-by power consumption: 4W Cos Ø 0,95 Optional angles “Gaggione collimators”: 8°/20°/30° (specify when ordering) Minimum ambient temperature: -15°C Maximum ambient temperature: 35°C Maximum body temperature: 70°C Net weight: Kg 1,6 M8 yoke screw (tighten using a 13mm spanner)
  • Page 4 Lites4 installation Lites4 is delivered with a yoke with a 11mm drilled hole; utilize either a suitable M10 screw or an appropriate G- clamp to sustain/install the Lites4; Ensure G-Clamp can bear 4 times the weight of the Lites4 and always secure Lites4 with safety /chain/cord using the provided ring.
  • Page 5 Lites4 is delivered with a 1,8 mt cable and fitted with Shuko plug. Always and only connect lites4 mains with safety circuit braker. Lites4 is a class 1 fxture therefore earth connection is mandatory.
  • Page 6 9 Master Mode MaSL Same procedures & features as in the “Auto Mode” except when Lites4s are connected to daisy- chain mode. All slave Lites4s follow features off the Lites4 Master set to DMX001 0.rG7 (D) RGBW 7 ch 1.r7b RGBW 7 ch (compatible mode) 2.Ch1...
  • Page 7 DMX Channel assignements 7 modes available to operate Lites4 as well as each associated channel mode 0.RGBW 7 ch (default) dmx levels Function 0..255 From 0 to max 255 green 0..255 From 0 to max 255 blue 0..255 From 0 to max 255 white 0..255...

  • Page 8: Periodical Maintenance

    Do not touch nor clean the LED iwith solvent Device disposal information At the end of its life, Lites4 must be disposed to an appropriate electrical and electronic equipment waste collection centre. Eco-friendly disposal, helps to avoid possible negative impact on the environment and human health and promotes the reuse and/or recycling of the materials making up the product.
