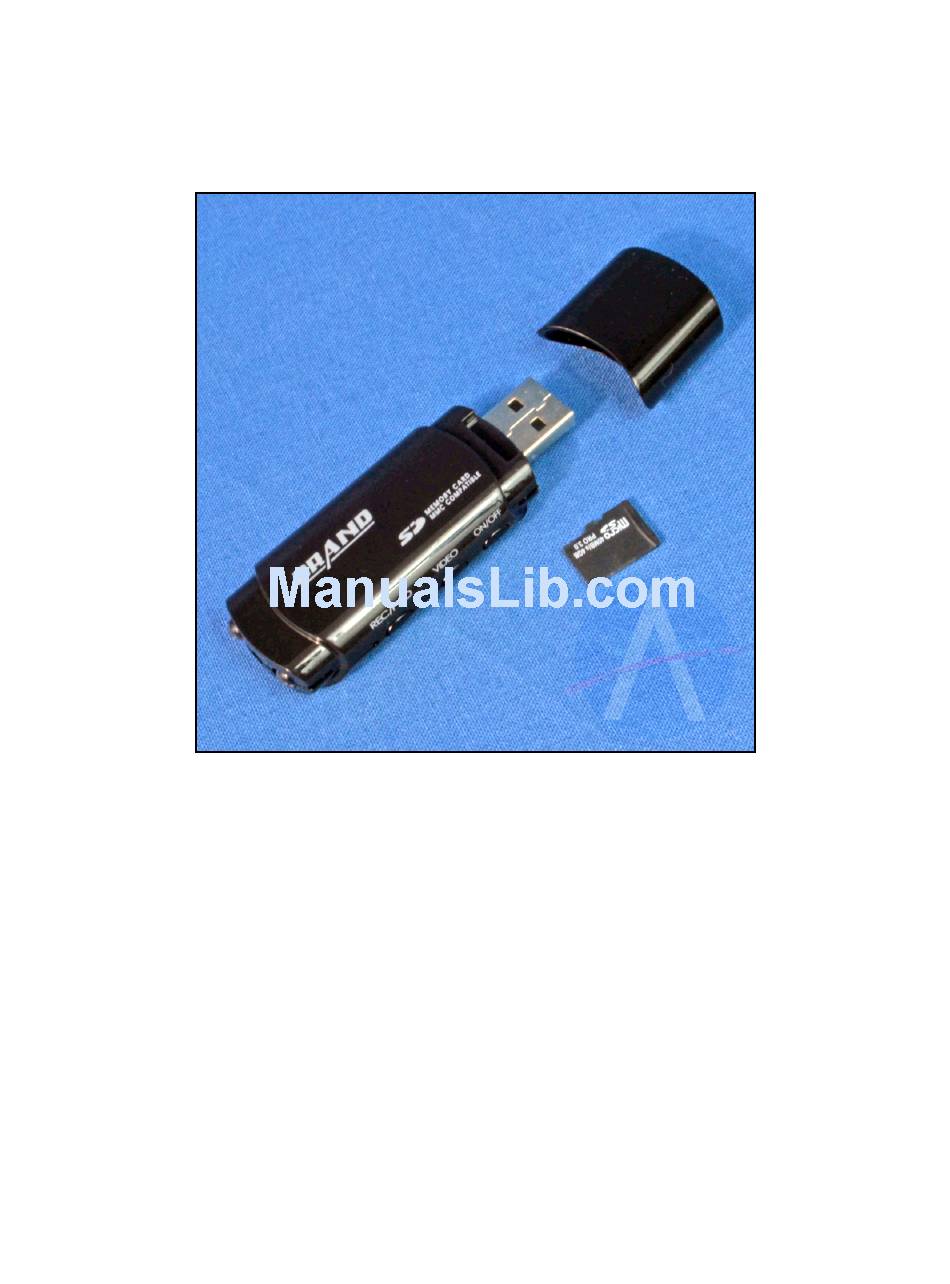

The inexpensive HD video camera that works great on model rockets!

Features:

• It has a small contour design, which easily attaches to the side of a model rocket.
• Saves video files in AVI video format.
• Can record under low illumination conditions.
• Video records at 30 fps and has an image size of 1920 X 1080 pixels
• Supports USB1.1 and USB2.0.
• Contains a 4GB memory Card, and can support up to 32GB T-flash cards.
• Built-in lithium battery, which can take a video of up to 120 minutes
• Motion detection capability, so it doesn't record video when nothing in the field of view changes.
• Its two infrared lights allows for stealthy video recording under low illumination conditions.
NOTE: This is an incomplete instruction manual. At this time, we don't know how to access all the func-
tions. If you can help, please send your observations about the camera to Tim Van Milligan at ts.vm@
ApogeeRocketscom
U-838 HD Video Camera

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-838 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Apogee U-838

  • Page 1: User Manual

    U-838 HD Video Camera User Manual The inexpensive HD video camera that works great on model rockets! Features: • It has a small contour design, which easily attaches to the side of a model rocket. • Saves video files in AVI video format.
  • Page 2: Overview

    Operation Guide 1. Charging the Battery A) The battery in the U-838 HD video camera is a built-in lithium rechargeable battery. You should recharge it before using the camera. The method for charging is: Connect the U-838 HD video camera to your computer using the USB plug on the end of the unit.
  • Page 3: To Make Voice Memo

    Then press and HOLD the “ON/OFF” button for a minimum of two seconds. The indicator LED on the U-838 will quickly blink 5 times and then the light will become steady as you hold the button. As soon as you release the button, the U-838 HD video camera will be off.
  • Page 4: To Turn On/Off Infrared Lights

    To stop recording sound, momentary (quick) press the “REC/PHO” button. The LED will return to a solid/steady light, and the U-838 is back in stand-by mode. The file is stored to memory as a .WAV file. To reenter the audio recording, you have to press and hold the “REC/PHO” button for three seconds. If you do a momentary press, it will just take a still photo.
  • Page 5 12. Mounting Options Because it is such a lightweight camera, you can use strong electrical tape or duct tape to hold the U-838 HD video camera onto your rocket. Be sure not to cover up the operation buttons or the lens of the de- vice.
