Summary of Contents for Blick APG1

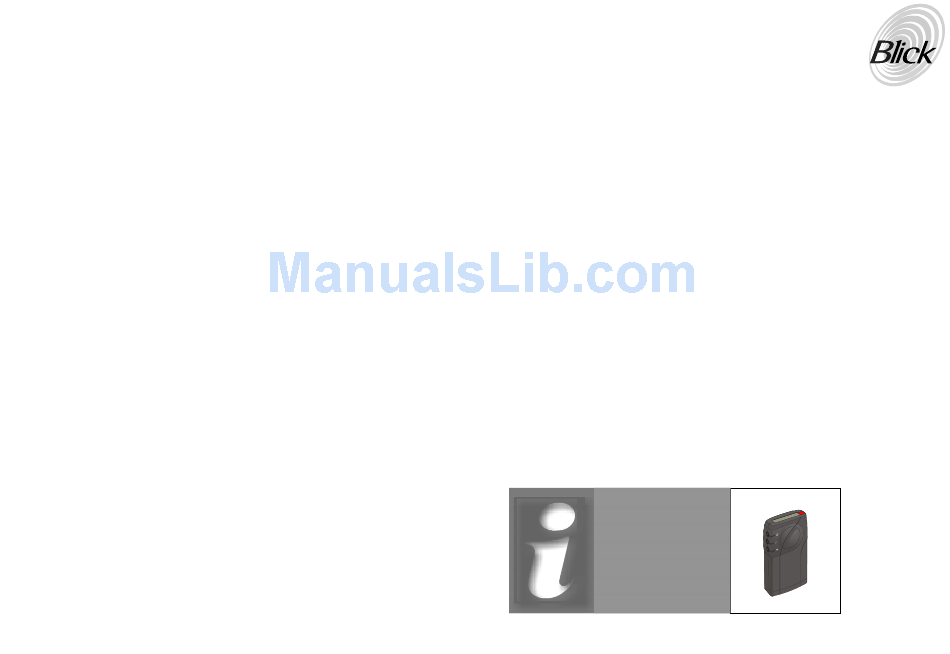

- Page 1 userguide Intrinsically safe pager, type APG7...
-
Page 2: Table Of Contents
Out of range To review and delete stored messages Battery option, alkaline, Block message review Individual message review Blick Pt.No. 151015 must be fitted User selectable functions Temperature rating: To configure your pager To replace the clip Glossary of paging terms... -
Page 3: Introduction

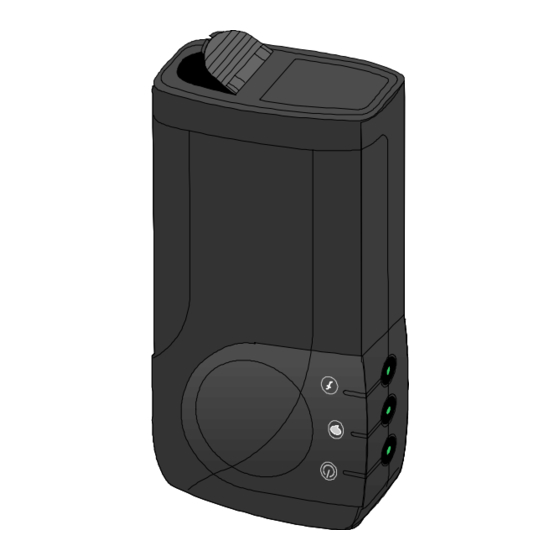

Introduction How to use this guide APG1 and APG2 pagers are designed for use in both on-site and wide area paging systems. The To perform the required task simply follow the paragraphs in the left column. robust plastic case is fitted with a removable clip that allows the pager to be worn on a belt or in a pocket. -
Page 4: Pager Controls
information information If your pager shows: NO CODES..The function button You will need to program it with an Identity Code before it can be used. When your pager was configured a number of ‘user selectable’ functions were enabled. You can access these Please refer to your supplier for details. -
Page 5: To Use Your Pager
information information To use your pager Press and hold button until the top display shows the IMPORTANT: pager's current Individual Code . Release the button. BEFORE PROGRAMMING YOUR To receive paging calls PAGER PLEASE ENSURE THAT YOU FIT A NEW OR FULLY CHARGED BATTERY. -
Page 6: Low Battery
information information Low battery To view the messages press and hold until the last If you wish to pause the display message is displayed. Release the button. The pager will press and hold display all the messages in sequence. When is displayed you must replace or The number of each message is recharge (as appropriate) the battery as soon as possible. -
Page 7: User Selectable Functions
information information User selectable functions Message review method This screen will allow you to choose To change the setting of a function message review facility. Select a press whilst it is shown on the tick to use BLOCK MESSAGE review (select individual) (select block) You can customise some of the functions of your pager to suit... - Page 8 IMPORTANT: Please ensure that the Wait until the display shows coding formats. Format C is the battery is fully charged default Blick setting. A and B can (rechargeable) or new (disposable) be used for specific systems (please before programming the identity...
- Page 9 information information Continued from previous page To add a Group Code press while it is displayed. then, after a short while, the first 8 function codes Block 1 position: (shown in the table). for example, 1 = E, D, N, F, G, I (Language) 2 = S (Silent) 3 = R (Range) Send a programming call for the new code from the...
- Page 10 information information Continued from previous page IMPORTANT FORMAT is an engineering function and is normally set in the factory. FORMAT The format letter shown MUST Send a programming call for the required Individual correspond to the format setting in This will save the settings. the system encoder.
-
Page 11: To Replace The Clip
information information To enter the open channel mode Open channel is a diagnostic mode that allows the pager to display To fit the new clip hold it 90° to the pager case and information from all transmitted insert it into the aperture. calls. -
Page 12: Glossary Of Paging Terms
Glossary of paging terms Bleep Used to describe the sound made by a pager when called (also bleep- tone, bleep-sound). Group Code A number shared between pagers allowing them to be called simultaneously. Individual Code A number representing the unique identity of a pager allowing it to be called selectively. - Page 13 Blick Communications Limited 15 Cofton Road www.blickcommunications.com EXETER Tel: 01392 204100 International tel: +44 13 92 20 41 00 Devon FAX: 01392 204170 International FAX: +44 13 92 20 41 70 England EX2 8QW Issue 3 Part number 010696...
