Title : Print Server Installation Guide
Contents :

1. Before installation.

1.1
Please install LTT printer driver in the computer.
1.2
The following instruction works for XP/Windows 7.
1.3

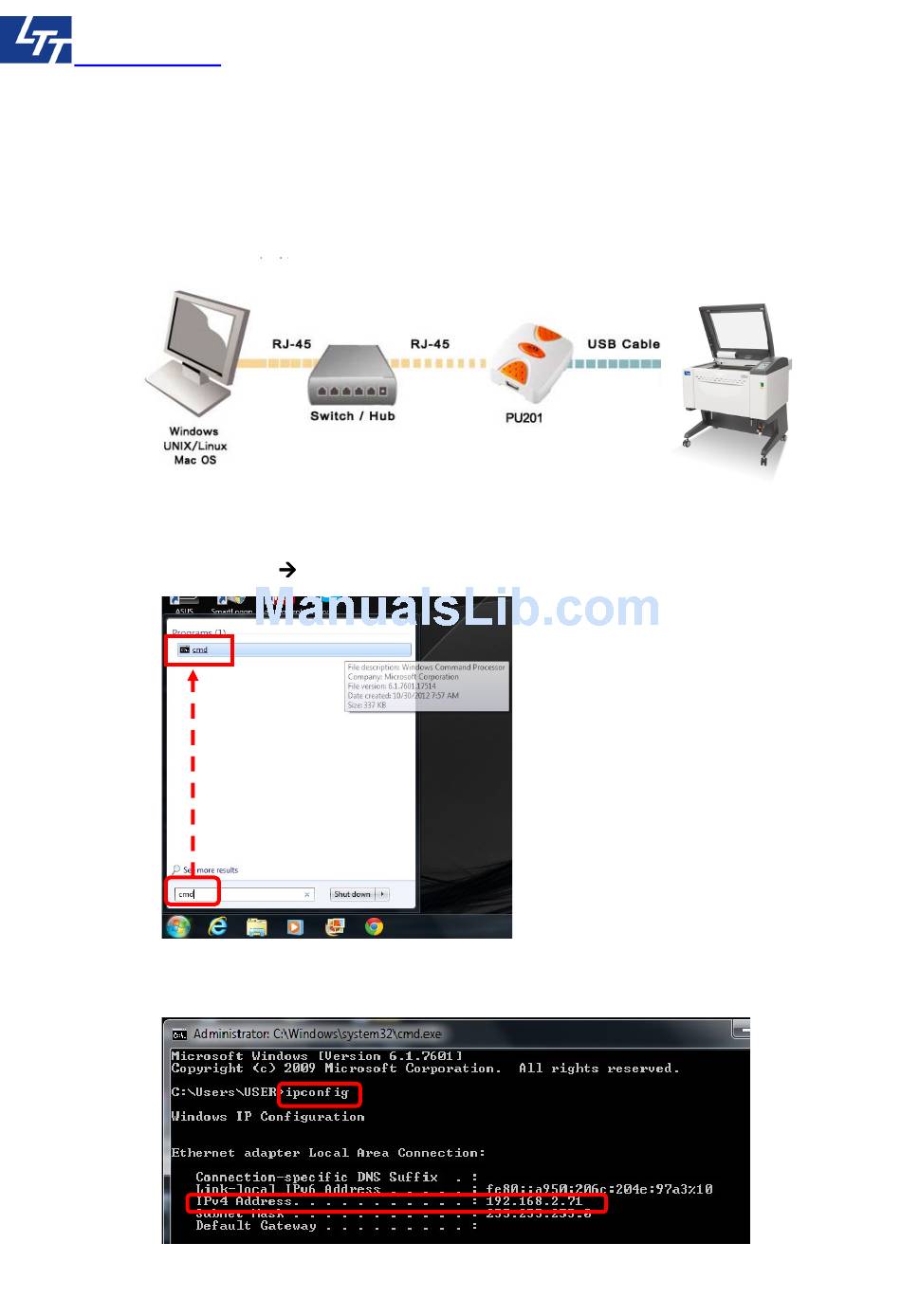

Here is the structure relation of print server and laser machine.
1.4
If you will install the print server to a local area network. Check your current computer
IP address.
1.4.1 Go to <Start>
1.4.2 Key in <ipconfig> and press Enter. You will see a four digit numbers, 192.168.2.71 is
the IP address of current computer in this example.
SOP # S010060
<Search>, and key in <cmd>, and click it to run.
page 1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S010060 and is the answer not in the manual?

Questions and answers

Summary of Contents for LTT S010060

  • Page 1 Title : Print Server Installation Guide Contents : 1. Before installation. Please install LTT printer driver in the computer. The following instruction works for XP/Windows 7. Here is the structure relation of print server and laser machine. If you will install the print server to a local area network. Check your current computer IP address.
  • Page 2 Laser Tools & Technics Corp. www.lttcorp.com page 2/8 SOP # S010060 1.4.3 Check with your IT administrator, prepare an IP for the print server and will not conflict with other computer. If you will install the print server to only one computer. You can skip step 1.4.
  • Page 3 Laser Tools & Technics Corp. www.lttcorp.com page 3/8 SOP # S010060 2.2.3. Choose <Internet Protocol Version 4 (TCP/IPv4)>, and click <Properties>. 2.2.4. Change IP address to 192.168.0.2 and press OK. 2.3. Connect the power to print server, make sure the status led light is ok. It will flash 5 times and then become steady orange.
  • Page 4 Laser Tools & Technics Corp. www.lttcorp.com page 4/8 SOP # S010060 2.5. Open Internet Explorer and key in http://192.168.0.10 Here you can set a new IP address to print server. For example, we change the IP to 192.168.2.70 and then press <Save & Restart>. Follow step 2.2 to change the IP of computer back to original setting.(In this example, it is 192.168.2.71)
  • Page 5 Laser Tools & Technics Corp. www.lttcorp.com page 5/8 SOP # S010060 3.2. Go to <Devices and Printers>, choose the laser machine printer. Right-click it and then click the <Printer properties> 3.3. Choose <Ports> tab, click <Add Port…>. 3.4. Choose <Standard TCP/IP Port>, and then click <New Port…>.
  • Page 6 Laser Tools & Technics Corp. www.lttcorp.com page 6/8 SOP # S010060 3.5. It will show a <Add Standard TCP/IP Printer Port Wizard> welcome window, click <Next>>. 3.6. In this add port step, please enter the IP address of print server. For example, we key in 192.168.2.70.
  • Page 7 Laser Tools & Technics Corp. www.lttcorp.com page 7/8 SOP # S010060 3.8. When it detects the IP, it will show a window for additional port information required. Choose custom and click <Settings…>. 3.9. In the <Configure Standard TCP/IP Port Monitor> window, click <LPR>, check <LPR Byte Counting Enabled>.
  • Page 8 Laser Tools & Technics Corp. www.lttcorp.com page 8/8 SOP # S010060 3.11. You will see a checked new port 192.168.2.70, just click <Apply>. Uncheck <Enable bidirectional support>. 4. Go back to default setting 4.1. Remove the RJ-45 and USB cables from print server.
