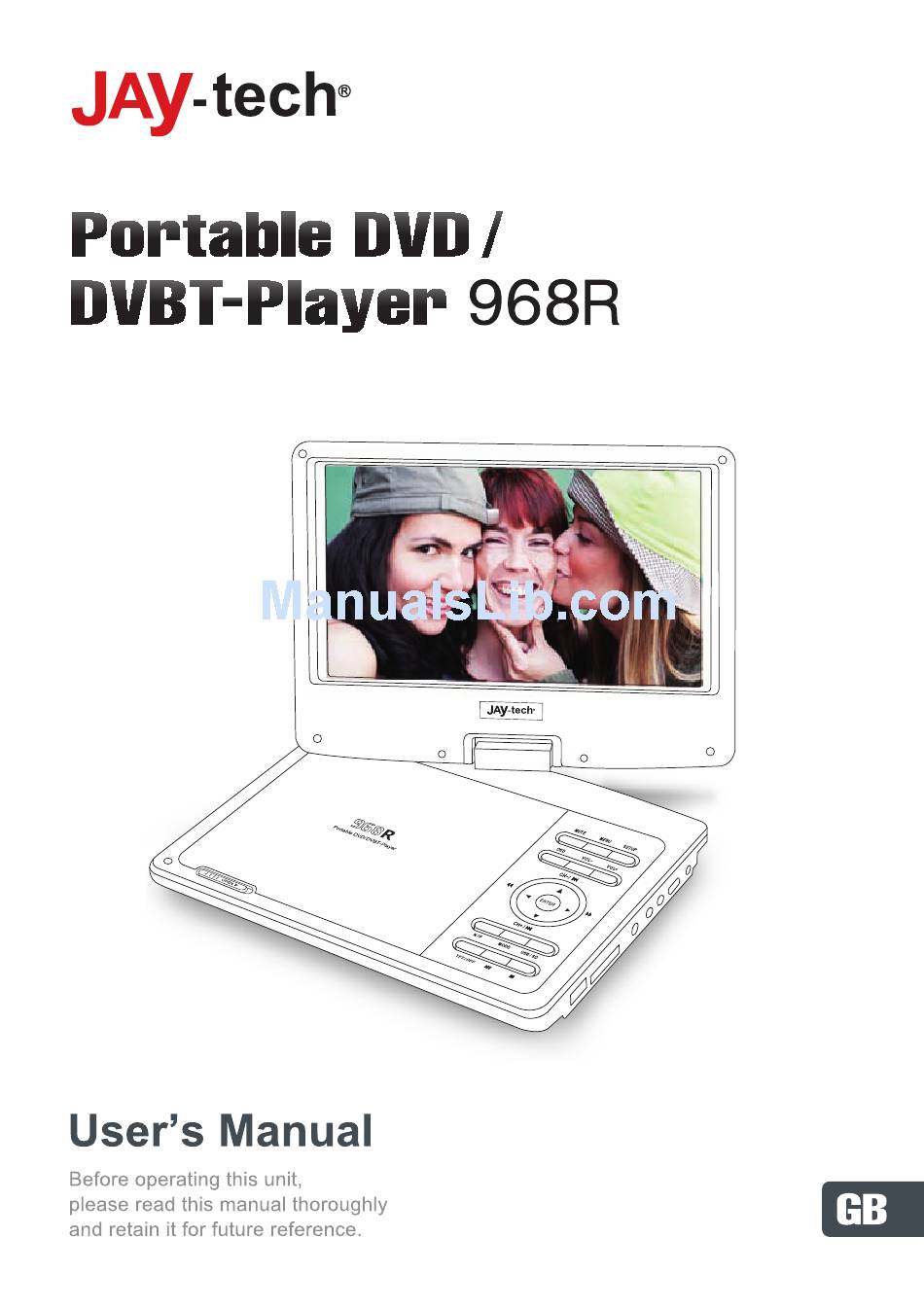

Jay-tech 968R User Manual

Portable dvd/dvbt-player

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Summary of Contents for Jay-tech 968R

Page 2: Table Of Contents
CONTENT Preface................... 1 Notice..................... 1 Protection of Power Cable ............. 2 Precautions and Maintenance............2 Instructions for Using the Built-in Battery ........3 Precautions ................3 Methods of Using the Battery..........3 Appearance Instruction ..............4 Function Keys on the Player ........... 4 Right Side of the Player ............
Page 3: Preface
Preface Thanks for choosing our portable DVD player. Please read this instruction manual carefully before using and keep it properly for later reference. This is a new DVD player with perfect sound and display output. It is suitable to be used in office(s), indoor, hotel(s), car(s), and so on.
Page 4: Protection Of Power Cable
Protection of Power Cable 1. To disconnect the AC power cord, pull the plug out from the connector. 2. Please do not place the AC power cord close to any heat source. 3. Please do not place heavy objects on the AC power cord. 4.
Page 5: Instructions For Using The Built-In Battery
12. The image quality might be reduced if there are muddiness or scratch on the LCD screen. Instructions for Using the Built-in Battery Precautions High-capacity rechargeable lithium battery is built-in in this player, it is strictly forbidden to take the battery apart by your own. Seek for professional technicians’ assistance to replace the battery for you.
Page 6: Appearance Instruction
Appearance Instruction Function Keys on the Player : Press this button to shut down the sound. : Menu setup for displaying. : Press this button to set the function of the DVD player. : Display the working status of DVD. : Decrease the volume.
Page 7: Right Side Of The Player
: Press this button to Play / Pause. : Stop : CD Door Open / Close Right Side of the Player DC IN: DC IN 12V POWER: Power On / Off AV IN: External AUDIO / VIDEO input AV OUT: AUDIO / VIDEO output Earphone Port SD/MMC: SD and MMC Card slot USB: USB socket...
Page 8: Remote Control Introductions
Remote Control Introductions Installation of Remote Control Battery 1. Flip to the back of the remote control and remove the lid. 2. According to the battery polarity position, correctly insert two sections of AAA batteries. 3. Put back and close the lid accordingly. Precautions 1.
Page 9 Remote Control Appearance POWER DVD/USB Card MODE Number Buttons AUDIO SUBTITLE ABGLE TITLE / PBC RETURN ZOOM SETUP MENU ENTER Direction Buttons GOTO Play/Pause Stop SLOW REPEAT MUTE VOL+ VOL- Previous Next Fast Reverse Fast Forward...
Page 10 POWER: Power switch of DVD player. OSD: Display the working status of DVD. DVD/USB Card: Press this button to switch among DVD/USB/CARD interfaces in the DVD mode. MODE: Press this button to switch the different functions between DVD/TV/AV modes. Number Buttons: Number buttons can be used to select songs or TV channels. AUDIO: Press [Audio] to switch among multiple audio languages.
Page 11: Connection With Tvs
Right, ▲Up (TV mode CH+), ▼Down (TV mode 15. Direction Buttons: Left, CH-). 16. GOTO: Press [GOTO], according to different types and contents of discs, the display on the screen is as the following: Press [GOTO] once when the disc is being played back, TV screen shall display the disk type, the number of titles/sections (songs) in the disc, the title number/section (song) number of the currently playing item, and play time of the section (song).
Page 12: Basic Operation
control the volume. Basic Operation er Operation Connect the power adapter with either 220V or 110V power supply, switch the [Power] to ON, and wait for 3 seconds to turn on the device. The device displays the latest shutdown state. Switch to the mode you prefer by mode button. Press [Setup] to enter setting menu interface, select the appropriate function from the menu setting.
Page 13: Menu Setup
mode. 4:3 LB (mail box format): This mode can be selected for TV with normal size, and there are black stripes displays on top and bottom of the screen when wide screen images are being played. 16:9 (wide screen): Applicable for wide-screen TV. Note: 1) The play effect is relevant to the recorded image ratio of the disc, while some discs can not be played according to the selected image sizes.
Page 14: Language Setup
4. Saturation: Press [Direction Button] to move the sliding bar to adjust the saturation for video output. 5. Speaker Setup: Dual channels (LT/RT) stereo and virtual surround can be selected in the mixed mode. 6. Audio Setup Key: Press [Direction Button] to move the sliding bar to select the Key.
Page 15: Cd Copy Function
CD Copy Function Play MP3/JPEG Disc Play MP3 Disc Put in MP3 disc, the DVD player will automatically search all the directories in MP3. When finishing searching, it will play the first directory in MP3 (if the directories in the same type are not placed in order, it will play the first directory), and then play the first song in the directory (the cursor stops at “01”).
Page 16: Read Usb Disc And Sd/Mmc Cards
Select a picture in the JPEG directory menu and press [Play] to play pictures in order. Read USB disc and SD/MMC Cards 1. Insert USB disc into the USB interface on the upper right corner or Insert the card (SD/MMC) into the card slot of the player. 2.
Page 17: Digital Tv Functions
Digital TV Functions System Setup When using the DVB-T TV function, make sure the antenna and unit (Portable DVD) are connected, and the unit is switched on. If finished using the DVD, AV IN or AV OUT function, press "MODE" key to enter the Digital TV function. If the database hasn’t television programs, the system interface will appear as follows: At this point, press the "SETUP"...
Page 18 password "8888", and then it will enter the following interface. If you do not want to delete, press "Return or SETUP" key to return the previous menu. In this interface, press buttons to move the cursor to the option you want to delete, press "ENTER"...
Page 19 2.1 Area Search: Regional search program is a smart way to facilitate the program searches, it can choose according to your country (region), and the search of the area or region of the country shows all the channels. In INSTALLATION interface, use the key to move the cursor to the AREA SEARCH option, press the ENTER key to enter the Channel search: In the program search process you can stop the program search by pressing "back"...
Page 20 B. Bandwidth: Sets the current scanning frequency transmission of broadband, you can press buttons to select 6MHz, 7MHz, 8MHz, the machine defaults to 8 MHz. 2.3 Auto Search: Search for any band program; In INSTALLATION interface, use the key to move the cursor to the Auto SEARCH option, press the ENTER key to enter the Channel search: In the auto search program, you can set the following items: A.
Page 21 3.1 OSD: Through this option, you can set display mode of user interface what you like; In the Configuration interface, use the key to move the cursor to the OSD options, press ENTER key to enter OSD setup options: Operation： Use the keys to select the options you want to set, use make...
Page 22 6) 1st Audio Language：This option allows you to change the 1st Audio Language according to your needs: English / S. Chinese / T. Chinese/ French / German / Italian / Spanish / Swedish / Portuguese / Finnish / Dutch/ Russian/ Greek 7) 2nd Audio Language：This option allows you to change the 2nd Audio Language according to your needs: English / S.
Page 23 6) HUE: Change the HUE of display, you can choose -6 to 6. The system defaults to 0. 7) Saturation: Change the Saturation of display, you can choose -6 to 6. The system defaults to 0. Click "Return or SETUP" key return previous menu. 3.3 System Setup: In the Settings menu, you can set the EQ Setup / Surround / Display OFF / LCD Brightness / Area...
Page 24 Operation keys to select the options you want to set, use make Use the changes, press the ENTER key to confirm your choice: 1) Time Mode: Set the time mode to AUTO or MANUAL. The system defaults to AUTO. 2) Date: Before change the settings, please set the Time Mode to MANUAL. Then press to set the date.
Page 25: Software Upgrade
3) The cursor moves to the "Confirm password" option, enter the new 4-digit password again. If it is confirmed not to be the same as the new password, the system will be prompted to enter a new password. If confirmed to be the same, the Parental Lock settings interface will automatically disappear.
Page 26: Trouble Shooting
Trouble Shooting Problems Possible solution 1. Check if the power plug is correctly connected with the power socket. No power/not charging 2. Check if the power switch is on. 1. Check if the power switch is on. 2. Check if the disc is being inserted; the disc side with label should be faced 3.
Page 27: Specifications
Specifications DVD Technical Parameter Support format DVD/SVCD/VCD/CD/CD-R/RW/JPEG/DVD+R/-R/MP3/MP4/DIVX Other support medias USB/SD/MMC Card Shock proof function DVD: 3: seconds VCD/CD: 10 seconds MP3: 90 seconds AUDIO: 2.0V±0.2 Speaker: 8ohm/1.5W AUDIO output level Earphone output is less than 15mw Frequency response 20HZ~20KHZ ≥50dB Audio signal ratio (S/N) ≥50dB...
Page 28 The product complies with the protective requirements of European Directives 2004/108/EC. The conformity declaration for this product is available under www.jay-tech.de. Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
