Summary of Contents for lonsid GR320-CFT

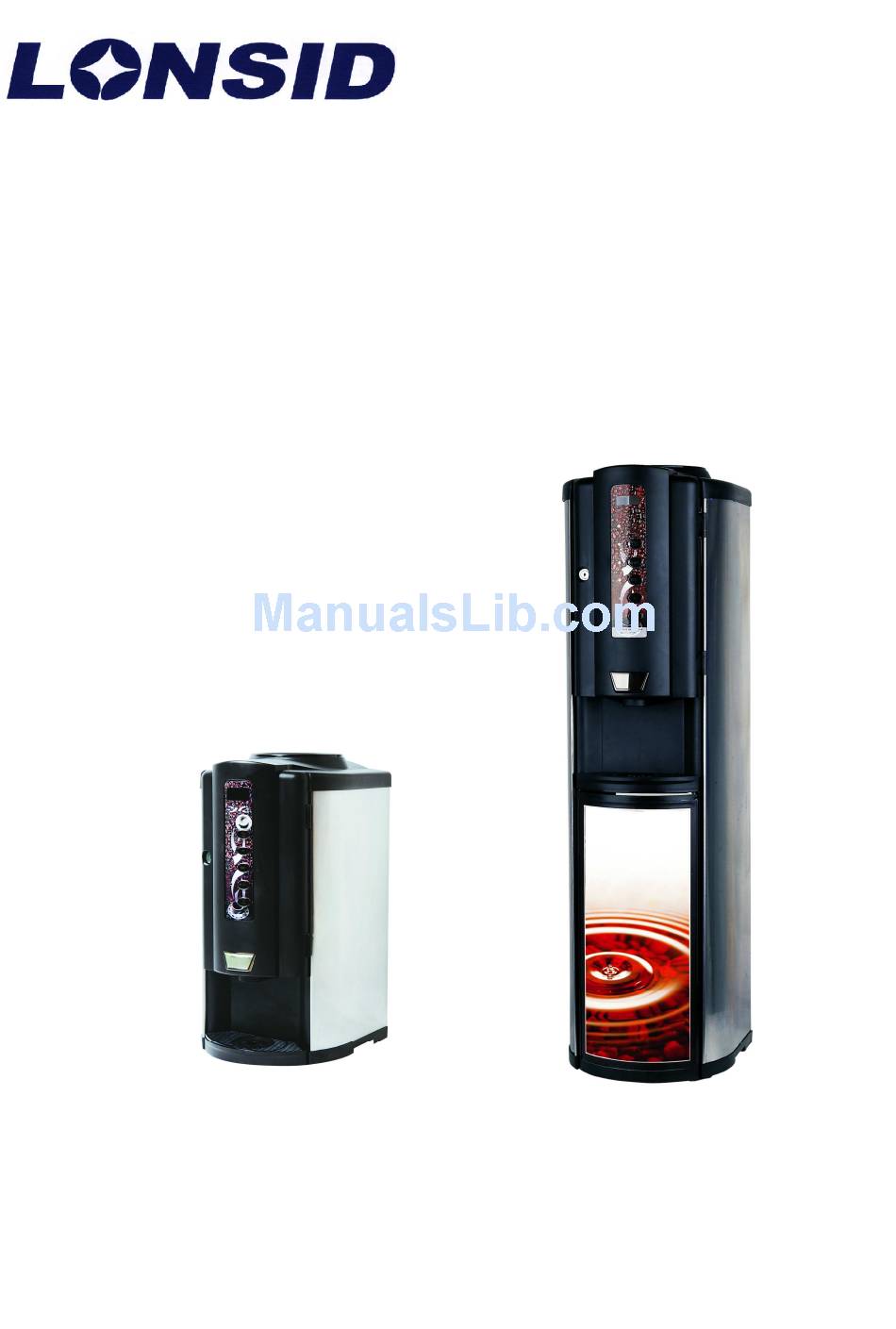

- Page 1 User Manual for Multifunctional Beverage-making machine Model: □ □ □ □ GR320 GR320- - - - CFT □ □ □ □ GR320 GR320- - - - CF CF CF CF GR320 GR320 GR320 GR320 GR320-CFT GR320-CF...
- Page 2 Characteristics: (1)New-patent design: High quality shape and integral style suit for any room by its harmonious atmosphere. (2) Automatic microcomputer control mode. Computer may automatically adjust its management only press the key. (3)Together with Water dispenser, beverage machine, coffeemaker three functions: Other than formal functions of heating and cooling water, user may also enjoy its favorites by concocting hot coffee, ice cold juice, ice black tea, green tea or milk tea.
-
Page 3: Table Of Contents
This machine should be grounded at all times. A Ground Fault Interrupter Circuit (GFIC) is recommended ◆ Place drip tray in position. Names of parts Technical Parameters Description Multifunctional Beverage-making Machine Model GR320-CFT Voltage 220V Pressure of inlet water 1.0～3.5Kg/CM Frequency 50Hz Temperature range 10～38℃... -
Page 4: Adding Powder
Remove the cover of the water bottle, then reverse and put in the bottle in correct place on the top of the machine. Notes: when put bottle on the top of the machine, do not use too much strength to avoid the machine damaged. -
Page 5: Cleaning Related Parts
It can supply drink at four different quantities of 110ml, 130ml, 150ml, and 170ml at a time. So user can adjust the quantity of the drink to need through press regulate button after press setting button and choose specific quantity. ii. - Page 6 COFFEE Co Co Co Co unter WATER POWDER SETTING ADJUST ⅰ ⅰ ⅰ ⅰ Administer programme adjusting mode is specially used by administer. Entering in this mode, the administer need to input the secret code. The original secret code is 888. (ⅰ) Press “SETTING”...
- Page 7 (ⅵ) Press “SETTING” the fourth time, you can adjust the powder of coffee (P1). Press “ADJUST” to adjust the powder outlet time(powder quantity),the range is from 0 to 10 seconds. When the range are between 0 and 2.5 seconds, the yellow light on, that’s mean the condensity of coffee is low.
- Page 8 (ⅹ) Press “SETTING” the eighth time, you can adjust the cold water temperature.Press “ADJUST” to select the temperature, the range is from 2 degree centigrade to 15 degree centigrade. The default temperature is 5 degree centigrade. (ⅹⅰ) Press “SETTING” the ninth time to set the max cups that the unit supply. The rang is from 10 to 999 on display.
- Page 9 (ⅰ) The sequence are : “NORMAL WATER” (GR320CFT) or “ COLD WATER” (GR320CF) “ HOT WATER” “COFFEE” “TEA” “FLUSH HALF-CUP” (ⅱ) Press “ FLUSH HALF-CUP” once and then press “COFFEE” , you can wash the coffee mixing container. (ⅲ) Press “FLUSH HALF-CUP” two times, and then press “COFFEE”, you can get a half cup of coffee.
-
Page 10: Simple Breakdown Fixing
Simple breakdown fixing VIII If there are problems which cannot be resolved through the following methods, please contact the local dealer. It is our staff’s responsibility to solve it. The telephone number of our customer service: ×××××××. Problems Reason Fixing method No powder out 1. -
Page 11: Guarantee
Description: Multifunctional Water Dispenser of Soft Drinks □ GR320-CF Model:□ GR320-CFT These products manifested the first-class technology of China Lonsid Electric Co.,Ltd. Please contact our service centers timely if there are any problems occurred during operation. Guarantee Instruction 1. if the breakdown contributes to the quality of the product itself within a period of twelve months from the date of purchase . - Page 12 Customer service Model: Serial No: Buying date: Invoice No: Name: Zip code: Tel: Address: Agent: Address: Servicing Records: Frequency of Servicing Problems Replacement Maintenance maintenance date of parts person Remarks...
