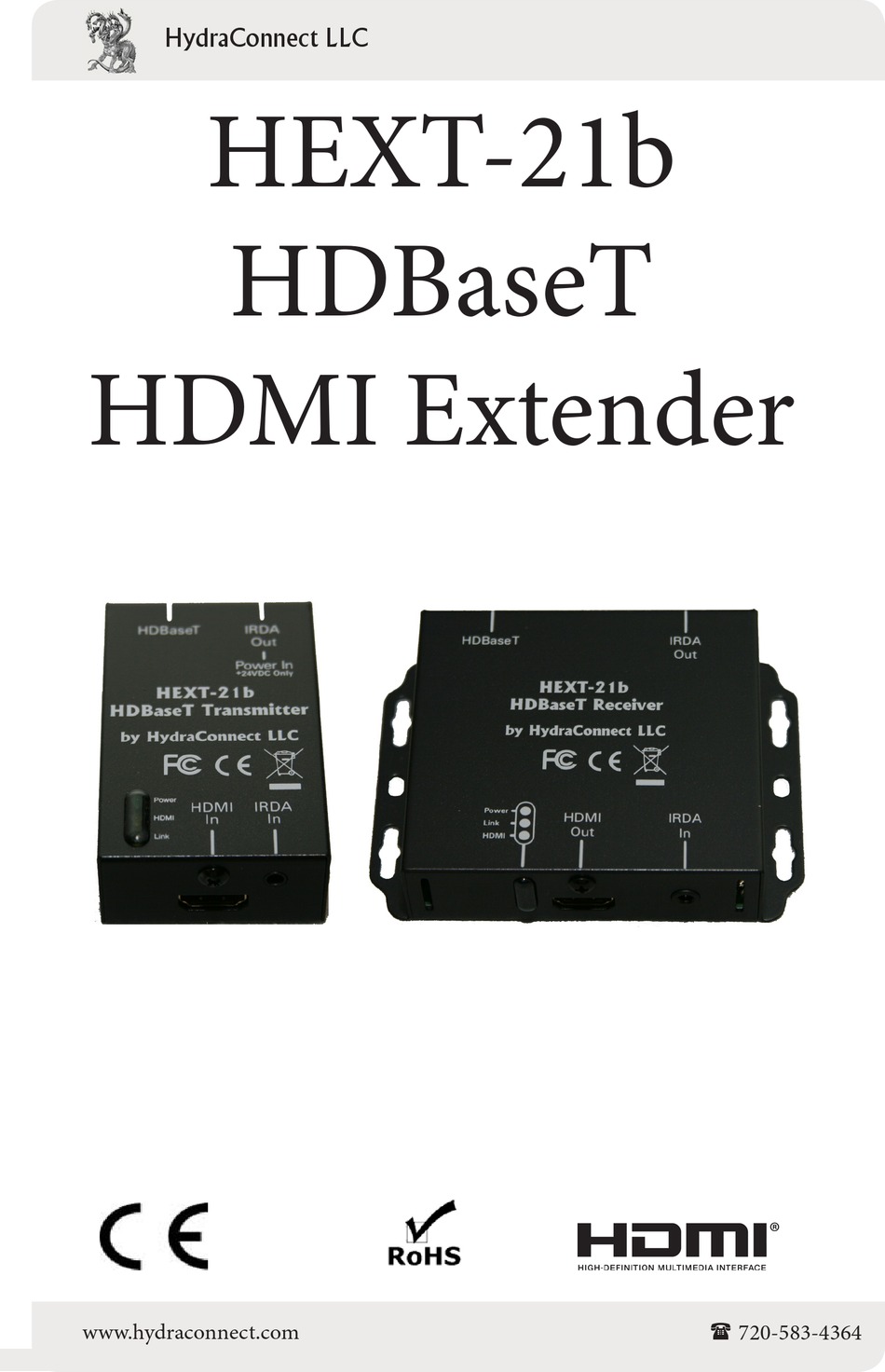

    HydraConnect LLC HEXT-21b HDBaseT HDMI Extender www.hydraconnect.com ( 720-583-4364...
  • Page 2: Table Of Contents

    HydraConnect LLC Table of Contents Safety Information ................1 Introduction ..................2 Product Features ................2 Module Connections ..............3 Transmitter Module Connections ........3 Receiver Module Connections ..........3 Product Installation ..............4 Product Operation ...............6 Product Maintenance ..............6 Cable Pinouts ................7 IR Cables .................7 Link Cable ................7 HDMI Cable ................7...
  • Page 3: Safety Information

    HydraConnect LLC Safety Information Please read and understand all instructions in this manual before operating this equipment. ¾ Keep these instructions in a safe, accessible place for future reference. ¾ Pay attention to all warnings, and follow all instructions. If the equipment is used in a manner not specified by the manufacturer, the protection pro- vided by the equipment may be impaired.
  • Page 4: Introduction

    HydraConnect LLC Introduction The HEXT-21 is a second generation HDMI extender. It utilizes HDBaseT technology to extend uncompressed HDMI signals up to 330 feet (100 meters). The HEXT-21 consists of a transmitter, a receiver, a 24 volt power supply, and mounting brackets.
  • Page 5: Module Connections

    HydraConnect LLC Module Connections Transmitter Module Connections 1. IRDA Out - Infrared 3.5mm socket for plugging in the IR flasher 2. +24VDC IN - Connect to supplied power supply 3. CAT5e/6 OUT - Plug in a Cat-5e/6 cable that needs to be linked to the Receiver module.
  • Page 6: Product Installation

    HydraConnect LLC Product Installation Identify a location for the transmitter module that is within 6 feet (2 meters) of the source. To use the supplied mounting bracket, follow these steps: Determine on which side of the module to attach the mounting bracket...
  • Page 7 HydraConnect LLC Similarly, locate the receiver module within 6 feet (2 meters) of the display. The receiver has permanently attached mounting brackets. Mount the re- ceiver so that the status LEDs which are mounted on the side of the unit are visible when you look behind the display.
  • Page 8: Product Operation

    HydraConnect LLC Product Operation The transmitter and receiver modules have no user adjustments or controls - they are fully self configuring and automatically adjust themselves to the environment. Both modules have three LEDs which indicate the module’s status. They are...
  • Page 9: Cable Pinouts

    HydraConnect LLC Cable Pinouts IR Cables The IR receiver has the following pinout: The IR transmitter has the following pinout: www.hydraconnect.com Page 7 ( 720-583-4364...
  • Page 10: Link Cable

    HydraConnect LLC Link Cable The link cable has the following recommended pinout - note that both ends of the cable are identical: Recommended Link Cable must meet TIA/EIA‐568‐B specifications. Such cable would be CAT5e UTP/STP, CAT‐6 FTP cable in solid core types (350MHz).
  • Page 11: Technical Specifications

    HydraConnect LLC Technical Specifications ӹ HDMI version 1.4a compliant ӹ Supports 3D pass through, deep color, and all available audio formats ӹ Fully HDCP compliant ӹ Data rate to 10.2 Gbps ӹ CEC and EDID Pass through ӹ Bi-directional IR pass through Signal distance from extender output- up to 40 feet (15 »...
