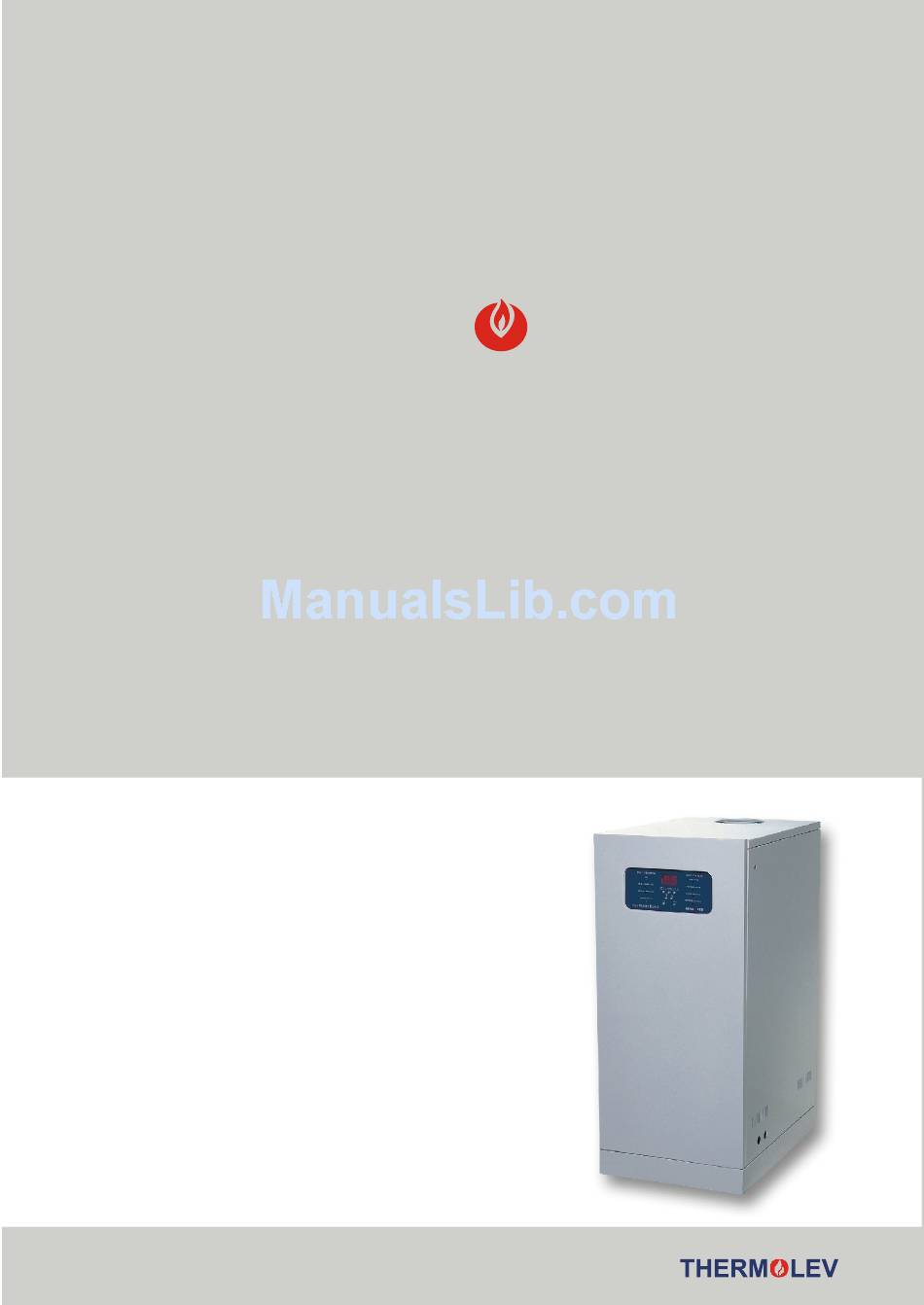

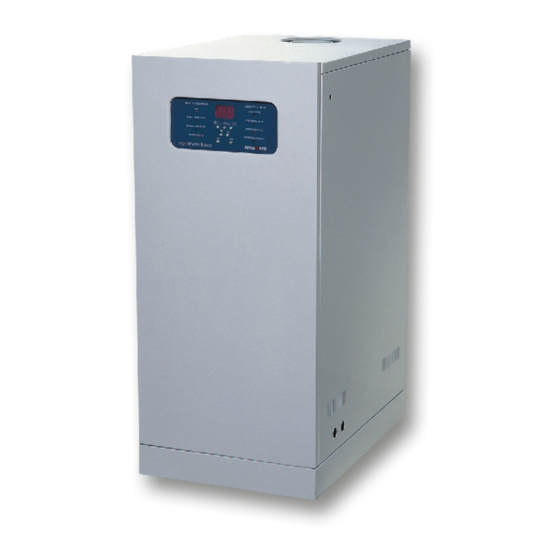

  • Page 1 THERM Instruction and operation manual Master boiler series Steel hot water boiler...
  • Page 2 Technical manual and user manual of hot watre boiler Master Boiler ( Heating and hot water ) THERMOLEV company thanks you for your trust in our products. This manual is referred to the technical characteristics of the boiler and provides information on installing and using the boiler.
  • Page 3 Page 2 / 5 Operating instructions and electrological connection of control panel Master Boiler BUTTON 01 DISPLAY LAMP 01 BUTTON 02 LAMP 02 BUTTON 03 LAMP 03 BUTTON 04 LAMP 04 LAMP 05 DISPLAY shows : - the temperature of the boiler when it is standing - Parameters in the programming - any damages of the boiler BUTTON 01: Increases the indication we wish to regulate.
  • Page 4 Page 3 / 5 Protection Circuit: Warm protection: If for some reason overcome 92 C circulator is activated and lowers the temperature of the boiler 88 C. Burners off: - If short-circuit fault appears in the sensor. - If sensor is being cut. - If sensor for any reason stops working.
  • Page 5 Page 4 / 5 Room thermostat connection drawing [ SIEMENS RAA 30.26 ] Instructions: - Before connecting the thermostat, you should remove the bridge [1],[2]&[3] of the terminal block panel MASTER BOILER - You should make the bridge in the thermostat terminal block [ÕÉ]-[L4] &...
  • Page 6 Page 5 / 5 Installation instructors For the installation of Master boiler the following hardware need to be connected: 1. Expansion tank (24lt) in the heating circuit or bigger than that if it is required by the installation. 2. Safety valve 1/2" 3BAR. 3.
  • Page 7 0030 2310 780761-2 Fax: 0030 2310 780814 Thessaloniki-Greece...
