Sena Prism Tube Quick Start Manual

PREPARATION

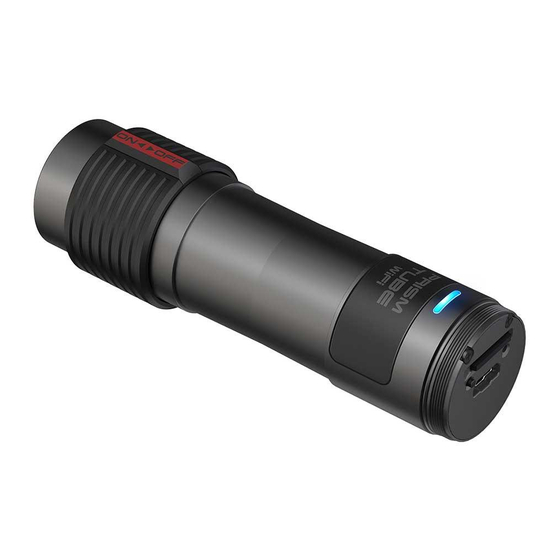

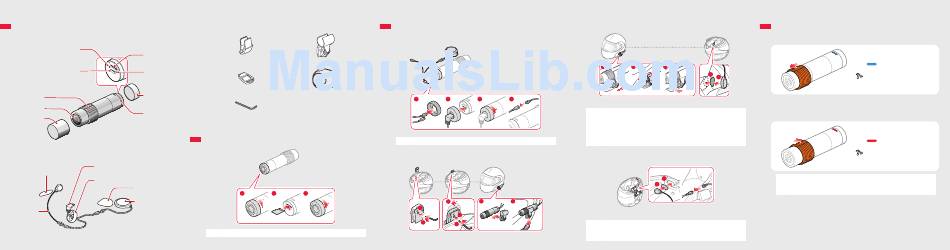

Getting to Know the Prism Tube Layout

Camera
SD Card Format Button
MicroSD Card
Slot
DC Power Charging & Fault Reset
Firmware Upgrade Port Pin-hole Button
Rear Cap
Slide Switch
Lens
Status LED
Lens Cap
Speaker and Microphone
Hook and Loop Fastener USB Cable for Speaker &
for Wired Microphone Microphone
Rear Cap for USB Cable
Hook and Loop
Fastener for Speaker
Speaker
Wired
Microphone
Others
Clamp Unit Tube Swivel Mount
Glued Surface Mounting Plate USB Power & Data Cable
Allen Wrench

Inserting a MicroSD Card

1 2 3
Note Optional microSD cards up to 32 GB are compatible with the Prism Tube.

Installing the Prism Tube System

Connecting the Speaker
1 2 3 4
Note Connect the speaker cable to the USB cable's black connector.

Mounting

1 1 2
1
2
2
3
Clamp Unit Camera
1 2 3
1
2

Adjusting the Angle

Speaker
Note • The tube swivel mount wheel must be fully tightened after adjusting the
camera angle.
• Make sure the tip of the slide switch faces upwards and is parallel to the
ground.
• You can use the glued surface mounting plate to attach the clamp unit to
the surface of the helmet. Full adhesion is achieved after 24 hours.

Connecting the Wired Microphone

1
2
To record your voice more clearly, connect the wired microphone.
Note
• Connect the wired microphone cable to the USB cable's red connector.
• The camera's internal microphone automatically turns on when the wired
microphone is disconnected.

BASIC OPERATION

Turning the Camera On or Off

To Turn On the Camera and Start Recording

ON
"Camera on", "Recording"

To Turn Off the Camera and Stop Recording

OFF
"Camera off"
Note
• Recording will start shortly after the camera is turned on. Recording stops
shortly before the camera is turned off.
• A microSD card must be inserted to record video.
