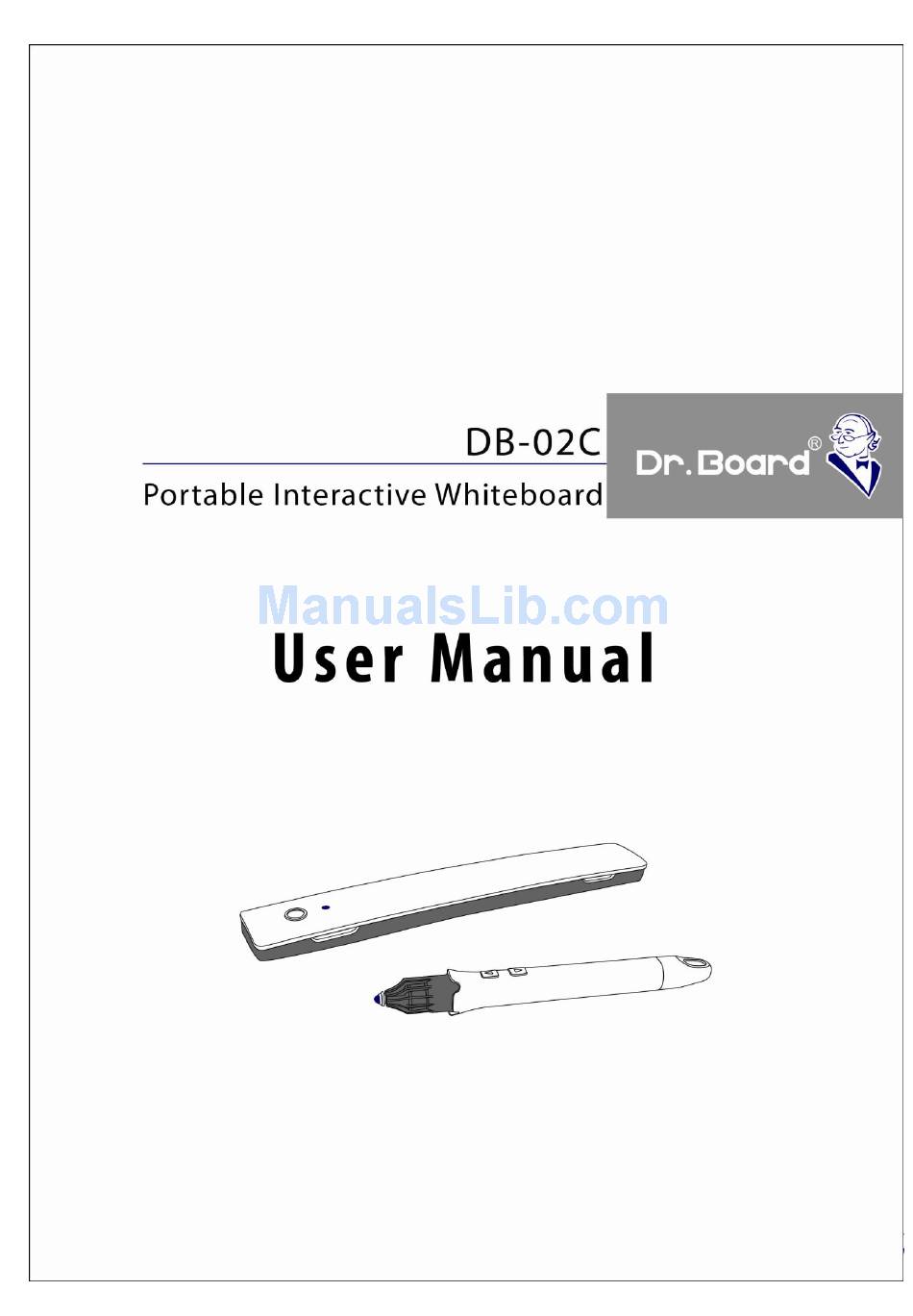

Dr. Board DB-02C User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

— 1 —

Table of Contents

Need help?

Do you have a question about the DB-02C and is the answer not in the manual?

Questions and answers

Summary of Contents for Dr. Board DB-02C

Page 1 — 1 —...
Page 2: Table Of Contents
Contents Reminder-------------------------------------------------------------------------------------3 Safety instruction--------------------------------------------------------------------------3 Overview--------------------------------------------------------------------------------------5 Components --------------------------------------------------------------------------------6 Specification For Station ---------------------------------------------------------------------------------7 For Stylus ----------------------------------------------------------------------------------8 Environment requirement--------------------------------------------------------------10 Installation ----------------------------------------------------------------------------------11 Calibration ----------------------------------------------------------------------------------13 Trouble Shooting -------------------------------------------------------------------------15 — 2 —...
Page 3: Reminder
Reminder: Please read carefully and follow the instruction from this User Manual before install and use this product. Safety Instruction This product has been designed and intended for use indoor via a USB cable or wireless USB receiver connected to a desktop or laptop computer. Use this product in an outdoor and/or wet environment could damage this product and create a potentially unsafe operating condition.
Page 4 Safety Instruction  Do not use this product in an outdoor and/or wet environment. Electric shock will result.  This product is not intended for unsupervised children. Always provide adult supervision when children are using the product.  Installation and removal procedure should be performed by adult only. Failure to do so could result in personal injury and/or product damage.
Page 5: Overview
4. Better writing performance with Drawing Smooth function. 5. Monitor the battery life with the blue light from pen tip. 6. Highly compatible driver allow DB-02C to work with all kinds of interactive software. 7. Scale whiteboard space from small to large without paying more, working area diagonal as big as from 10”...
Page 6: Components
Components Check if all components are included, refer to the following list. Please contact with your local distributor if any shortage or damage happen. Stylus Station Steel mounting Pen tip x 5 USB cable x 5M Plate x3 CD or download link includes: (1)Driver (2)DB fairy Software , (3)Software installing S/N no...
Page 7: Specification For Station
Specification – DB-02C Station ① ① ① Ultra Sonic Receiver – In order to get better writing performance, do not block the two receivers when using the product. ② Mimi B USB-port – Connect the Station to computer with the USB cable.
Page 8: For Stylus
Specification – DB-02C Stylus Right click button Hover button Pen tip Battery cover ① Hover button- Perform normal writing function without touching the screen by holding the “Hover button” and move the stylus around. ② Right click button- Mouse’s right key function.
Page 9 Please make sure the hook is capable for 0.5kgs or heavier item. ⑪ In order to get the best performance from DB-02C, the stylus shall be perpendicular to the working area. Acceptable inclination shall be less than 15º when writing.
Page 10: Environment Requirement
Environment requirement DB-02C is highly environmental dependent. Please select a suitable place in order to get a high quality writing experience. ① Avoid using DB-02C under noisy environment. Sounds of metals may interfere with the ultra sonic receiver and cause an unstable writing performance.
Page 11: Installation
Installation for Station Please follow the installation instruction to set up DB-02C properly and get the best working result. ① Turn on the computer and projector. Adjust the screen size to fit your need. The top of the screen should be within 15cm from user’s head.
Page 12 ④ Connect DB-02C with the computer by USB cable. ⑤ Attach DB-02C Station on steel mounting plate. Connect USB cable to computer/laptop. ⑥ The blue LED indicator should lights up when USB cable is connected. — 12 —...
Page 13: Calibration
Driver will be activating when the computer starts. Icon will be showed on task bar. ② Please make sure the DB-02C Station is well connected and detected by the computer. Device is detected ready Device is not detected and...
Page 14 ④ Follow steps for calibration as below： 1. Click on the crosshair with the stylus perpendicularly. 2. Point at each coordinates accurately. 3. The coordinates will appear on four corners before the calibration is completed. 4. Press ESC to exit. ⑤...
Page 15: Trouble Shooting
1. DB-02C is out of work. Please follow below steps to do general checking. . Please make sure there is no strong light source near DB-02C station. The general brightness will not affect the performance of DB-02C. Check the battery life for ultrasonic stylus. Press on the pen tip check if there are lighting or buzz sounds from the stylus.
Page 16 3. DB-02C will only function when stylus and the Station are use together. Optimize the work area for DB-02C by using it on a hard and flat surface. It should reduce the working area on soft and/or rough surface.
