Summary of Contents for Optoma hdcast pro
- Page 1 HDCast Pro User manual...
-
Page 2: Table Of Contents
Step 1 - Connecting the HDCast Pro ................7 Step 2 – Turn on projector and select HDMI source ............. 8 Step 3 – Download and install the HDCast Pro app ............. 9 Step 4 – Connect to wireless SSID (HDCastPro_xxxxxxxx) ........10 Step 4 –... -
Page 3: Safety
Trademarks Optoma and its logo is a registered trademark of Optoma Corporation. Optoma Europe Ltd is the licensee of the registered trademark. Android is a registered trademark of Google Inc. Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. - Page 4 This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 5: Declaration Of Conformity
Declaration of conformity EMC Directive 2004/108/EC (including amendments).. Low Voltage Directive 2006/95/EC. R & TTE Directive 1999/5/EC WEEE Disposal instructions Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it. -
Page 6: Introduction

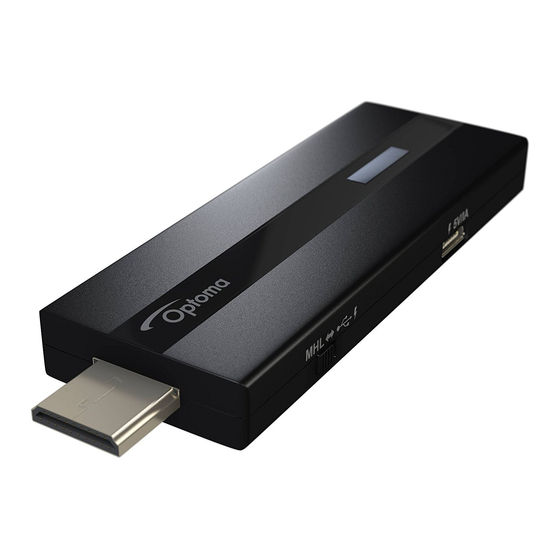

INTRODUCTION Standard accessories Micro USB Charging Cable HDMI extension Cable Product Overview LED indicator Switch + USB power HDMI port Switch MHL/HDMI connector MHL port... -
Page 7: Setup And Installation
Step 1 - Connecting the HDCast Pro The HDCast Pro dongle is compatible with MHL interface, so there are 2 ways to connect with HDCast Pro dongle with your receiver devices. Use the switch to choose HDMI output or MHL output, please be noted your MHL device must provide 900mA power, and if you use HDMI out, you will need external 5V/1A DC power to bring up the dongle. -
Page 8: Step 2 - Turn On Projector And Select Hdmi Source
Step 2 – Turn on projector and select HDMI source c. After booting up successfully, the following screen will be displayed. It shows the download and connect methods, SSID, password, and network link status. -
Page 9: Step 3 - Download And Install The Hdcast Pro App
Step 3 – Download and install the HDCast Pro app Android / iOS Make sure your device is connected to the Internet Search for “HDCast Pro” in App Store or Google Store and install it. Windows / OS X Search for “Optoma HDCast Pro” or visit www.optoma.eu/wireless... -
Page 10: Step 4 - Connect To Wireless Ssid (Hdcastpro_Xxxxxxxx)
Step 4 – Connect to wireless SSID (HDCastPro_xxxxxxxx) Note: You may be asked to enter a password. The password can be found in the top right corner of the projector screen HDCastPro_xxxxxxxx... -
Page 11: Step 4 - Using The Hdcast Pro
The first time you launch the app, there will be a pop up WiFi router list so that you can link with your WiFi router through HDCast Pro device to keep internet surfing. Select the required network you wish to connect to and enter the password if required. - Page 12 Option 2 - Infrastructure mode This model allows you to link with the HDCast Pro through router. However, the performance may not as good as direct link, and you will need to enter the setting to enable it if need it.
-
Page 13: Features
FEATURES Main screen (Android / iOS) Link Mode Indication Direct link Infrastructure mode Main Features Main screen (Windows / OS X) - Page 14 HDCast Pro app for future use. You can also sync subtitle file to HDCast Pro, just make sure the filename is the same with your video and sync through iTunes, it will be automatically shown with video playing.
- Page 15 Photo You will have to allow HDCast Pro to share your camera roll and enable the location service before using Photo function. In Photo viewer, you can select photo and it will be displayed on your Projector. You can also use gesture control to zoom in/out or change photos.
- Page 16 Document The document viewer can support MS-office, PDF, and Apple’s iWorks. Before you start to cast, please remember to sync the document files to your iOS device through iTunes. The document viewer supports sketch as well, that means you can make some note on the document, and save the page to camera roll.
- Page 17 There are multiple music formats supporte: ape, flac, ogg, mp3, wma, wav, rm, m4a, aac, ra, aif, aiff, mka Please be noted HDCast Pro can’t access your iTunes music library due to iOS limitation, so you must use iTunes to sync the audio you like to our app.
- Page 18 Web browser HDCast Pro comes with a built-in browser, and we also categorize several popular websites for you. The web page will dynamically change with different country setting in your device. Sketch function is also supported. Cloud storage We will link to your personal Dropbox, iCloud and/or *Google Drive account to let you access your cloud storage anywhere.
- Page 19 You can connect use iOS AirPlay to discover our dongle under single user (host) mode. Just simply swipe up and enable AirPlay. DLNA DLNA is an industrial standard which allows you to stream multimedia formats through WiFi/LAN In the main menu, you can also use DMLA app to push multimedia files to HDCast Pro for streaming.
- Page 20 Split screen 4:1 HDCast Pro device will allow max. 4 users to display on screen together, but only Host can decide the position he wants, other guest’s screens will be placed automatically after the request is allowed.
- Page 21 Additional features Annotations Except Preferred device setting, you can also enable/disable the inquiry from guests, or automatically allow all display requests from guests without showing pop-up message. Preference Except Preferred device setting, you can also enable/disable the inquiry from guests, or automatically allow all display requests from guests without showing pop-up message.
- Page 22 Setting In setting function, you can setup HDCast Receiver’s configurations including output resolution, change SSID password, setup router connection for internet surfing, boot up mode priority and update the latest FW over the air. We also added a new linking mode to allow you link with dongle through router, however, please be noted the performance may be impacted if you choose to link through router due to distance or router performance.
- Page 23 Host control When you are the first user link to HDCast Pro and open the app, you will become the “Host”. Host has the authority to control the display, that means Host role can use all features without limitation The next or later coming users will be treated as “Guest”, some functions will be disabled under Guest mode,...
- Page 24 ＊ Once the current host quits from app, the second user will become host automatically.
-
Page 25: Additional Information
ADDITIONAL INFORMATION Specifications DRAM DDR3 256MB, 1Ghz NAND 128MB Output 1280x720 default for HDMI/MHL Resolution (HDMI Max. up to 1080p@30p by EDID) Output: HDMI 1.2 or MHL2.0 Input: Micro USB WiFi 802.11 b/g/n 2T2R single band Power DC 5V/1A, through Micro USB port (HDMI) DC 5V/0.9A, through MHL (MHL) Video support Max. - Page 26 Windows OS: Dual Core 2 GHz or higher (Not support ATOM) Graphic card Graphic card with 64MB VRAM or above OS version Windows 7 SP1, Windows 8 and later PC’s WiFi 802.11n (2T2R recommended) Mac OS: Dual Core Intel Core i 1.4 GHz or higher (PowerPC not supported) Graphic card Graphic card with 64MB VRAM or above OS version...
