Summary of Contents for Technika CP750SS

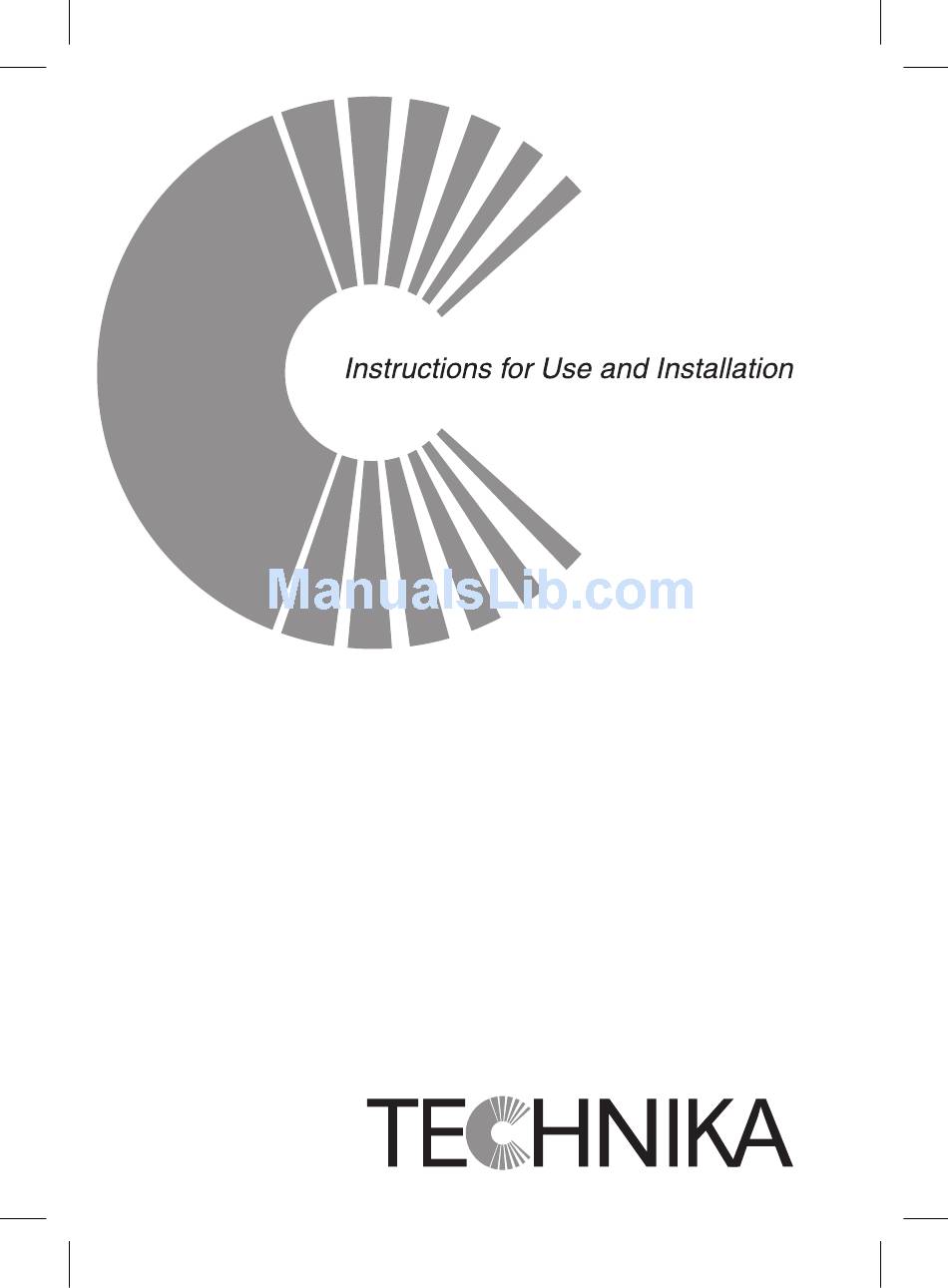

- Page 1 CP750SS...
- Page 2 Instructions for Installation Install Range Hoods in accordance with the manufacturer’s instructions. Technika recommends that all Range Hood clearances be a minimum of 650mm to a maximum of 750mm (between the top of the cooking surface and to the underside of the rangehood).
- Page 3 LED lamp assembly LED lamp assembly Fig.4 Fig.5...
-
Page 4: Safety Precaution
Fig.6 Halogen unit Fig.7 GENERAL Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside – Fig.A). SAFETY PRECAUTION 1. - Page 5 air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation. Before connecting the model to the electricity network : Check the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable.
-
Page 6: Use And Maintenance
necessary. The connection to the mains is carried out as follow: IEC227 L=live Brown N=neutral Blue E=earth Green/Yellow If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible. - Page 7 filters at a regular interval of 2 months by carrying out the following instructions: - Remove the filters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving to soak. - Rinse thoroughly with warm water and leave to dry. - The filters may also be washed in the dishwasher.
- Page 8 Finding the problems and maintance. Problem Possible reason Solution Hood doesn’t work Check the plug is connected No electric supply Check the main switch is turned on Poor airflow Aluminum grease filters Clean the filters and replace when clogged Motor running but no Butterfly valve jammed Contact technician air flow...
- Page 9 All Technika appliances are for Domestic use only, and must be installed by a licence installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty. ...
