Genio MPS2000 Instruction Manual

Silencer system piano
Hide thumbs
Table of Contents

Advertisement

Quick Links

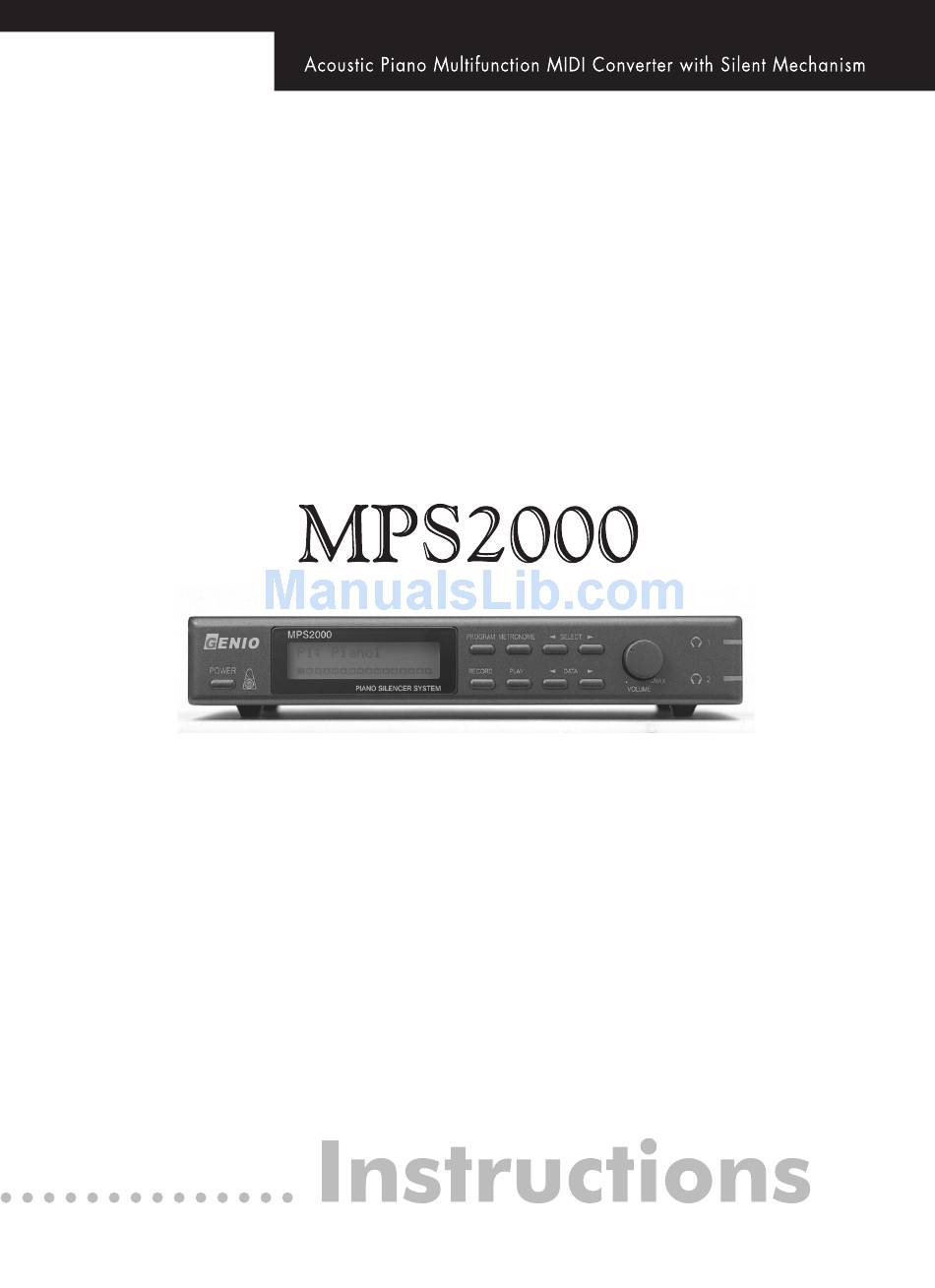

Rev 2.00 Nov.2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPS2000 and is the answer not in the manual?

Questions and answers

Annelie Jonquière
January 19, 2025

I can’t switch on the system. At first it worked but now the power doesn’t work anymore. This happened slowly, now the system doesn’t react anymore

0

Summary of Contents for Genio MPS2000

  • Page 1 Rev 2.00 Nov.2007...

  • Page 2: Important Safety And Installation Instructions

    Important Safety and Installation Instructions INFORMATION RELATING TO POSSIBLE PERSONAL INJURY, ELECTRICSHOCK AND FIRE HAZARD POSSIBILITIES HAVE BEEN INCLUDED IN THIS LIST. WARNING - When using electrical products, basic precautions should always be followed, including the following : Read all instructions before using the product. The product should be connected to a power supply only of the type described in the operating instructions or as marked on the product.

  • Page 3: Table Of Contents

    With the center pedal in the Normal position, your MPS2000 functions as a quality upright acoustic piano with the added benefit of audio and MIDI output signals. With the mute lever in the Mute position, the piano’s acoustic sound is silenced and headphones can be used to hear the audio signal privately.

  • Page 4: Connection Diagram Of The Mps2000

    Ⅰ Ⅰ . Connection Diagram of the MPS2000 Connection Diagram DC 12V 1~3A Mute Lever Mute Position Real Acoustic Piano Position Mute Lever MPS2000...

  • Page 5: Control Panel

    Ⅱ Ⅱ . Control Panel Front Panel 1) POWER switch Press to turn the MPS2000 on; press again to turn it off. 2) LED Indicator Flashes according to the metronome beat with red when down beat, green when up beat.

  • Page 6: Rear Panel

    MIDI connections to external MIDI equipment or computer. 3) Keyboard Connects to the signal cable from keyboard. MIDI MIDI OUTPUT KEYBOARD INPUT THRU 4) DC Jack INPUT OUTPUT A product of: Midmuro POWER AC power adapter plugs in here. DC 12V 1~3V 09/11/07 MPS2000...

  • Page 7: Mps2000 Operations

    Ⅲ Ⅲ . MPS2000 Operations Sophisticated technology in your MPS2000 Piano allows you to play it like a standard acoustic piano or, when desired, silently. During silent playing, only you can hear your performance, through headphones. How to play your MPS2000 Piano silently Make sure the AC power adapter is connected to the piano and plugged into an outlet.
  • Page 8 If desired,press either [◀] SELECT or SELECT [▶] button to select other program sounds. Adjust the volume control as desired. Enjoy your performance without disturbing other people. NOTE: 1. When turning on the MPS2000, a few seconds of preparation are required before the unit is ready to play. MPS2000...

  • Page 9: How To Select Pre-Set

    MPS2000 contents 16 Pre-set sounds, 16 User-sets sounds that can be edited by user and one of the 128 GM sounds How to Select Pre- set Press either [◀] SELECT or SELECT [▶] button to select one of the 16 Pre-set sounds.

  • Page 10: How To Select User-Set

    Press both the [◀] DATA and the DATA [▶] buttons together, then Preset should be U1: Pipe Organ 1 from any sounds. U1: Pipe Organ 1 is default sounds when turn the MPS2000 on. User-set Chart MPS2000...

  • Page 11: How To Select The 128 Gm Sounds

    Some functions do not work in the Pre-set of User-set mode. For Example In order to add the Reverb amount 30 to selected instrument. While holding down the [PROGRAM] button, press D4#(55) key three times and release the [PROGRAM] button. MPS2000...

  • Page 12: How To Edit User-Set

    Press the [PROGRAM] and the [PLAY] buttons together to finish and return to normal mode and memorize the edited data. Press the [◀] SELECT and the SELECT [▶] buttons together to finish and return to the normal mode without memorizing edited data. MPS2000...

  • Page 13: How To Change The User-Set Name

    Press the key that matches the letter. Refer to the chart, press the [RECORD] button to fix it and move to the next letter. Repeat the procedure as above. If the new name is completed, then press the [◀] SELECT and the SELECT [▶] buttons together to finish. MPS2000...

  • Page 14: Functions Of Parameter Settings In Edit Mode

    Functions of Parameter settings in EDIT mode MPS2000...
  • Page 15 MPS2000...

  • Page 16: Metronome (Tempo, Beat, Rhythm, Volume) 16~18

    Metronome is operating. If the display shows the instrument number and name, press the applicable buttons to select the new instrument sound you want to play with. (LED is flickering and tic tack sound is working while the metronome is operating) MPS2000...
  • Page 17 The cursor will move to “B” which is the Beat Parameter value. Press either [◀] DATA or DATA [▶] button to adjust the beats/measure value up or down. Rhythm Press the SELECT [▶] button again. The cursor will move to “R” which is the Rhythm Parameter value. MPS2000...
  • Page 18 The cursor will move to =V1= which is the Volume Parameter value. Press either [◀] DATA or DATA [▶] button to adjust the volume up or down. Note: 1. If the metronome is on during recording, its sound will be heard but it is not recorded. MPS2000...

  • Page 19: Record/Play

    Your MPS2000 has a built-in one-track recorder. With it you can record your performance then later play it back through the audio and MIDI outputs. Record Press the [RECORD] button to start recording your performance. The previous recording, if any, will be erased.

  • Page 20: How To Change The Keyboard Touch

    How to change the Keyboard Touch The touch of your MPS2000 can be made changed to accommodate players with a lighter or heavier than average touch. To change from the default “Medium” setting, do this: Press and hold the [PROGRAM] button.

  • Page 21: Midi Implementation Chart

    MIDI Implementation Chart MPS2000...

  • Page 22: Drum Map

    Drum Map MPS2000...

  • Page 23: General Midi Program Map

    General MIDI Program map MPS2000...

  • Page 24: Initializing

    Ⅳ Ⅳ . Initializing How to Initialize Occasionally you may want to calibrate the key sensors in your MPS2000 Silencer System Piano for accurate response when in silent mode. A good time to do this when it is new and after the acoustic parts (hammers and strings) have been tuned.

  • Page 25: How To Adjust The Keyboard Sensitivity Individually

    Make sure the MPS2000 is off. While holding the [RECORD] button down, turn MPS2000 the on. After 3 seconds, release the [RECORD] button. The display should be as below. While wearing headphones to monitor the sound, play each key and listen to the volume of the sound, If the sensitivity needs to be adjusted, use either [◀] DATA or DATA [▶] button to adjust the...
  • Page 26 When all keys requiring adjustment have been done, press the [RECORD] button again to end key adjustment. It will take a few seconds for the adjustment data to be stored in permanent memory. When the adjustment data is successfully stored, the display will change as shown and the piano is ready to play again. MPS2000...

  • Page 27: Application

    Connect your MPS2000 to external Audio Equipment Use two audio cables to connect the Left and Right Audio outputs of the MPS2000 to inputs of your audio system. The signal is "unbalanced, line level". See the diagram below which is representative of a club or performance hall audio system.

  • Page 28: Connect Your Mps2000 To External Midi Equipment

    In order to receive MIDI data from a General MIDI keyboard synthesizer or computer, connect a MIDI cable between the MIDI Out port of the external device and the MIDI In port of the MPS2000 . See the diagram below.

  • Page 29: Trouble Shooting

    Trouble shooting MPS2000...
  • Page 30 Memo MPS2000...
  • Page 31 Memo MPS2000...
  • Page 32 121-2 Sannam-Ri Gyoha-Eup Paju-City Gyeonggi-Do,Korea 413-834...
