Summary of Contents for AXIWI AT-320

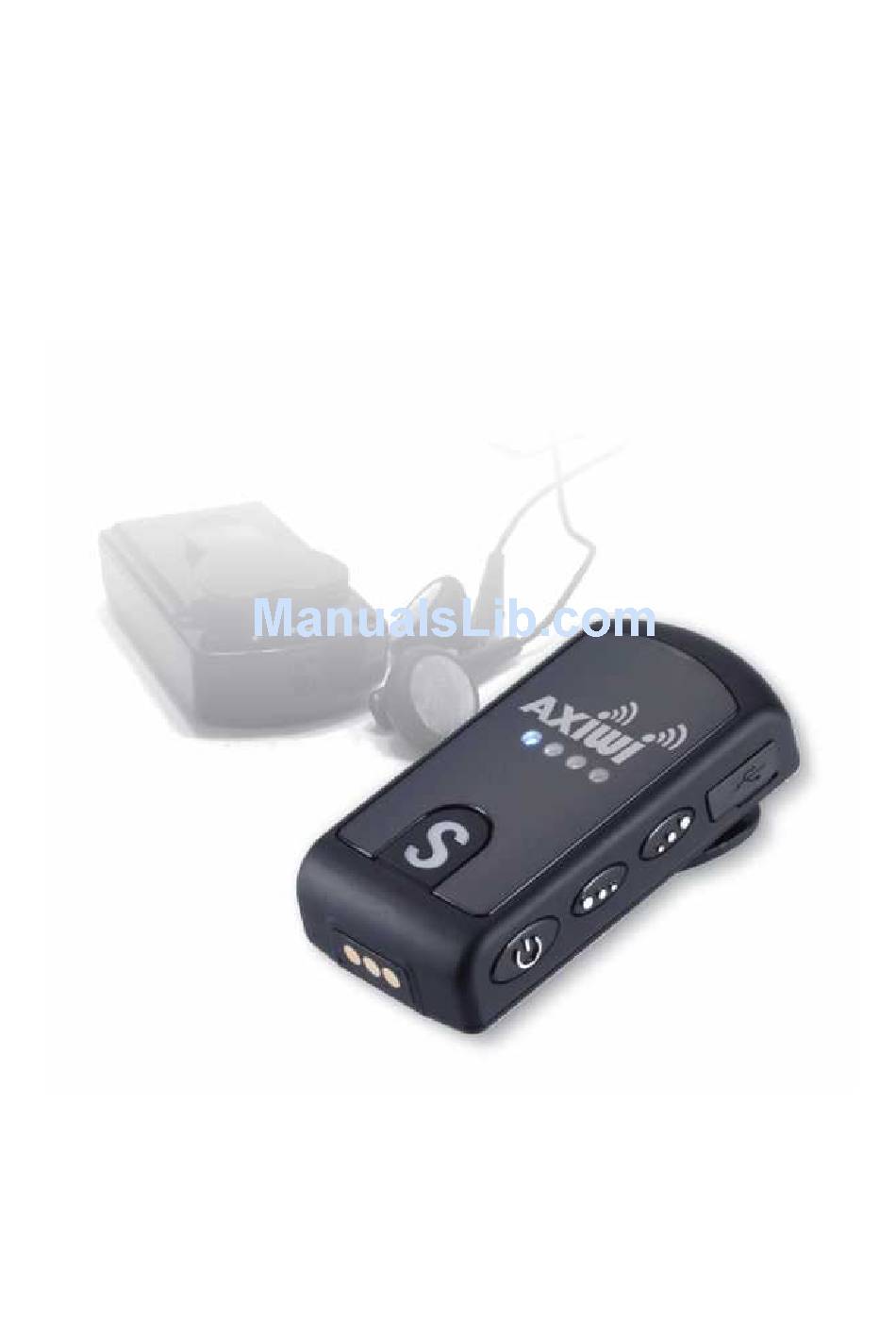

- Page 1 AXIWI Digital Wireless Audio System AXIWI AT-320 User Guide...
- Page 2 Safety Precautions Observe the following precautions to ensure user safety and proper use of the device. ● Avoid exposing the AXIWI AT-320 to dramatic changes in temperature or humidity. Otherwise, you may risk distortion of the product exterior or product malfunction.
- Page 3 Product Content: Index to...
- Page 4 How to Turn On/Off; Master/transmitter mode: Turning On 1. Press the power button for about 2-3 seconds whilst pressing the volume up button. 2. When the device is booted in“master mode”, the LED light remains lit continuously. Turning Off 1. Press the power button for about 2-3 seconds. 2.
- Page 5 How to Turn On/Off; Slave/receiver mode: Turning On: 1. Press the power button for about 2-3 seconds. 2. When the device is booted in “slave mode”, the LED light will blink and will continue to do so during the time the device is turned on. Turning Off: 1.
- Page 6 How to change Channels: The AXIWI AT-320 can operate on 4 different channels or frequencies. To change channel press the S-button on the front side while pressing the volume up button. The channel LEDs will light up in turn by the order of channels.
- Page 7 Slave Mode - How to request the“permission to speak”: 1. On the device which currently is in slave mode briefly press the S-button on the front side. 2. All LED lights will light up and a beep can be heard through the headset off all devices tuned into the current channel.
- Page 8 Slave Mode - How to cancel the permission to speak: 1. Briefly press the S-button on the front side of the slave device currently in permission to speak mode 2. A beep will sound and the four lit LED lights will return to a single blinking LED light. * This function is to allow a slave mode device to cancel its permission to speak by the user himself/herself.
- Page 9 Master Mode – How to cancel the permission to speak for units in slave mode: 1. Press the S-button on the front side of the “master mode”unit to cancel ALL the permissions to speak granted to “slave mode” units. 2. When the permissions are cancelled successfully, you can hear two beeping sounds. * Automatic cancellation of the permission to speak mode: When the distance between the master mode unit and the slave mode unit gets too long and communication between the two units becomes impossible, the permission to speak for the slave mode unit is automatically cancelled.
- Page 10 Master Mode – How to cut off the permission to speak function for all slave units: 1. Press and hold the volume down button for about 3-5 seconds on the master mode unit. 2. When the cut-off is made you can hear two beeping sounds through the headset of the master mode unit.
- Page 11 Master Mode - Muting/unmuting the master unit: 1. To mute the master unit, press and hold the S-button for 3-5 seconds. 2. When successful the LED lights of the channels currently not in use will come on a rotational basis. 3.
- Page 12 How to Control the Volume: Volume up: 1. Briefly press the volume up button. 2. When the volume is at its maximum level you will hear a beeping sound. Volume Down: 1. Briefly press the volume down button. 2. When the volume is at its minimum level you will hear a beeping sound.
- Page 13 When a malfunction is suspected Symptoms Actions to be taken The battery time is ● If the device is left unattended while being exposed to low or high shorter than the one ambient temperatures, the battery life can be shortened. set forth in the user ●...
- Page 14 Dimension and Features Bandwidth used 2.402~2.483[GHz] Range of operation ● Indoor use: ~ 30[m] (L.O.S.) ● Outdoor use: ~ 150[m] (L.O.S.) Data transmission speed Max. 1[Mbps] Battery time ● Max. 8[hours] (Master mode) ● Max. 12[hours] (Slave mode) Battery charging time 2[hours] Battery type Lithium polymer battery...
- Page 15 2) Our limited product warranty period applies to the following products. Other accessories and consumables are eligible for replacement or refund within a period of two weeks from the date of receipt. AXIWI AT-320 ② AXIWI CR-001 ③ AXIWI AT-110 ④ AXIWI CR-003 ① 3) Exceptions Even during the warranty period, the following may be subject to predetermined repair charge or unavoidable paid replacement.
- Page 16 Tel: +31 180 691 400 E info@axitour.eu www. axitour.com / www. axiwi.com Axitour Scandinavia Furuveien 5C 1450 Nesoddtangen Norway E info@axitour.com T +47 4634 4505 E info@axitour.com / I www.axitour.no AXIWI® is a registered trademark of Axitour B.V. - 15 -...
