ptcl EC2108V5 User Manual

Hide thumbs

Table Of Contents

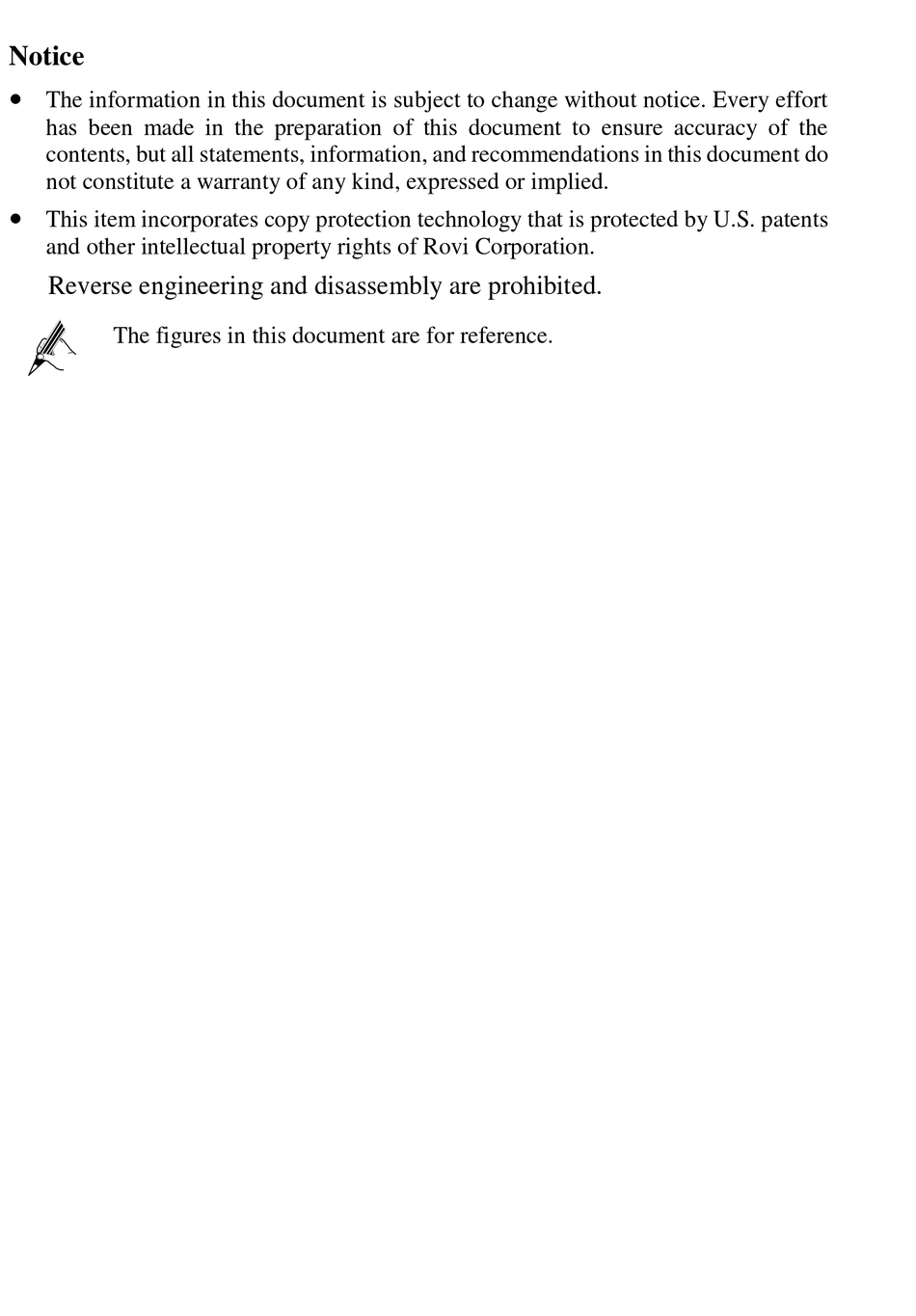

Notice



The information in this document is subject to change without notice. Every effort

has been made in the preparation of this document to ensure accuracy of the

contents, but all statements, information, and recommendations in this document do

not constitute a warranty of any kind, expressed or implied.



This item incorporates copy protection technology that is protected by U.S. patents

and other intellectual property rights of Rovi Corporation.

Reverse engineering and disassembly are prohibited.

The figures in this document are for reference.

Table of Contents

Need help?

Do you have a question about the EC2108V5 and is the answer not in the manual?

Questions and answers

Summary of Contents for ptcl EC2108V5

Page 1 Notice  The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, expressed or implied.
Page 2: Table Of Contents
EC2108V5 User Guide Contents Contents 1 EC2108V5 ....................1 Items in the Packaging Box .................1 Appearance ......................2 Front Panel ......................2 Rear Panel ......................3 2 Infrared Remote Control ................5 Function Description ...................5 Study Function .....................8 3 Using the STB for the First Time ............10 Connecting Cables .....................
Page 3: Ec2108V5
EC2108V5 User Guide 1 EC2108V5 1 EC2108V5 Items in the Packaging Box Item Quantity Set Top Box (STB) Infrared remote control Battery Power adapter Audio/Video cable RJ45 cable High Definition Multimedia Interface (HDMI) cable User Guide...
Page 4: Appearance
EC2108V5 User Guide 1 EC2108V5 Appearance Front Panel Name Description Press it to switch STB between working state and standby state. Power indicator. If the indicator is in green, it indicates that the STB is in  active mode. If the indicator is in red, it indicates that the STB is in standby ...
Page 5: Rear Panel
EC2108V5 User Guide 1 EC2108V5 Infrared indicator. If the indicator blinks, it indicates that the STB is receiving signals from the remote control. Rear Panel Name Description They are connected to the Y, Pb, and Pr input ports of a TV set.
Page 6 EC2108V5 User Guide 1 EC2108V5 Name Description USB 2.0 port. Special functions can be added by using the USB 2.0 port to meet operation requirements. 10/100 Mbit/s Base-T Ethernet port for connecting to an Ethernet port on a wall or on an x digital subscriber line (xDSL) modem.
Page 7: Infrared Remote Control
EC2108V5 User Guide 2 Infrared Remote Control 2 Infrared Remote Control Function Description...
Page 8 EC2108V5 User Guide 2 Infrared Remote Control Item Description Switch the status of TV Set between working and standby. Study the function of the TV set’s Remote control. Change audio volume of TV set. Shift video output of TV set.
Page 9 EC2108V5 User Guide 2 Infrared Remote Control Item Description Move the cursor upward, downward, leftward or rightward in EPG. Return to previous menu. Reserved key (defined by EPG). Confirm an operation. Show more options menu. Change audio volume of STB.
Page 10: Study Function
EC2108V5 User Guide 2 Infrared Remote Control Certain keys (for example, keys related to the live service, TSTV service, or VOD service) are available only when a carrier provides related services. If the keys are unavailable, contact the carrier for service provisioning information.
Page 11 EC2108V5 User Guide 2 Infrared Remote Control Step 3 Aim the emission port of your TV remote control at the emission port of your STB remote control (the distance between the two ports must be less than 3 cm), and hold down the Power key on your TV remote control for 3 seconds to send a signal.
Page 12: Using The Stb For The First Time
EC2108V5 User Guide 3 Using the STB for the First Time 3 Using the STB for the First Time Connecting Cables To connect cables, perform these steps: Step 1 Select one of the following methods to connect the video cable: 1.
Page 13: Starting The Stb
EC2108V5 User Guide 3 Using the STB for the First Time Step 2 Use the audio cable to connect the audio output ports (L and R ports) of the STB to the corresponding audio input ports of the TV. Step 3 Use the RJ45 cable to connect the Ethernet port of the STB to a 10/100 Mbit/s Base-T Ethernet port on a wall or an xDSL modem.
Page 14: Faqs
EC2108V5 User Guide 4 FAQs 4 FAQs Problem Possible Cause Solution The STB indicators The STB is powered Verify that the power cable is off. are off and the STB properly connected and the cannot be powered on power switch on the rear panel is turned on.
Page 15 EC2108V5 User Guide 4 FAQs Problem Possible Cause Solution No electronic program The network Check the network connection. guide (EPG) page is connection is For details, see Connecting displayed on the TV abnormal. Cables. screen. STB configuration is Reconfigure the STB.
Page 16: Specifications
EC2108V5 User Guide 5 Specifications 5 Specifications Item Specification Input voltage 100–240 V AC, 50 Hz or 60 Hz Power supply external 12 V, 1 A DC power supply Power consumption < 10 W(excluding the power consumption of an external USB devices) Environment requirements Operating temperature: 0°...
