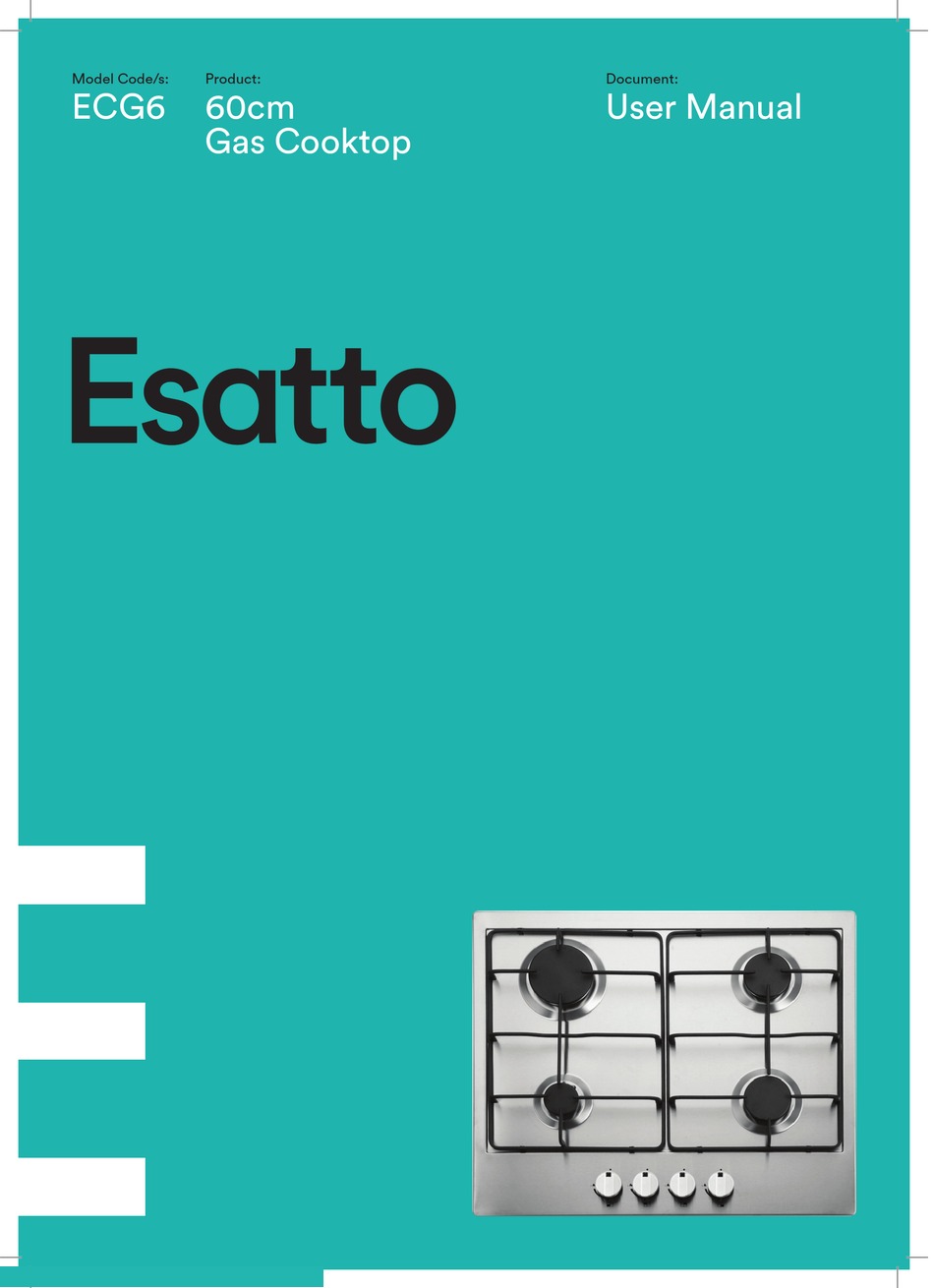

- Page 1 User Manual: Model Code/s: Product: Page: Document: ECG6 60cm User Manual Gas Cooktop...
- Page 2 Dear Customer, Congratulations on purchasing your new gas cooktop. The Esatto brand is proudly distributed within Australia by Residentia Group Pty Ltd. Please refer to the warranty card at the rear of this manual for information regarding your product’s parts and labour warranty, or visit us online at www.residentiagroup.com.au.
-
Page 3: Table Of Contents
User Manual: Page: Contents: Page: Safety instructions Your Esatto Cooktop Installation Instructions Cleaning & Maintenance Technical Data Purchase Details Warranty Information Notes... -
Page 4: Safety Instructions
→ The use of this cooktop for any other purpose or in any other environment, without the express agreement of Residentia Group, will invalidate any warranty or liability claim. → You should not use this appliance to store items on or as a work surface. - Page 5 User Manual: Page: DECLARATION OF CONFORMITY This appliance complies with the following European Directives: — 2006/95/CE General regulations / Low tension — 2009/142/CE Concerning gas appliances — 1935/2004/CE 90/128/EEC This appliance is suitable to come in contact with food — 2004/108/CE Electromagnetic compatibility —...
-
Page 6: Your Esatto Cooktop
User Manual: Page: Your Esatto Cooktop SPECIFICATIONS Connection points diagram above: 1. Front of cooktop 2. Gas connection point 3. Electrical connection point. MODEL PRODUCT DIMENSIONS CUT-OUT DIMENSIONS CONNECTION POINT LOCATIONS (W×D×H) (W×D) (DIAGRAM ABOVE) Gas: 42mm (from left), 60mm (from rear) ECG6 600mm, 510mm, 40mm 560mm x 480mm... - Page 7 User Manual: Page: Your Esatto Cooktop (Continued) CONTROLS The following symbols will appear on the control panel, next to each control knob: ● Gas off Large flame: maximum setting Small flame: minimum setting → The minimum setting is at the end of the anti-clockwise rotation of the control knob. →...
-
Page 8: Installation Instructions
User Manual: Page: Installation Instructions It’s important to carefully read the following installation instructions before beginning the installation of your cooktop. IMPORTANT! The installation must be carried out by a suitably qualified and authorised person, in accordance with the current version of the following: →... - Page 9 User Manual: Page: Installation Instructions (Continued) INSTALLING THE COOKTOP Cut a hole in your benchtop that corresponds with the relevant cut-out size for your Esatto Cooktop model. Refer to the “Your Esatto Cooktop” section of this user manual. IMPORTANT! You must have a gap of at least 30mm between the underside of the cooktop and any surface below.
- Page 10 User Manual: Page: Installation Instructions (Continued) IMPORTANT! This appliance must be installed by a licenced and authorised person and in compliance with the current standards. IMPORTANT! This hob is supplied to run on natural gas only and cannot be used on any other type of gas without modification.
- Page 11 → If, after installation and checking the appliance operation, the hotplate is not working correctly, contact the Residentia Support team on 1300 11 4357 for assistance. → Fit the duplicate data plate (supplied in separate bag) on a surface adjacent to the hotplate, for example, the inside of the cupboard door so it is clearly visible for any service technician.
- Page 12 Once these checks have been completed, if the regulator still fails to perform in a satisfactory manner it should be replaced. Please contact the Residentia Support Team on 1300 11 4357.
- Page 13 User Manual: Page: Installation Instructions (Continued) GAS ADJUSTMENT (CONVERSION TO LPG) IMPORTANT! The conversion work must be carried out by a registered gas fitter and in accordance with the current standards. WARNING! Always isolate the cooktop from the electricity supply before changing the injectors and/ or adjusting the minimum flow of the burners.
- Page 14 User Manual: Page: Installation Instructions (Continued) MINIMUM FLOW ADJUSTMENT FOR COOKTOP GAS TAPS IMPORTANT! All work must be carried out by a registered gas fitter and in accordance with the current standards. WARNING! Always isolate the cooktop from the electricity and gas supply before changing the injectors and/or adjusting the minimum flow of the burners.
- Page 15 Cable type: H05 RRF 3 core x 0.75 mm³ (Type RR-F <HAR> marked). → The mains supply cable is supplied with this product. If the mains supply cable is damaged, then it must be replaced by an appropriate replacement, which can be obtained from Residentia Group, or an authorised service agent.
- Page 16 User Manual: Page: Installation Instructions (Continued) The mains supply cable should be replaced in accordance with the following instructions and by suitably qualified and authorised person: → Switch the appliance off at your mains supply. → Open the box of the supply board. →...
-
Page 17: Cleaning & Maintenance
TROUBLESHOOTING IMPORTANT! If your appliance appears to be operating incorrectly, then you should disconnect it from your mains gas and electrical supply and then contact the Residentia Group Support team on 1300 11 HELP (4357). WARNING! DO NOT ATTEMPT TO REPAIR THE COOKTOP YOURSELF. -
Page 18: Technical Data
User Manual: Page: Technical Data ELECTRICAL DETAILS : Rated Voltage: 220 - 240 Vac 50 / 60 Hz Supply Connection: Max Rated Inputs: 0.8 W Mains Supply Lead: 3 core × 0.75mm² (Type RR-F <HAR> marked) GAS TYPE & OPERATING PRESSURE: Connection: Rp ½... -
Page 19: Purchase Details
User Manual: Page: Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate of your hob is located on the underneath of the appliance. Therefore please fit the duplicate data plates or label on the outside of the cupboard to sure that the label can be easily seen during operation. - Page 20 Australia. During the Warranty Period Residentia Group or its ASR will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective.
