AAP ESL KIT Install

Quickfit install hook-up sheet for esl kit
Hide thumbs

Advertisement

Table of Contents

QUICKFIT
INSTALL HOOK-UP SHEET
FOR
ESL KIT
REV 1.17 OP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESL KIT and is the answer not in the manual?

Questions and answers

Related Manuals for AAP ESL KIT

Summary of Contents for AAP ESL KIT

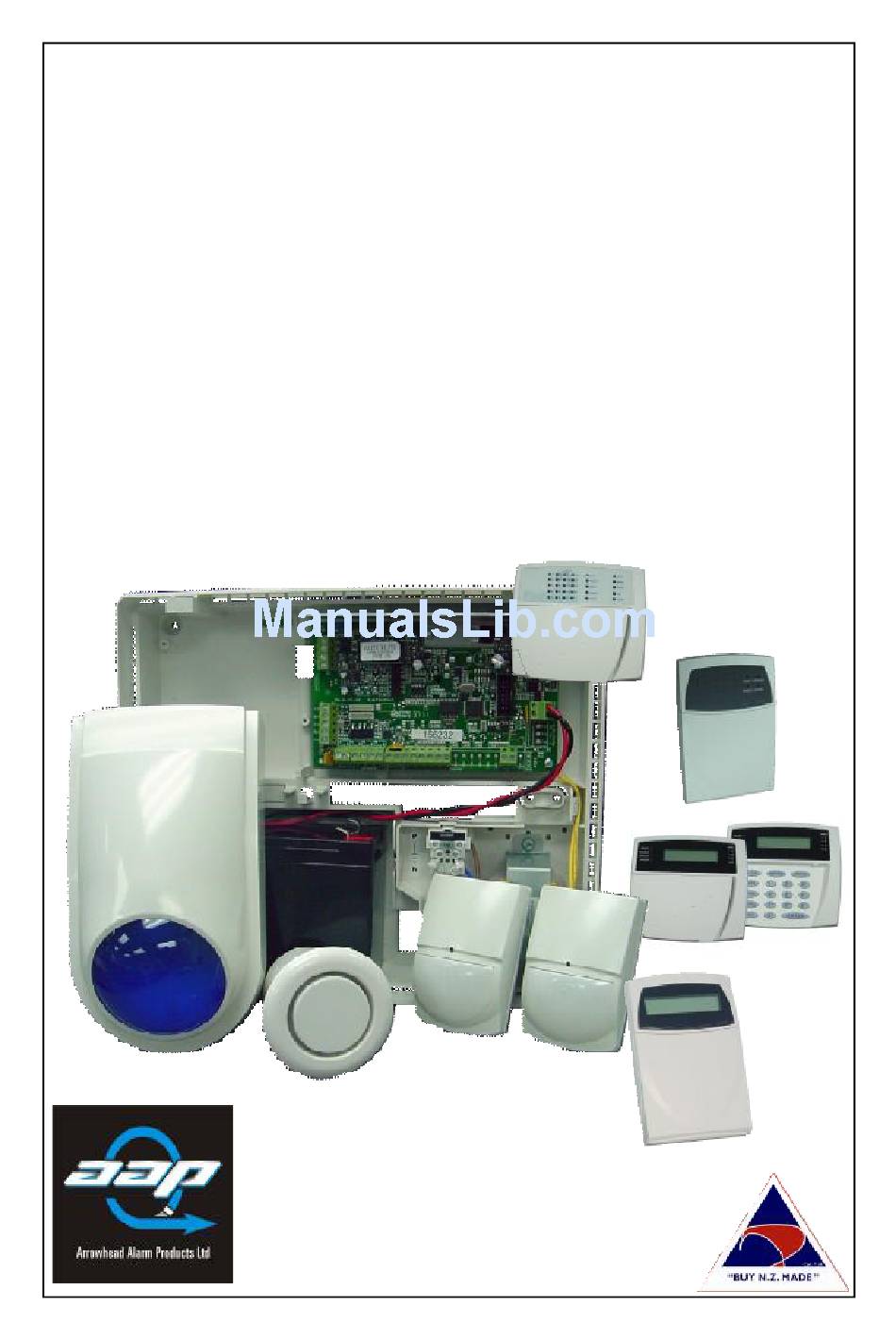

  • Page 1 QUICKFIT INSTALL HOOK-UP SHEET ESL KIT REV 1.17 OP...

  • Page 2: Entering Installer Mode

    PROGRAMMING STARTS Entering Installer mode If you want to get into program mode press <PROGRAM> followed by your installer code, default set to 000000 and <ENTER> to confirm. Exiting Installer Mode Press the <PROGRAM> button, then <ENTER> . Changing/Adding user codes The panel has the ability to have up to 100 user codes.
  • Page 3 TESTING When you have finished the programming options, a quick test is required to confirm all hardware and software is working correctly. Run through the steps below and tick the box if it operates successfully. Make sure no one is moving around the house, as this could affect the test. 1.
  • Page 4 DIALLER SETUP - FOR MONITORING STATION Your Elite S-Lite Controller is equipped with an on board dialler, capable of communicating in contact id. If you are required to connect to a central monitoring station you will need to complete the following steps. Contact a monitoring station of your choice, they will issue you an account number and telephone number.
  • Page 5 DIALLER SETUP - FOR PERSONAL MONITORING If you don’t want your alarm to be monitored by a security company, but still wish to know if any activations oc- curs, then the Domestic Dial option could be for you. If a phone number on your Elite S-Lite Controller’s is set to Domestic Dial, when an activation occurs that number will be called and siren tone will be played down the line to you.

  • Page 6: Hardware Configuration

    HARDWARE CONFIGURATION Screw PCB PCB fits here down in these points. CUT THIS SUPPORT OFF POP OUT CABLE CLAMP FOR MAINS LEAD. 17 volt AC power leads Cable Entry Point BATTERY GOES HERE WIRE 230V MAINS IN HERE. INSIDE VEIW OF PLASTIC CABINET Removing back from keypad.
  • Page 7 5 Year Warranty Thank you for purchasing another quality Arrowhead Product. We guarantee to replace or repair Arrowhead Manufactured product found to be faulty due to defective materials or workmanship for a period of 5 years from date of purchase. The customer shall as soon as practicable after the discovery of any such defect or fault, return the goods or defective parts thereof, to Arrowhead Alarm Products.
  • Page 8 TELEPHONE WIRING OPTION 1: Standard analogue line ESL CONNECTION DIAGRAM SILICONE FILLED CRIMPS PHONE LINE OFF THE STREET TELEPHONE WIRING OPTION 2: with high speed internet (broadband) 17VAC ADSL FILTER NOT SUPPLIED IN KIT ELITE S-LITE SILICONE FILLED CRIMPS V908.12 DSL008 ADSL LINE FILTER HOUSE...
