Summary of Contents for iBlue immobilizer

  • Page 1 Immobilizer User Guide...

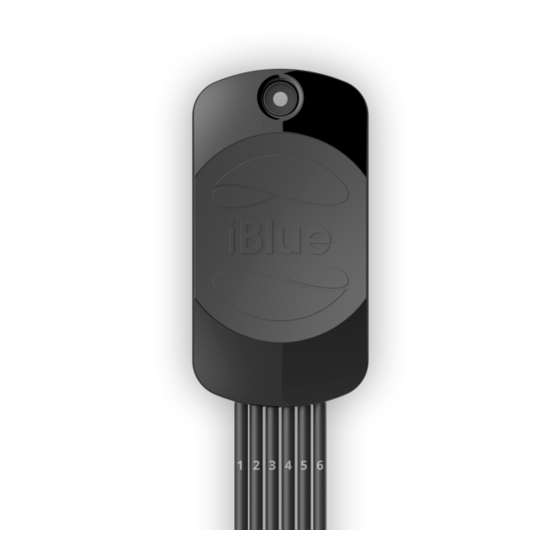

  • Page 2 The package includes 1 pc. iBlue Immobilizer, 1 pc. plastic card containing the PUK code (crossed-out waste bin) means that at the end of its lifecycle and within the Euro- and 1 pc. booklet. If any of the components are missing from the box, please immediately pean Union the product must be thrown into a separate container.
  • Page 3 ENGLISH Technical Operating input voltage range 9-15 V data -40°C - +85°C Operating temperature range 19 mA Current consumption when armed 105 mA Current consumption when disarmed Number of interrupted circuits 30 sec Delay before rearming after ignition is turned off relay output without fuse protection (NO) Type of output 15 A...
  • Page 4 The immobilizer can only be installed by a qualified automotive electrician expert, in line with The immobilizer can be used to interrupt the circuits of two units needed to start the engine. these use and installation instructions as the proper installation of the product cannot be...
  • Page 5 During installation the installing expert must verify that the circuit of which is interrupted by the immobilizer does not trigger an error code in the on-board computer of the vehicle that aff ects the operational capability of the vehicle. It is important to power the immobilizer from a wire that is controlled by the ignition switch and provides constant power during the start up procedure.
  • Page 6 AppStore (in case of smartphones with the iOS operating system), the Google Play and distributor of the iBlue Immobilizer disclaim responsibility for any and all error or damage Store (in case of smartphones with the Android system) or from the Windows Store arising from operation in any other manner or from the use of any harmful codes.
  • Page 7 Please make sure you do not share the PIN code with unauthorised persons! The manu- this time there is no need to use the PIN code. facturer and the distributor of the iBlue Immobilizer disclaim responsibility for any and all damage arising from the sharing of the code with unauthorised persons.
  • Page 8 OS 4.3 (or newer) or Windows Phone 8.1 update 1 (or newer) operating system and After you turn the ignition key, the signals of the Bluetooth® radio in the immobilizer can be features/operates Bluetooth® 4.0 wireless technology. detected only for 30 seconds. If during this time the smartphone cannot connect to the im- WARNING! mobilizer, the ignition key must again be set to the 0 position and then turned on again.
  • Page 9 ENGLISH Descriptions and illustrations in these directions for use and installation may change. The manufacturer reserves the right to carry out any and all modifications it regards necessary to improve the product in technical, production or trading terms, while leaving the fundamental features of the product unchanged and may do so even with- out adjusting this documentation.
