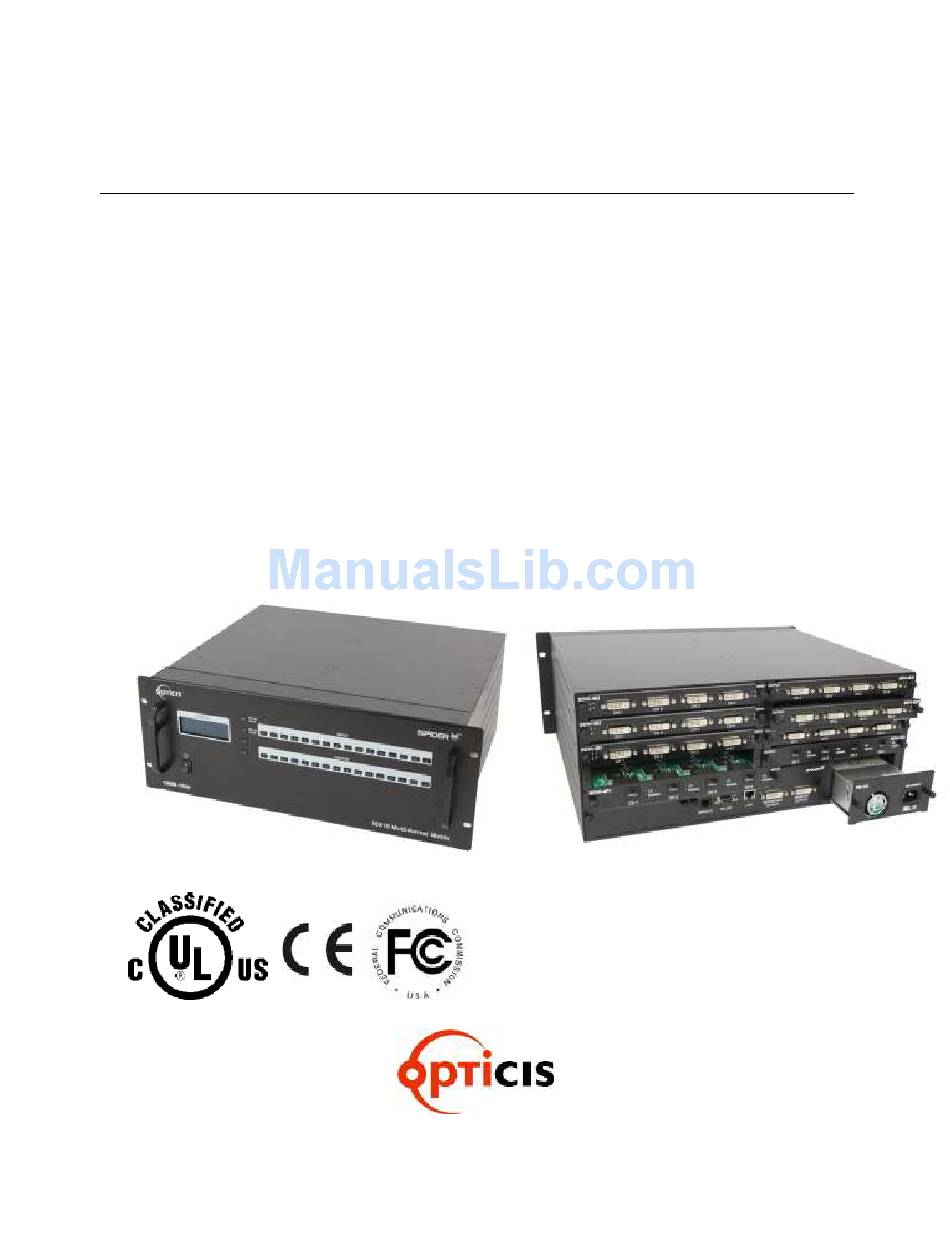

- Page 1 User’s Manual Version 1.5 OMM-1000 Multi-format matrix 16x16 DVI / HDMI / SDI / DisplayPort Matrix Doc No. : OM-D150512 / Rev1.5...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Chapter 1. Introduction and installation ....................4 Key features ..........................4 Shipping group ........................5 Notice of safe usage ........................ 5 Physical description ......................... 6 Installation ..........................7 1.5.1 Initialization ......................... 7 1.5.2 Connection for remote control .................... 7 EDID Configuration ........................ - Page 3 Chapter 6. Command input operation....................28 Command input structure ...................... 28 Examples of command inputs ....................29 6.2.1 Link input and output ......................29 6.2.2 Input and output status ..................... 29 6.2.3 Network setting ......................... 30 6.2.4 Video generator setting ..................... 30 6.2.5 Monitor output port setting ....................
-
Page 4: Chapter 1. Introduction And Installation
16x16 by plugging the cards into OMM-1000 mainframe. Introduction The OMM-1000 modular matrix enables to switch up to 16 different DVI, HDMI, SDI, and DisplayPort sources to 16 different digital displays. It can be configured using 4 input and output cards and each card has 4 ports of input and output. -
Page 5: Shipping Group
▪ Provides diagnostic function for quick trouble shooting. ▪ Has video generator output and monitoring output for easy installation. 1.2 Shipping group ▪ OMM-1000, Modular matrix chassis: 1 EA ▪ Input output cards: Option SDVI-4EI, 4 ports electrical Single link DVI input card ... -
Page 6: Physical Description
▪ Carry the unit using the handle in front of the panel with two (2) Users. 1.4 Physical description The OMM-1000 modular matrix chassis is mountable on a 19” standard rack. Key buttons, LCD display and reset switch are placed on the front panel as shown in Figure 1-1. -
Page 7: Installation
[NOTE] Typically, the IP address of PC connected to the network is configured by DHCP server. But, if the PC is connected directly to the OMM-1000, the network server will not able to assign the IP address. In this case, network information of PC should be set manually. - Page 8 As depicted in Figure 1-3, once EDID is configured, each EDID is stored in EEPROM in Input ports. As a result, the video sources are able to read EDID from the EEPROM during booting process even though the OMM-1000 and connected displays are not powered on yet.
-
Page 9: Chapter 2. Control Setup
Chapter 2. Control setup The OMM-1000 modular matrix can be controlled in various ways such as command input (RS-232, TCP/IP), Web control panel (TCP/IP), supplied PC program (RS-232, UDP) as well as key button on the front panel. To do this, PC should be configured properly. -
Page 10: Launching Hyperterminal
Stop bits: 1 Flow control: None [Note] Bit per second of Hyper Terminal should be set as same as baud rate of OMM-1000. ▪ Click OK to save the parameters. ▪ Go Start > Programs > Accessories > Communications > HyperTerminal, then new icon will be shown. -
Page 11: Chapter 3. Key Button Operation
Press the input key button to be disconnected. Press ENTER key button. 3.3 FUNCTION mode ▪ It configures basic setting of OMM-1000 to be controlled by command input and PC program. Press FUNCTION to see features – FUNCTION key button will cycle the following features ▪ repeatedly: ... -
Page 12: Gateway
3.3.1 Gateway: Press FUNCTION key button once ▪ The cursor shows that it is selected and activated. ▪ Input 3 key button decreases the number. ▪ Input 4 key button increases the number. ▪ Input 1 and 2 key buttons move the cursor left and right. ======Gate Way====== O: 192. -
Page 13: Mac Address
▪ Modify the IP address to be used for your network. ▪ Press ENTER key button to complete the process. ▪ The default setting is 192.168.001.117. 3.3.4 MAC Address: Press FUNCTION key button four times ▪ The cursor shows that it is selected and activated. ▪... -
Page 14: Multi Viewer
3.3.6 Multi Viewer: Press FUNCTION key button six times ▪ Multi-viewer card, QDVI-O can choose 4 inputs among 16 inputs of OMM-1000 and configure and output these input signals with 7 different layouts. For more details, refer to chap. 4.3.4. -
Page 15: Monitoring Output
3.3.9 EDID Configure: Press FUNCTION key button nine times ▪ It sets EDID information in input port. ▪ OMM-1000 supports three types of EDID setting: Default Mode, Auto Mix Mode and Output Copy Mode. For more information, refer to Chap. 5.2. -
Page 16: Baud Rate
===EDID Configure=== Input: 01 Default Default Mode? 1: Y 2: N 3: << 4: >> 5: ∨ 6: ∧ Press input 1 key button then, the OMM-1000 will recover the Default EDID to allocated input as below. ===EDID Configure=== EDID Copying…. -
Page 17: Control Lock
▪ Press ENTER key button to complete the process. 3.3.12 Reset Mode: Press FUNCTION key button twelve times ▪ It resets OMM-1000. It starts rebooting and restores all default setting. ▪ Press Input 1 key button to complete the process. -
Page 18: Preset Mode
3.4 Preset Mode ▪ It saves and loads the current routings to up to ten (10) specified preset number. ▪ Press SHIFT key button and then, press FUNC key button. ▪ The screen shows Preset LOAD mode. ▪ Press FUNC key button to choose between Preset Load and Preset Save. - Preset Save mode ▪... -
Page 19: Chapter 4. Pc Program Operation
Chapter 4. PC program operation Run the setup.exe to install OMM-1000 PC program. The OMM icon will be shown on the wallpaper. Double click it to launch PC program for OMM-1000. The PC program provides a user-friendly graphic interface alternative to key button input and command input operation. -
Page 20: Basic Setup
▪ In case of RS-232 control, enter available COM port number of your PC and select baud rate. The baud rate should be same as that OMM-1000. (115200 is default) ▪ In case of Ethernet, enter IP address of OMM-1000 and port number. 3000 is default port number of OMM-1000. -
Page 21: Channel Name
▪ Click Apply button to save it. 4.2 EDID setup OMM-1000 offers 3 types of EDID setting for easy installation with various displays in the market. To set the EDID option for each input port, click Set EDID button then, Setup EDID window as below will open. -
Page 22: Operation
▪ Auto Mix mode is the most advanced one it analyzes all EDID of attached displays at the output ports of OMM-1000 and get optimized EDID. By selecting it, user can avoid any compliance problems in the field. -
Page 23: Input / Output Connection
Input signal resolution and status, EDID setting for each input and Input / output card information and used to make new input / output connections too. Fig 4-5 Input and output status of OMM-1000 4.3.1 Input / output connection ▪... -
Page 24: Output Channel Status
▪ There are 4 slots for input cards and OMM-1000 recognizes its type during booting process and shows it on PC program when it launched. (Ex. Slot 1 is fiber optic input card, SDVI-1FI and Slot 2 is electrical DVI input card, SDVI-4EI) 4.3.3 Output channel status... - Page 25 5 as shown in Fig 4-8, user must change input output connection. Change Input / output connection of OMM-1000 Fig 4-8 Changing widow position of layout In Fig 4-8, Video source A is output 5 of OMM-1000 and it is also the 1 input to QDVI-O...
- Page 26 A be connected to output 7 of OMM-1000 (It will be the 3rd input of QDVI-O) then, source A will be shown on the bottom left side of layout 5. As the same method, if user allocate source C to output 5 of OMM-1000, it will be shown on the top left side.
-
Page 27: Chapter 5. Web Control Panel Operation
Chapter 5. Web control panel operation The Web control panel operation provides a user-friendly graphic interface and easy access to control OMM-1000, if the PC is connected to Ethernet. But the functions are a little bit limited comparing with other methods. -
Page 28: Chapter 6. Command Input Operation
RS-232 and TCP/IP, Web control through TCP/IP and PC program through RS-232 and UDP. All functions are executed on a basis of a serial command input, but the graphic interfaces on the Web or the PC program make more efficient way to operate the OMM-1000 modular matrix. -
Page 29: Examples Of Command Inputs
▪ User can use capital letters and small letters for commands but cannot mix it like ‘Link’, it must be corrected as ‘link’ or ‘LINK’. ▪ After all input commands, OMM-1000 sends back replies to conform the execution of commands. -
Page 30: Network Setting
▪ It changes resolution and pattern of video generator. ▪ It requests current video generator setting. Table 6.5 describes the resolutions and patterns OMM-1000 supports. By command input operation, user can change these to be used with on-site source for easy installation... -
Page 31: Monitor Output Port Setting
1920x1200@60Hz Horizontal Color Bar scroll (Interval:1.0sec) 1280x720p@60Hz Full White 1920x1080i@60Hz Full Yellow 1920x1080p@60Hz Full Cyan Full Green Full Magenta Full Red Full Blue Full Gray Cross Hatch 16x16 Grayscale bars Table 6.5 Video generator resolutions and patterns Command Description and reply Sets video generator resolution by data #4. -
Page 32: Edid Control Command
EDID=?! Reply: EDID=01OUT.02AUTO03OUT.~16EDF.! Table 6.8 Monitor output setting command examples 6.2.7 Baud rate setting for RS-232 ▪ It sets RS-232 baud rate. OMM-1000 supports 9600, 19200, 38400, 57600, 115200bps. ▪ It requests current RS-232 baud rate. Command Description and reply Sets RS-232 baud rate. -
Page 33: Multi-Viewer Card (Qdvi-O) Setting
1 Large screen (Top side) + 3 small screen (Bottom side) 1920x1080p@60Hz Table 6.10 Supporting resolutions and layouts of QDVI-O The first numeric data in command line represents slot number of output bay of OMM-1000 where QDVI-O is inserted. Command Description and reply Sets output resolution of QDVI-O at 1920x1080P. -
Page 34: Slot Status Request
Description and reply Requests current cards type in input and output bay. OMM-1000 has 4 rows of input and output slots. If the input output cards are configured as below: row: Single DVI input card / 1 Fiber DVI output card... -
Page 35: Control Lock Command
6.2.10 Control lock command ▪ It locks and unlocks the controls such as Web, RS-232, TCP/IP and UDP. ▪ It request open status of controls. ASCII Description Web control lock Web control unlock Data control (UDP, TCP/IP, RS-232) lock Data control (UDP, TCP/IP, RS-232) unlock Key control lock Key control unlock Table 6.14 Locking type and its ASCII data... -
Page 36: Chapter 7. Firmware Update
Chapter 7. Firmware update 1. Please install under Windows XP OS. [Note] Megaboot.exe can’t be installed under Windows 7 and Vista OS. 2. Click ①, Open of ‘File to be programmed in the Flash’ to select directory and file (hex. Format) to be uploaded. - Page 37 3. Connect Service Port in a rear panel of OMM-1000 RS-232 (Comm port) in PC using a supplied download cable (RJ11 to D-Sub 9Pin cable) + RS-232 cable. 4. Select ②, ‘Comm port’ to select communication port of PC for RS-232 communication with OMM-1000.
- Page 38 8. After 3~4 minutes, Application Code Runing!!! message will be shown. Then the firmware upload is completed. 9. Please close a megabox.exe program and reboot OMM-1000 to run it under new firmware.
-
Page 39: Chapter 8. Trouble Shooting
Chapter 8. Trouble shooting Problem Symptom Solution Check the connection of power cord to the OMM-1000 No Power Power LED Off and AC power outlet and that make sure that power switch is in the ON. Check the Input Output DVI cables are firmly connected to each port of OMM-1000. -
Page 40: Chapter 9. Specification
Chapter 9. Specification 9.1 General specification Section Basic Spec. Section Basic Spec. Main VESA resolution & Main vertical frequency from 640x480 up to WUXGA Video (1920x1200), @60Hz Reference video output 9 output video resolutions with 16 patterns resolution WQXGA (2560x1600),@60Hz (Dual link , DisplayPort card only) 1) In/Output Link condition Support : Electric DVI, Dual link DVI, HDMI... -
Page 41: Power Specification
9.2 Power Specification AC Power 1) Input Voltage : AC100-240V ±10%, 50/60Hz 2) Power consumption : 2.2-0.9A 3) Shall have a power cord that complies with regulatory requirements imposed by the country of sale. 4) Incorporate a power cord management system for securing a bundled up cord. External Fuse 1) Input Voltage: AC100-240V ±10%, 50/60Hz 2) Power consumption: 2.2-0.9A... -
Page 42: Compatibility Between Dual Link Dvi In/Output Cards And Other In/Output Cards
9.4 Compatibility between Dual link DVI In/Output cards and another In/Output cards Output DDVI-2EO SDVI-4EO SDVI-1FO HDMI-4EO SDI -4EO Input Dual Pass DDVI-2EI Single Pass Pass Pass Pass Pass SDVI-4EI Pass Pass Pass Pass Pass SDVI-1FI Pass Pass Pass Pass Pass HDMI-4EI Pass... -
Page 43: Chapter 10. Warranty Information
Chapter 10. Warranty Information 1 (One) Year Warranty Opticis warrants this optical DVI extension module to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from Opticis or its authorized resellers. -
Page 44: Chapter 11. Safety Instructions
possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. - Page 45 WARNING: (Detachable) This unit uses plug for US: 120V rating 5-15P type only. This system complies to the above standards only when used with the supplied medical grade power supply. Caution: Make sure the power cord is the correct type that is required in your area. This system has a universal power supply that allows operation in either 100-120V AC or 200-240V AC voltage areas (no user adjustment is required).
-
Page 46: Chapter 12. Maintenance
Cleaning ▪ Turn off the power. ▪ Remove all of the electrical and optical fiber from the Modular matrix chassis, OMM-1000. ▪ Separate each input / output card from the body. ▪ Put the cards on the safety place and keep it carefully. -
Page 47: Chapter 13. Ul /En Statement
Chapter 13. UL /EN Statement This equipment has been tested and found to comply with the limits for medical devices in IEC/EN 60601-1-2 and FCC/CE. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in the vicinity. -
Page 48: Chapter 14. Symbol Definitions
Chapter 14. Symbol Definitions Product Label Symbol Dispose of Old Refer to Serial Consult User Remark Electrical & Electronic instruction number certificate manual certificate Equipment caution Symbol MEDICAL EQUIPMENT WITH RESPECT TO ELECTRIC SHOCK, FIRE, AND MECHANICAL HAZARDS ONLY Remark IN ACCORDANCE WITH UL60601-1/CAN/CSA C22.2 NO. - Page 49 Opticis Locations 16Fl. Kins Tower, 8 Seongnam-daero, 331 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-o, 463-844 Rep. of KOREA Tel: +82 (31) 719-8033 Fax: +82 (31) 719-8032 Factory #501 Byoksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si,Gyeonggi-do, 462-716 Rep. of KOREA Tel: +82 (31) 737-8033 Fax: +82 (31) 737-8039 For order support, please contact your Distributor or Reseller.
