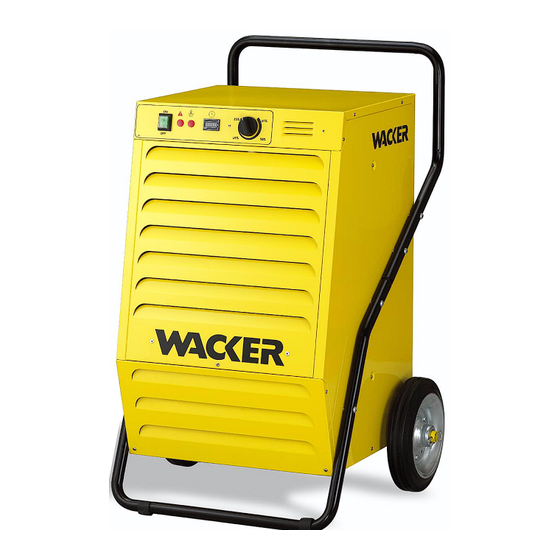

- Page 1 0211675en 10.2006 Air dehumidifier AD ... Operator's manual...
-
Page 3: Table Of Contents
Contents Foreword Control panel Description Operation Installation .....................9 Using the machine .................9 Transport Maintenance Disposal Malfunctions, causes and remedies Electric wiring diagram 10. Technical data EC Declaration of Conformity... - Page 4 Contents...
-
Page 5: Foreword
Foreword Foreword This operator's manual contains information and procedures for the safe operation and maintenance of your Wacker machine. In the inter- est of your own safety and to prevent accidents, you should carefully read through the safety information, familiarize yourself with it and ob- serve it at all times. -
Page 6: Control Panel
Control panel AD ... Control panel Main switch Rotary control moisture meter Control lamp Operating hour meter Control lamp "Water collecting pan full" (not for AD 80) wagtx5700000039en.fm... -
Page 7: Description
AD ... Description Description The air dehumidifiers of the AD series are designed for use in rooms and at locations that can be quickly dried or in which the relative hu- midity must not increase in an unregulated manner. The air dehumidifiers of the AD series consist of a cooling circuit and a fan and condense the water vapor present in the air. - Page 8 Description AD ... For the most efficient and reliable operation, the humidity should be between 40 % and 100 % and the temperature between 3 °C and 40 °C. The moisture meter turns the air dehumidifier on automatically and turns it automatically back off when the set limit value has been reached.
-
Page 9: Operation
AD ... Operation Operation Installation Caution The mains for supplying power to the machine (230 V, single phase, 50 Hz) must be grounded and equipped with a fault current protective switch. Set up the air dehumidifier in the middle of the room to be dehumidi- fied. - Page 10 Operation AD ... Caution The air dehumidifier is equipped with an automatic safety device. This is why the compressor is turned on only 1 minute after you have pressed the main switch (a). * Turn the rotary control (d) of the moisture meter in the counterclock- wise direction until you obtain the desired humidity.
-
Page 11: Transport
AD ... Transport Transport Caution Disconnect the machine from the electric power supply prior to trans- port. Set the main switch to the "OFF" position and pull the power plug from the electrical socket. During transport, do not store the air dehumidifier in the horizontal po- sition. -
Page 12: Maintenance
Maintenance AD ... Maintenance Caution Before you start maintenance procedures, disconnect the machine from the electric power supply. Set the main switch to the "OFF" posi- tion and pull the power plug from the electrical socket. To ensure trouble-free operation, clean the air filter and the internal parts of the air dehumidifier on a regular basis. -
Page 13: Disposal
AD ... Disposal Disposal The air dehumidifier has coolant R407C in the cooling circuit that is un- der pressure and oil in the compressor. When the machine has reached the end of its service life, it must be disassembled and/or re- cycled or scrapped. - Page 14 Disposal AD ... Remove the welded-on connectors of the purging and suction hoses and loosen the fastening screws. Lift the compressor, drill a hole in the bottom side of the housing and tip the machine to empty the oil into a container or a barrel.
-
Page 15: Malfunctions, Causes And Remedies
AD ... Malfunctions, causes and remedies Malfunctions, causes and remedies Malfunction Cause Remedy Check the function and position of the main switch No electric power Check the ratings of the electri- cal power line (230 V 1 ~ The machine does not start 50 Hz) The moisture meter is incor- Set the moisture meter so that... -
Page 16: Electric Wiring Diagram
Electric wiring diagram AD ... Electric wiring diagram Fan motor Defrost probe Overheating probe Sensor for the room tem- Compressor Condenser perature Fuse (500 mA) Switch "Water collecting Operating hour meter pan full" Main switch Control lamp "Water col- Control lamp "Malfunc- lecting pan full"... - Page 17 AD ... Electric wiring diagram Fan motor Defrost probe Overheating probe Sensor for the room tem- Compressor Condenser perature Fuse (500 mA) Operating hour meter Main switch Control lamp "Water col- Control lamp "Malfunc- Moisture meter lecting pan full" tion" Control lamp "Voltage"...
-
Page 18: 10. Technical Data
Technical data AD ... 10. Technical data Unit AD 22 AD 52 AD 80 Item number 0610130 0610131 0610132 0610139 0610140 40 – 100 Relative humidity [°C] 3 – 40 Temperature Air flow performance [m³/h] Dehumidifying perfor- [l/24h] mance Coolant R407C Amount of coolant 1600... -
Page 19: Ec Declaration Of Conformity
EC Declaration of Conformity Wacker Construction Equipment AG, Preußenstraße 41, 80809 München certifies that the construction machine: Type: Air dehumidifier Type AD 22 AD 52 AD 80 Machine type number 0610130 0610131 0610132 0610139 0610140 Installed electrical output 1000 1350 fulfill the requirements of the directive 89/392/EC with amendments 91/368, 93/44, 93/68 and 98/37. - Page 20 Wacker Construction Equipment AG Preußenstraße 41 80809 München Tel.: +49-(0)89-3 54 02-0 Fax: +49-(0)89-3 54 02-390 Wacker Corporation - P.O. Box 9007 - Menomonee Falls, WI 53052-9007 - Tel.: +1 (1) 262-255-0500 - Fax: +1 (1) 262-255-0550 - Tel.: 800-770-0957 Wacker Machinery Ltd.- Skyline Tower, Suite 2303, 23/F, 39 Wang Kwong Road, Kowloon Bay, Hong Kong -Tel.: +852 2406 6032 -Fax: +852 2406 6021...
