LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8
LK Room Temperature Control ICS-RF8
Design

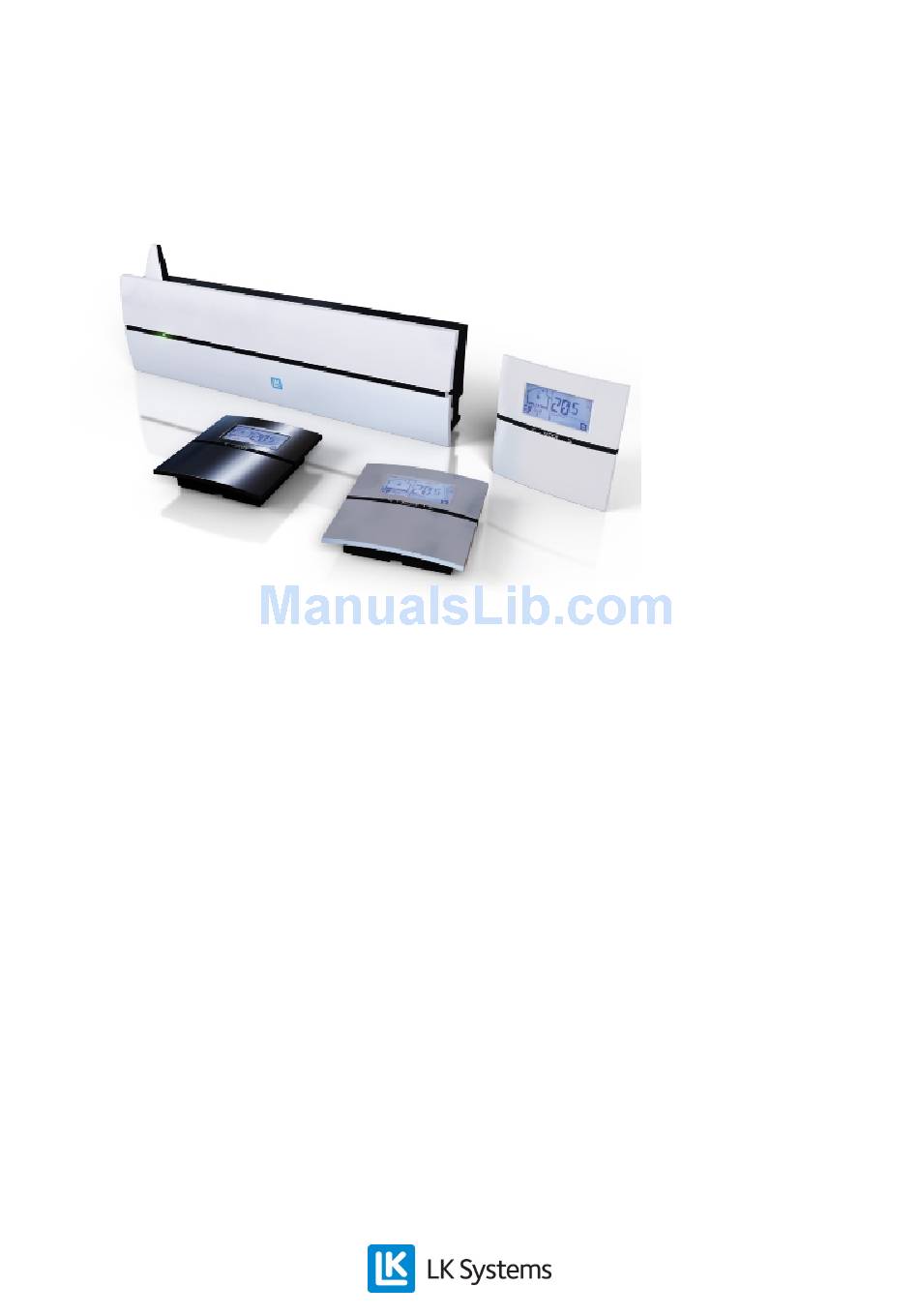

LK Room Temperature Control ICS-RF8 is a wireless control system designed for LK Floor Heating. LK ICS-
RF8 consists of LK Room Thermostats ICS-RF, an LK Receiver unit ICS RF8 and LK Actuators.
Function
Room thermostats regulate the temperature of each room (zone) via wireless signal transmission to the receiving
control unit. The actuators for each room/zone are controlled by the receiver unit.
The system has several "smart features" such as adaptive weekly programming, holiday functions, the ability
to connect external sensors, external temperature set back via GSM switches, and more. For further information,
please see the In-depth description for LK ICS-RF8.
The system benefits from:
1
EN.33.C.104.1012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICS-RF8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LK Systems ICS-RF8

Summary of Contents for LK Systems ICS-RF8

  • Page 1 LK Room Temperature Control ICS-RF8 Design LK Room Temperature Control ICS-RF8 is a wireless control system designed for LK Floor Heating. LK ICS- RF8 consists of LK Room Thermostats ICS-RF, an LK Receiver unit ICS RF8 and LK Actuators. Function Room thermostats regulate the temperature of each room (zone) via wireless signal transmission to the receiving control unit.

  • Page 2: Installation Instructions

    LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 • Timeless Scandinavian design • Thermostats with LCD display • Self-modulation technology as a standard • Thermostats in gloss white, gloss black or silver • Remote control via mobile phone (as addition).
  • Page 3 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Quick Guide – programming the thermostats Check that the radio link cable is connected to the receiver's RF input Press the L key on the receiver unit for at least 3 seconds, the L-LED will light green.

  • Page 4: Holiday Function

    LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Self-modulation technique To ensure that LK floor heating is regulated as energy efficiently as possible, LK ICS uses self-modulation technology. Self-modulation (self-learning) ensures that the flow in the floor heating circuits is continuously optimized based on the room's needs;...
  • Page 5 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Mounting in the manifold cabinet At delivery, the receiver unit is fitted with a short antenna cable for internal mounting of the radio link. If the receiver unit is installed in a sheet metal manifold cabinet, it is recommended that the radio link should be fixed outside the cabinet.
  • Page 6 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Channels 1-8, are used to select the desired channel for adaptation. (4) Thermostat input (illus. 5) The receiver is intended primarily for wireless communication with LK Thermostat ICS-RF; however due to the ICS systems flexibility, the LK Thermostat ICS-W (hard-wired connected communication) can also be connected to the receiving device using twin-core cable size 0.5mm².
  • Page 7 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 to prevent the pump from seizing during long downtime (e.g. during the summer). NOTE: wiring/connection to the relay may only be performed by a qualified electrician. See diagram below.
  • Page 8 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 WARNING! RISK OF ELECTRIC SHOCK! Disconnect all incoming power to the device before the high voltage lid is opened. Circuit diagram for connecting the heat source Anti tension track (illus. 11) An anti-tension track is built in to the receiver unit to protect cables connected to the actuators thermostats, BUS and cables for remote control.
  • Page 9 It is also possible to update the device software via the MEM port. Instructions are supplied with all software updates that may be necessary. GW input (illus. 16) Input for real-time logging of device. This feature can only be used by LK Systems because it requires special programs and expertise. RF input (illus. 17) Input for Radio link.
  • Page 10 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Radio link (illus. 18) LK Thermostat ICS-RF Function description Thermostats are positioned in a room/zone to control air (comfort) heating. The thermostat display shows the current room temperature as standard. The set or desired temperature is displayed when the left or right arrow is pressed once.

  • Page 11: Description Of Display

    LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Description of the keys and their functions Left arrow = decrease value (1) Mode = confirm or access the menus (2) Right arrow = increase value (3) Description of display...
  • Page 12 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Heat on/off and minimum and maximum limit Number of the receiver unit and error code Room temperature measurements enabled OK symbol Indicates constantly disconnected weekly program Temperature indicator...
  • Page 13 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 System clock The unit is equipped with a system clock. For the weekly program to function, the unit's system clock must be set. This can be performed from any thermostat in the system. NOTE: The time set applies to all the thermostats in the system.
  • Page 14 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 NOTE: The above programming applies only to that specific room thermostat. Repeat the above steps for all other thermostats. Weekly program – week days/weekends The unit can be programmed for every day of the week (1-7) or programmed for weekdays & weekends (1-5 &...
  • Page 15 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Press Mode until flashes, confirm with Mode. Press right arrow until AdPt (adaptive) is displayed, confirm using Mode. Select ON/OFF using the left/right arrow, confirm using Mode. The function starts at the next change from Economy to Comfort.
  • Page 16 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Press Mode until flashes, confirm with Mode. Select right arrow until Holi (Holiday) is displayed, confirm using Mode. Set the desired temperature using the left/right arrow, confirm using Mode.
  • Page 17 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 NOTE: Activated back light affects the life expectancy of the battery. Key lock It is possible to lock the thermostat keys to prevent unauthorized changing of the thermostat settings.
  • Page 18 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Press Mode until flashes, confirm with Mode. Press the right arrow until SENM (Sensor Mode) is shown in display, confirm with Mode. The display shows SEN and the icon on the left flashes.
  • Page 19 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Thermometer only flashes = room temperature only. Confirm with Mode. The external sensor is not active. The thermometer and MAX flashes = room temperature with the floor set at maximum limitation.
  • Page 20 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Resistance table Temperature Resistance kΩ +- 5% 0 °C 32,66 5 °C 25,40 10 °C 19,90 15 °C 15,71 20 °C 12,49 25 °C 10,00 30 °C 8,05 35 °C...

  • Page 21: Delete Channels

    LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Delete channels If required, all initialised channels can be deleted, for further information please see Reset section. Delete individual channels If necessary, a single channel/thermostat can be deleted from the receiver unit.
  • Page 22 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 2. BUS – placing of a radio link When multiple receiving devices are connected in a network only one radio link is used. The other units’ radio links must be disconnected for the network to function. Place the radio link at the beginning or end of the network.

  • Page 23: Troubleshooting

    LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Press the L key for at least three seconds on optional receiver unit The unit’s L-LED lights up green. This unit is now numbered as No 1. Mark the inside of the unit’s lid as number one with a marker pen or other.
  • Page 24 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Error Description Action No signal Automatic reset transmission has occurs when the occurred for 60 signal arrives. minutes. Check the signal strength. Short circuit of The device actuator.
  • Page 25 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Error Description Action No communication Check the in the BUS (from connection points the network). Taken from the info.txt file Receiver unit is not numbered (from the network). Taken from the info.txt...

  • Page 26: System Limitations

    LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 NOTE: A non-adapted repeater flashes green every 3 seconds. Reset Resetting of LK Receiver Unit ICS-RF8 If necessary all adapted channels can be erased from the receiver unit: Press A and channel 8, together for at least 5 seconds.
  • Page 27 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Limitations Notes Number of thermostats per ICS-RF8 Number of actuators per ICS- Number of actuators per It is possible to physically connect two per channel ICS contact. Number of radio links per With connected BUS.

  • Page 28: Technical Data

    LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Article overview Article number Name Comments 2417302 LK Thermostat ICS-RF High gloss white 2417303 LK Thermostat ICS-RF High gloss black 2417304 LK Thermostat ICS-RF Silver grey 2417307 LK Receiver Unit...
  • Page 29 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Article name LK Repeater ICS Article number 2417321 Supply Voltage 230 V AC Radio frequency 868 Mhz Dimensions 120 x 35 x 30 Protection class IP20 Operating temperature + 1 °C - + 50 °C...
