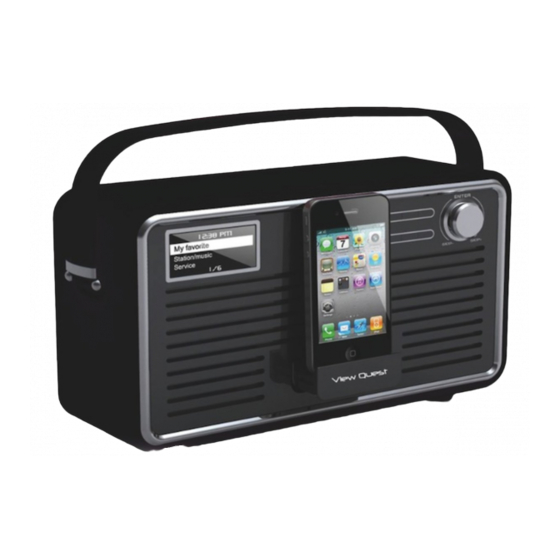

View Quest Retro DAB Operation Manual

Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Where to put your radio

It is important that you consider carefully in advance where your radio will be situated and make sure
that it is:
* On a flat and stable surface
* Within 1.4metres of a power socket (if using mains power)
* Where you can fully extend the telescopic aerial
* Away from bright sunlight or heat sources, such as a radiator
* Not in a humid or very damp place such as a bathroom

Setting up

Connect the mains power lead into the socket on the back of the radio (DC IN) and plug the power
adaptor into the mains power wall socket and switch on.
Fully extend the radio aerial in a vertical position to obtain the maximum signal strength.
When switching on for the first time, slide the power switch on the back of the radio to "ON", "Welcome
to Digital Radio" will be displayed. Then it will show the clock. If don't do further operation, the backlight
will turn off and it enters into Standby Mode. Press

Functions

1. Mode: DAB (BAND
Ⅲ
2. LCD:2x16 dots matrix; black background white fonts, negative LCD
3. Power Supply: AC INPUT 100-240V ; DC_OUTPUT 5V/2A
4. Output Power: 1.5W X2
5. STANDBY MODE Show Clock

Keys and controls

1.
2.
3. PRE
4.
5.
6.
7. MODE
8. INFO
9.
10. VOL-
11. VOL+

DAB Operation

1. Connect the mains power lead into the socket on the back of the radio (DC in 5V) and plug the
Retro DAB Operation Guide
5A-13F), FM (87.5MHz-108MHz), IPOD, AUX_IN.
--- Standby Power ON or OFF
---Scan stations
---Store stations selected
---Scroll up
--- Confirm and pause
---Scroll down
---Switch among different modes
--- Information
---Alarm/snooze//sleep
--- Decrease volume
--- Increase volume
button, it starts working.
m ultifunction button
（
）
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Retro DAB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for View Quest Retro DAB

Summary of Contents for View Quest Retro DAB

  • Page 1: Dab Operation

    Retro DAB Operation Guide Where to put your radio It is important that you consider carefully in advance where your radio will be situated and make sure that it is: * On a flat and stable surface * Within 1.4metres of a power socket (if using mains power)
  • Page 2 power adaptor into the mains power wall socket and switch on. Switch to DAB mode, press “MODE” button repeatedly until the display shows “Switch to DAB”. Your radio will automatically begin to Quick SCAN DAB stations. A progressive bar will show the progress of the scan and the number of stations found during the scan will also be displayed.
  • Page 3 “Preset Empty 1” will be shown on the lower line of the screen, and number “1” will flash. Press “ ” or “ ” to select numbered location to store, then press “ ” to store the station. Frequency will be displayed on the upper line of the screen, and “Preset x Stored”...
  • Page 4 flashes on the lower line. Press “ ” or “ ” and choose “ON”. Then press “ ” to confirm your selection and enter into time setting, current time will be displayed on the left side of the screen. Alarm time “00 00”...
  • Page 5 Take the product to a recycling facility that accepts electrical and electronic products. Check with your Local Authority for your nearest recycling centre. For further details, please contact View Quest 9-10 Mill Lane Alton...
