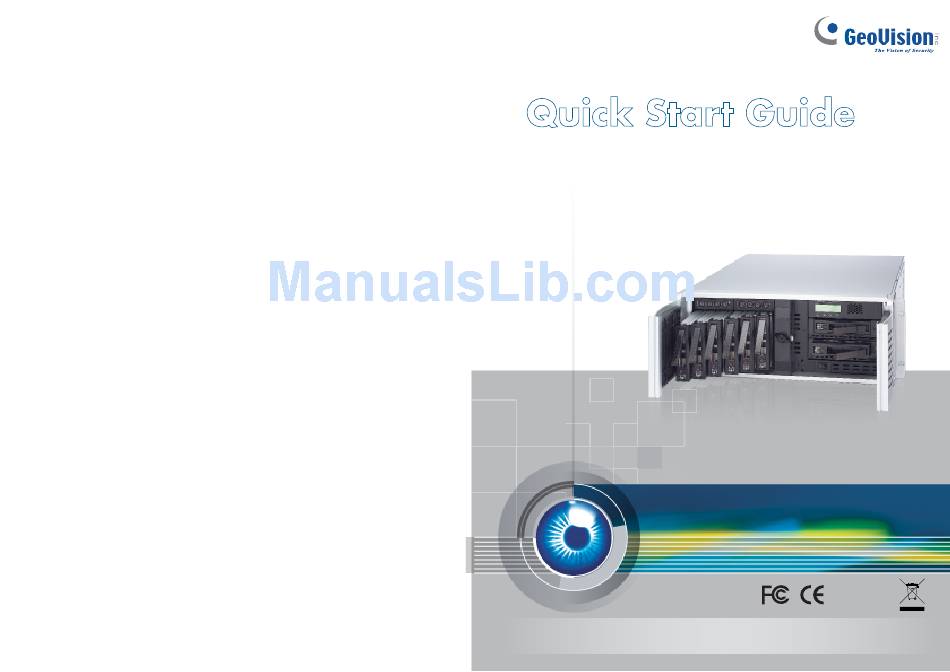

Quick Start Guide
The Vision of Security
GV-Storage System
This guide is designed to assist the new user in getting immediate results from the GV-Storage System. For advanced
information on how to use the GV-Storage System, please refer to GV-Storage System User's Manual.
© 2008 March GeoVision, Inc. All rights reserved.
RoHS
SRV1-QG-1
Advertisement
Table of Contents
Related Manuals for GeoVision GV-Storage System
Summary of Contents for GeoVision GV-Storage System
- Page 1 GV-Storage System RoHS This guide is designed to assist the new user in getting immediate results from the GV-Storage System. For advanced information on how to use the GV-Storage System, please refer to GV-Storage System User’s Manual. © 2008 March GeoVision, Inc. All rights reserved.
-
Page 2: Package List
Working with GV Products GV-Storage System AC Power Cord x 2 GV-Storage System can work in conjunction with these GV products to save data: Lock Key x 2 GV-System version 8.2, GV-Video Server version 1.4, GV-Compact DVR and GV-NVR. Self-Stick Rubber Pad x 4 GV-Storage System User’s Manual on software CD... -
Page 3: Usage Notice
If you remove the hard drive in the wrong slot, you could suffer data loss. 1 2 3 4 5 6 DVR/NVR DVR/NVR DVR/NVR DVR/NVR For details see 3.3 Installing on the Network in GV-Storage System User’s Manual. -
Page 4: Step 2 Turn On The Power
Step 2 Turn on the Power Step 3 Login Step 2 Turn on the Power Step 3 Login On the management server, open the browser and enter the default IP: Turn on the two power switches on the rear panel. http://192.168.0.200 Turn on the main power switch on the front panel. - Page 5 Part I: Use “Quick Install” Part II: Create an independent volume for each host Select Quick install, and choose RAID level from the drop-down list. Click Next. In this example, three UDVs (user data volume) are created in one VG, and assigned for three different hosts DVR system, Video Server and Compact DVR for data storage.
- Page 6 Create UDV (User Data Volume). Attach LUN to UDV. In / Volume config / User data volume, select a UDV and press Attach. Select / Volume config / User data volume. Enter Host, which is an initiator node name for access control. Choose Click Create.
- Page 7 CHAP logon information and type a valid username and target secret (password). Click OK. Type the IP address of GV-Storage System, and click OK. By default, the IP address of iSCSI data port 1 is 192.168.1.1, and iSCSI data port 2 is 192.168.2.1. If both data ports are used for connection to the DVR host, add two data port IPs respectively.
- Page 8 When the connection with the storage system is established, the status changes Click Advanced. into “Connected”. At this step, you can already use the iSCSI disk by the operation similar to the case to increase a local disk. Refer to step 13. If the iSCSI data port 2 is used for connection to the DVR host, click Details and keep on the following steps.
- Page 9 Click the Windows Start button, point to Programs, click GV folder and select Hot Swap HDD Tool. For details see Chapter 7 About iSCSI Initiator in GV-Storage System User’s Manual. Right-click the iSCSI drive, and select Add for recording. Select a storage group from Add to drop-down list. Click OK to automatically configure the iSCSI drive to the recording path.
