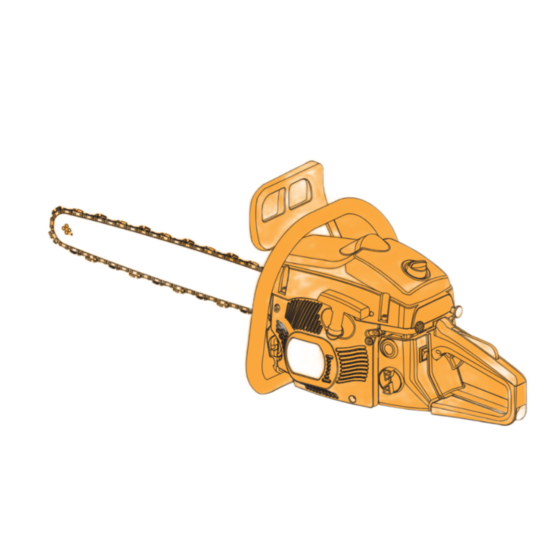

Kiam Sherwood KM58-20
Petrol Chainsaw

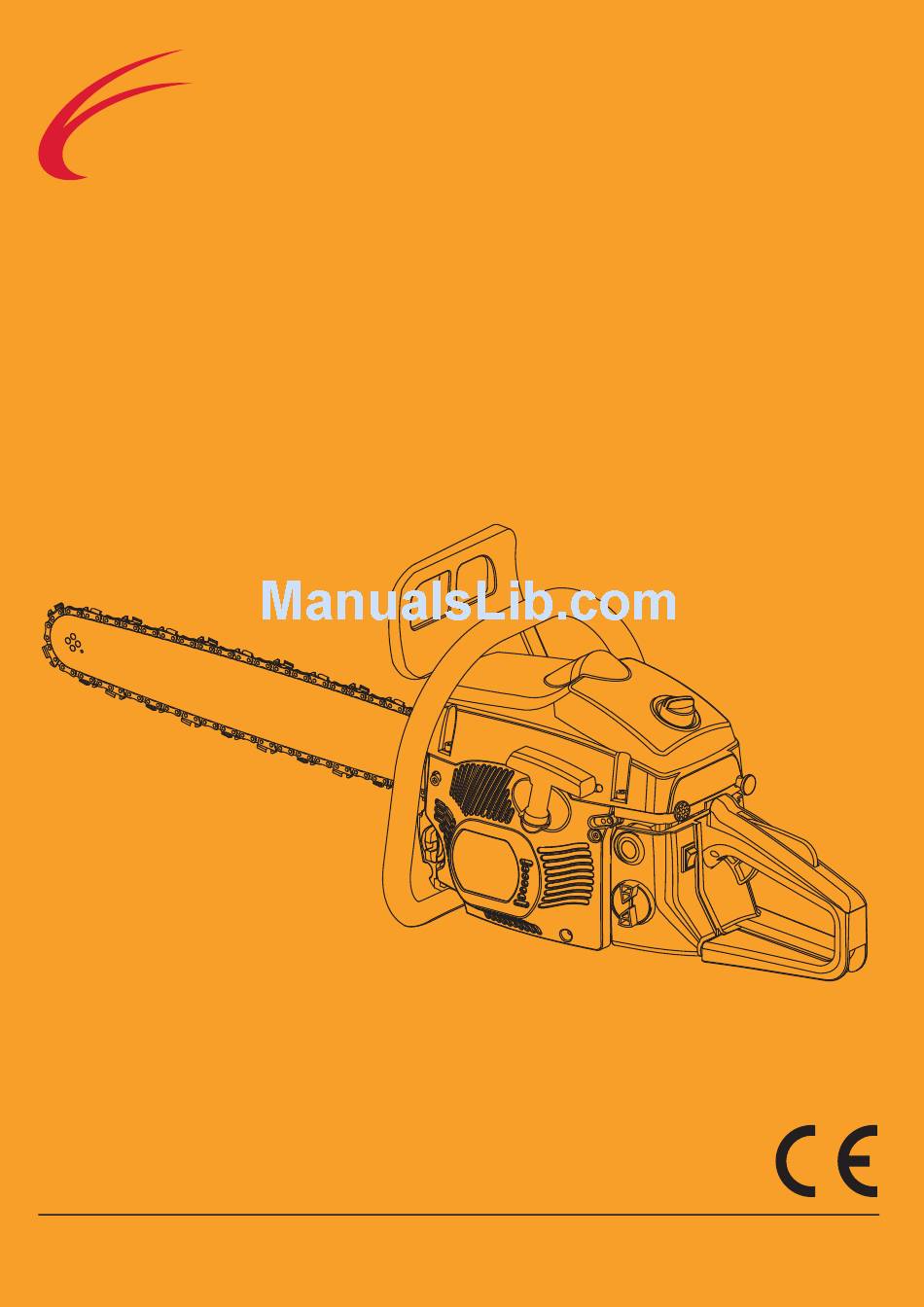

Instructions Manual
Read instructions manual before use!
Equipmart Ltd
Kiam House
Birchill Road
Knowsley Ind. Park North
Merseyside
L33 7TD
United Kingdom
T: 0044 151 548 5500
© Equipmart Ltd
F: 0044 151 548 5599
www.kiamproducts.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sherwood KM58-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for KIAM Sherwood KM58-20

  • Page 1 Kiam Power Products Kiam Sherwood KM58-20 Petrol Chainsaw Instructions Manual Read instructions manual before use! Equipmart Ltd Kiam House Birchill Road Knowsley Ind. Park North Merseyside L33 7TD United Kingdom T: 0044 151 548 5500 © Equipmart Ltd F: 0044 151 548 5599...
  • Page 2: Table Of Contents

    Contents Parts location ................Specifications ................Warning labels on the machine ..........Symbols on the machine ............For safe operation ..............Fuel ................... Operation .................. Maintenance ................Storage ..................Disposal ..................Troubleshooting guide .............. Spare parts ................Warranty ................... SAFETY FIRST Instructions will contain warnings within this manual, they will be marked with a symbol concern- ing critical points which must be taken into consideration to prevent any possible serious bodily...
  • Page 3: For Safe Operation

    1. For safe operation 1. Never operate a chain saw when you 10. Keep all parts of your body away from are fatigued, ill, or upset, or under the the chain when the engine is running. influence of medication that may make you drowsy, or if you are under Before you start the engine, make sure the influence of alcohol or drugs.
  • Page 4: For Safe Operation

    1. For safe operation Guard against kickback, kickback is 24. Never touch the cover, guide bar, saw the upward motion of the guide bar chain or nut with bare hands while the engine is in operation or immedi- which occurs when the chain at the ately after shutting down the engine.
  • Page 5: Symbols On The Machine

    2. Symbols on the Machine WARNING For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications, please be careful not to make a mistake. The opening to refuel “PETROL MIX” Position: Fuel cap The opening to top up chain oil Position: Oil cap Setting the switch to the “...
  • Page 6: Installing Guide Bar And Saw Chain

    3. Installing Guide Bar and Saw Chain A standard chainsaw package contains the items as illustrated. Engine unit Screwdriver for Plug wrench carburetor adjustment Bar protector Guide bar Spike and mountaing screws Chain Open the box and install the guide bar and the chain 5.
  • Page 7: Fuel

    3. Fasten the fuel cap securely and wipe up any fuel • The engines are lubricated by oil specially formulated spillage around the unit. for air-cooled 2-stroke petrol engine use. If Kiam 2-stroke oil is not available, use a red semi-synthetic 2-stroke oil. 1. Select clear flat ground for fueling.
  • Page 8: Operating The Engine

    5. Operating the Engine WARNING WARNING • It is very dangerous to run a chainsaw that mounts • Keep clear of the chain as it will start rotating upon starting of engine. broken parts or lacks any parts. Before starting engine, make sure that all the parts including bar and chain are installed properly.
  • Page 9: Operation

    5. Operating the Engine 1. H and L needles are restricted within the number of STOPPING THE ENGINE turn as shown below. 1. Release the throttle lever to allow the engine to idle for a few minutes. H needle : 2.
  • Page 10: Maintenance

    6. Sawing WARNING BUCKING AND LIMBING Before proceeding to your job read the section “For WARNING Safe Operation”. It is recommended to first practice Always ensure your foothold. Do not stand on sawing easy logs. This helps you to get accustomed the log.
  • Page 11: Air Filter

    7. Maintenance WARNING PERIODICAL SERVICE POINTS Before cleaning, inspecting or reparing the unit, 1. Cylinder fins make sure that the engine has stopped and is cool. Dust clogging between the cylinder fins will cause overheat- Disconnect the spark plug to prevent accidental ing of the engine.
  • Page 12: Troubleshooting Guide

    9. Troubleshooting Guide Case 1. Starting failure Case 3. Oil does not come out WARNING Check oil for sub- Replace. standard quality. • Make sure the icing prevention system is not on. Check fuel for water Replace with proper or substandard mix- fuel.
  • Page 13: Disposal

    10. Specifications Power unit: Cutting head: Displacement (cm ..........58.0 Guide bar type: ........Sprocket nose Fuel: ......Mixture (Petrol 40 : 2-Stroke oil 1) Guide bar size (inch / mm): ......20 / 500 Fuel tank capacity (cm ): ........550 Chain pitch (inch / mm): ......
  • Page 14: Warranty

    The purchaser is responsible for all related expenses (parts, labour and return costs) if the product is not covered under warranty. Original receipt must be included when returning to: Kiam Power Products Kiam House Birchill Road Knowsley Ind. Park North...
