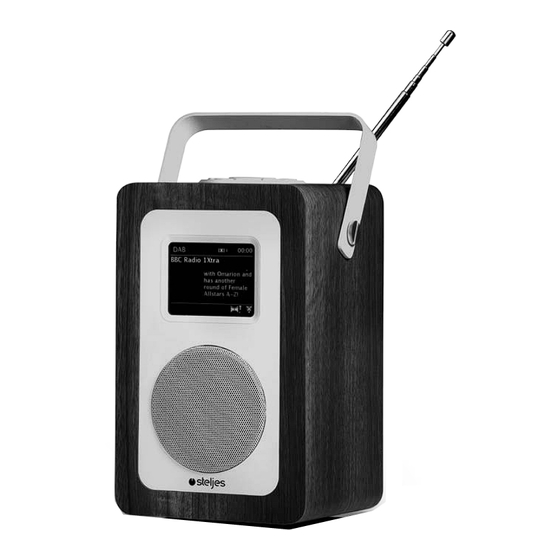

Steljes Audio SA60 User Manual

Streaming portable radio

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

SA60

Streaming Portable radio

Table of Contents

Need help?

Do you have a question about the SA60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steljes Audio SA60

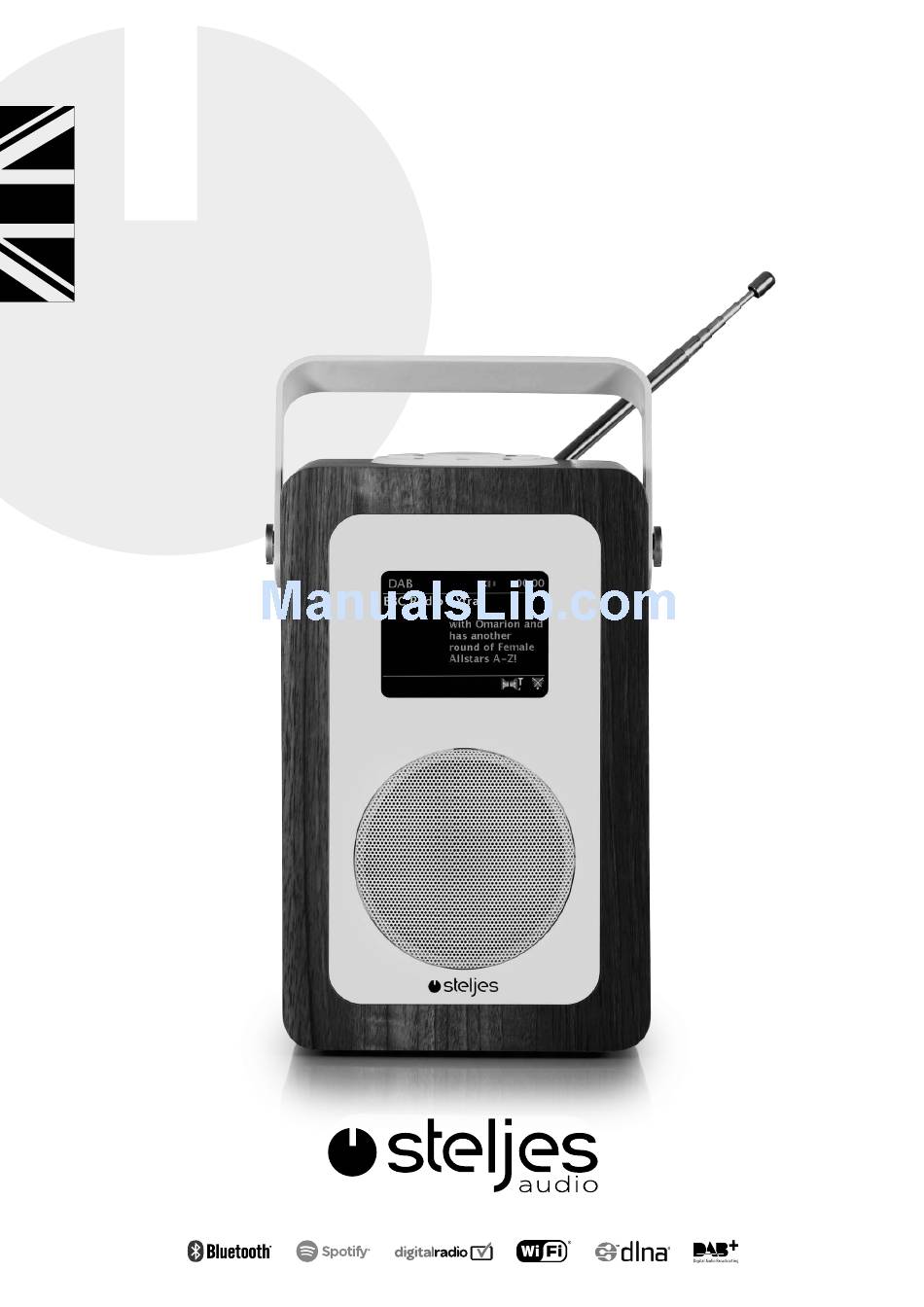

Page 1 SA60 Streaming Portable radio...
Page 2 2 Steljes audio . Sa60 User guide...
Page 3: Table Of Contents
Streaming Portable radio ContentS important information ............. main Controls ..............Spotify ................Connections ..............display ................operation ..............error messages .............. troubleshooting ............. limited Warranty ............Specifications ..............beautifully engineered & designed in great britain Steljes audio . Sa60 User guide 3...
Page 4: Important Information
10cm should be kept around the apparatus for ventilation. 4 Steljes audio . Sa60 User guide...
Page 5 CautIon rIsk of eleCtrIC shoCk do not open! cAUTION: TO REDUcE ThE RISk Of ELEcTRIc ShOck, DO NOT REMOVE cOVER (OR BAck). NO USER SERVIcEABLE PARTS INSIDE. REfER SERVIcING TO QUALIfIED SERVIcE PERSONNEL. Steljes audio . Sa60 User guide 5...
Page 6: Main Controls
. 9. tUne-/: Previous: Press to select the 2. StandbY: this will power on the Sa60 previous station or track via bluetooth or return it to standby mode. Can also mode.
Page 7: Spotify
Sa60. Use the preset buttons (as shown on page 6) on the top of the Sa60. note: When you stop Play back on your Spotify device, the Sa60 will show “no media” in the display. to get back to internet radio, dab, Fm, music Player or aux, you need to press the mode button on the Sa60.
Page 8 Press Sa60 to select your radio and it will start playing from you Sa60. note: the radio shows as “Sa60 xxxxx” (12-digit number is the maC address of the radio) in Spotify app. to personalise this you can follow the steps below: on the radio: Press menu and select main menu>...
Page 9 Spotify app will continue playback via the Sa60. Spotify Connect is a cloud based service, therefore you do not need your Smartphone or tablet to be on the same wireless network to control audio playback after the radio is enabled.
Page 10: Connections
ConneCtIons ANALOGUE 1. dC power in 2. lan for ethernet 3. aux in 4. line out 5. Headphones out 6. battery compartment (open compartment to locate the battery Power switch) 10 Steljes audio . Sa60 User guide...
Page 11: Display
Sa60 enters the selected mode and tries to start playing the last station or track that was playing in that mode. if this is not possible, the Sa60 tries to connect to the selected source by scanning for stations, networks, or prompting for user input as appropriate.
Page 12 MENUS the Sa60 has three types of menu. Use the select control to scroll through and select the options. as scroll bar on the right of the screen shows if there are further options above or below those currently visible.
Page 13 Some menus, for example the System settings menu, have several sub menus. Steljes audio . Sa60 User guide 13...
Page 14: Operation
Select Yes to start the setup wizard. if you choose no, the next screen asks if you would like to run the wizard next time the Sa60 is started. the system then starts without configuring time/date and network settings and enters the main menu.
Page 15 Note: that if you are updating the time from dab or Fm, the daylight savings option has no effect on the clock’s time. the Sa60 will auto-update from the selected source when time information is available. Manual set if you select no update the set up wizard will prompt you to set the time and date manually.
Page 16 Sa60 is compatible with all common network protocols and encryption methods, including Wi-Fi Protected Setup (WPS). to connect the Sa60 to your network, you will require a Wi-Fi wireless router, together with a password key. if the network is open (non-encrypted), the Sa60 will connect with no need for further set up;...
Page 17 • Push button > the Sa60 prompts you to press the connect button on your router. the Sa60 will scan for the network and connect automatically. • Pin > (code number) the Sa60 generates an 8-digit Code number which you enter into the wireless router, access point, or an external registrar (e.g.
Page 18 You can then choose from a variety of preset modes or create your own, with custom bass, treble and loudness settings. Follow these steps: LANGUAGE the default language of the Sa60 is set to english. to change, select menu > System settings > language > then select your language. 18 Steljes audio . Sa60 User guide...
Page 19 Sa60 with the portal, switch to internet radio mode as described in Section 4, and then obtain your radio’s unique portal access code by selecting menu > Station list > Help >...
Page 20 SETTING UP A MUSIc SERVER in order for the Sa60 to play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like the Sa60 to play music from a shared media library navigating through tag menus such as artist, album or genre.
Page 21 Printers window a icon *) will appear and you are now ready to stream your Windows media music files to the Sa60. *) to change the name of your device, right click on icon and choose properties. then choose UPnP and click on “device webpage”.
Page 22 INTERNET RADIO MODE the Sa60 can play thousands of radio stations and podcasts from around the world through a broadband internet connection. When you select internet radio mode, the Sa60 contacts the Frontier Silicon internet radio portal to get a list of stations, organized into different categories like Country, most popular and genre.
Page 23 Preset briefly, then select one of the listed preset stations. When a preset station is playing, it shows Pn (P1, P2 etc) in the bottom of the screen. note: operation of presets is identical for internet radio, dab and Fm. Steljes audio . Sa60 User guide 23...
Page 24 ‘listen again’ programmes are accessible through the Podcast menu, for example menu > Podcasts > location > europe > United Kingdom > all shows > bbC radio 4 > You and Yours > 20/10/2008 - october 2010. 24 Steljes audio . Sa60 User guide...
Page 25 You can add your own s tations via the portal. these added stations are accessible from the Sa60 by selecting menu > Station list > my added stations > [Station]. Steljes audio . Sa60 User guide 25...
Page 26 > main menu > music player once in music player mode, press menu , then select Shared media. note: the Sa60 does not support USb playback as shown in the picture. 26 Steljes audio . Sa60 User guide...
Page 27 Select. a short press plays the track immediately and a long press adds the track to the playlist. You can also add entire albums to the playlist. the Sa60 plays either the selected track or the playlist. Steljes audio . Sa60 User guide 27...
Page 28 > Prune servers > Yes PLAyLISTS the Sa60 holds a queue of up to 500 tracks in the playlist. Playlist tracks can be mixed from multiple UPnP servers. to manage the playlist, select menu > my playlist.
Page 29 USING ThE “PLAy TO” fEATURE IN WINDOWS 7 TO STREAM MEDIA one of the new Windows 7 features includes a feature called “Play to” and this lets your PC running Windows 7 control the Sa60 to push media and use as a universal remote control for your media collection.
Page 30 USE “PLAy TO” ELSEWhERE IN WINDOWS 7 outside of Windows media Player, you can stream media to the Sa60 with “Play to” by right- clicking music files. to select music files and stream them to the Sa60, follow these steps: Click the files you want to stream to the Sa60.
Page 31 > main menu > dab. Steljes audio . Sa60 User guide 31...
Page 32 ScANNING fOR STATIONS the first time you select dab radio mode, or if the station list is empty, the Sa60 stereo automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons: •...
Page 33 Sa60, select menu > drC, and then drC high, drC low or drC off. note: the Sa60’s drC setting does have any effect if drC data is not included in the broadcast.
Page 34 > main menu > Fm. SELEcTING STATIONS to find a station, press Select. the frequency display starts to run up as the Sa60 scans the Fm band. alternatively, you can scan up or down by pressing and holding the >> or << buttons or tune manually with quick presses, or by turning the Select control.
Page 35 Connect the external audio sourceto the aux in 3.5 mm stereo socket. either press mode until the display shows aUX in or select menu> main menu > aUX in. adjust the volume of the Sa60 (and, if necessary, the audio source device) as required. Steljes audio . Sa60 User guide 35...
Page 36 You should not have to pair your device again. depending on your device, you may need to make multiple attempts at pairing and / or connecting to the Sa60, but please give your device adequate time to pair or connect before repeating the process.
Page 37 Set the eQ off, the Sound Check off, and the Volume limit off. if you encounter a problem pairing, press the small arrow to the right of “Sa60” on the display of your device and select “Forget this device”, then repeat the pairing process.
Page 38 Snooze. You can change the snooze period with the Select control if you like. the radio returns to standby for the set period, with the silenced alarm icon flashing. 38 Steljes audio . Sa60 User guide...
Page 39 You can either check manually, or set the Sa60 to check periodically automatically (this is the default). if the Sa60 detects that newer software is available, it asks if you want to go ahead with an update.
Page 40: Error Messages
UPnP servers found found Service not no dab reception available (dab) Unauthorised access not granted by allow access for the Sa60 in UPnP server UPnP server settings Update failed Software upgrade failed 40 Steljes audio . Sa60 User guide...
Page 41: Troubleshooting
System settings > network > View settings and add to router list. note: the Sa60 has separate maC addresses for wired and wireless networks; only the current network adaptor method address is displayed, but the other address can be obtained by changing the first pair of digits between ‘00’...
Page 42 RESET Performing a factory reset will remove all user settings and revert to the Sa60 shipping values, so time / date, network configuration and presets are lost. However, the radio’s current software version is maintained, as is registration with the internet radio portal. internet radio favourites therefore remain unless you re-register your radio with another account on the portal website.
Page 43: Limited Warranty
& support Please contact your local authorised dealer or reseller. email: info@steljesaudio.co.uk Steljes audio . Sa60 User guide 43...
Page 44: Specifications
SPEcIfIcATIONS Steljes Sa60 dab / dab+ / Fm / bluetooth Spotify Connect UndoK app Control (ioS and android) 10 P resets each for dab / dab+ / Fm 2.8 inch tFt Colour display Clock / alarm / Snooze Functions aux-in 3.5mm jack Headphone out 3.5mm jack...
