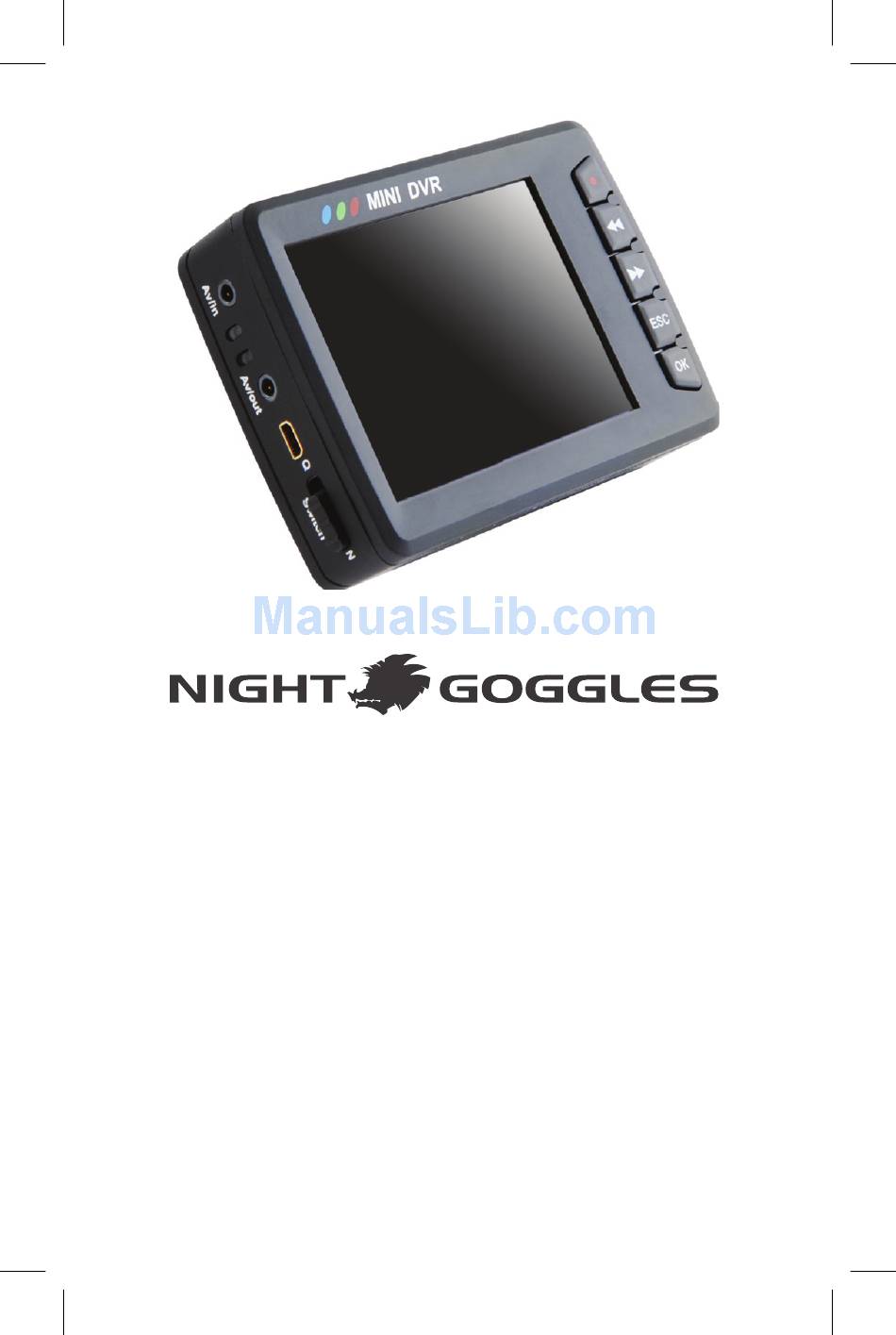

- Page 1 MINI RECORDER USER MANUAL nightgoggles.com...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS WARNING TRANSFERRING VIDEO OR AUDIO WHILE THE SYSTEM HAS A LOW BATTERY MAY RESULT IN FILE TRANSFER ERRORS, DATA LOSS, OR FILE CORRUPTION. CAUTION THIS IS AN ELECTRONIC DEVICE AND THERE IS RISK FOR SHOCK IF USED IMPROPERLY. DO NOT REMOVE DVR HOUSING. - Page 3 SAFETY INSTRUCTIONS DO NOT USE DAMAGED BATTERY OR CHARGER. OVERCHARGING WILL SHORTEN THE LIFE OF THE BATTERY. THIS DEVICE USES A RECHARGEABLE BATTERY THAT WILL NEED TO BE REPLACED OVER TIME. AFTER PROLONGED USE, IF BAT- TERY DOES NOT HOLD A CHARGE OR CHARGE FULLY, REPLACE BATTERY.
-
Page 4: Device Diagram
DEVICE DIAGRAM 1. POWER BUTTON 8. SPEAKERS 2. RECORD BUTTON 9. VIDEO/AUDIO INPUT 3. SELECT KEY 10. CHARGING INDICATOR 4. SELECT KEY 11. RECORDING INDICATOR 5. ESC BUTTON 12. VIDEO/AUDIO OUTPUT 6. ENTER BUTTON 13. MINI USB PORT 7. MICRO SD CARD SLOT 14. - Page 5 DEVICE DIAGRAM 1. POWER ON 3. LED INDICATOR 2. POWER OFF *THIS REMOTE UTILIZES AN “A27” BATTERY. THESE CAN BE PURCHASED ONLINE AND AT MAJOR RETAIL LOCATIONS.
-
Page 6: Parts List
PARTS LIST 1. MINI DVR 4. WALL CHARGER 2. WIRELESS REMOTE 5. MINI USB CABLE 3. 1800MAH BATTERY 6. A/V CABLE... -
Page 7: Device Specifics
DEVICE SPECIFICS 2.5 inch lcd screen 2.5 x 2.7 LCD video output NTSC/PAL video mode NTSC/PAL 800x600 / 640x480 image resolution 320x240 video format .avi frequency range 20Hz - 20KHz output channel stereo headphone output 160 (max volume) speaker 1.5W internal memory 16MB micro SD card... -
Page 8: Date And Time
DATE & TIME to set device date &time Stamp: - ensure battery is installed in the dvr. - ensure that there is no micro sd card in the dvr. -press and hold the power button for three seconds. this screen will appear. -
Page 9: Record Settings
RECORD SETTINGS TO ACCESS RECORD SETTINGS: -press and hold to power button for 3 seconds. when the device boots up, press [ok]. you should see this screen. each setting will bring you to a sub-menu. 1. RESOLUTION -800 x 600 -640 x 480 -320 x 240 2. -
Page 10: Record Time
RECORD SETTINGS when the toggle is in the Q position, the dvr screen is dark and you are not able to use the buttons on the dvr itself. think of it as a “lock” mode. when the toggle is in the N position, you see live feed on the dvr screen, and you can use the buttons on the dvr. -
Page 11: Overwrite Enable
8. OVERWRITE ENABLE when off, device will stop recording when full. when on, device will over write previous files. - Page 12 TIPS RECORD VIDEO WITH REMOTE To record video with the remote control, you must start with the DVR powered off. Hold down the Unlock symbol on the remote for 2-3 seconds. The DVR will emit a long vibration to indicate that recording has started.
- Page 13 THERMAL DEVICES -when using the dvr with the ir hunter line of thermal scopes, you must set the internal frame rate on the scope to 60fps. if you do not do this, your video will not export correctly. -when using the dvr with any thermal device, you must set the internal [video output] on the scope or device to the “on”...
- Page 15 MINI RECORDER...
