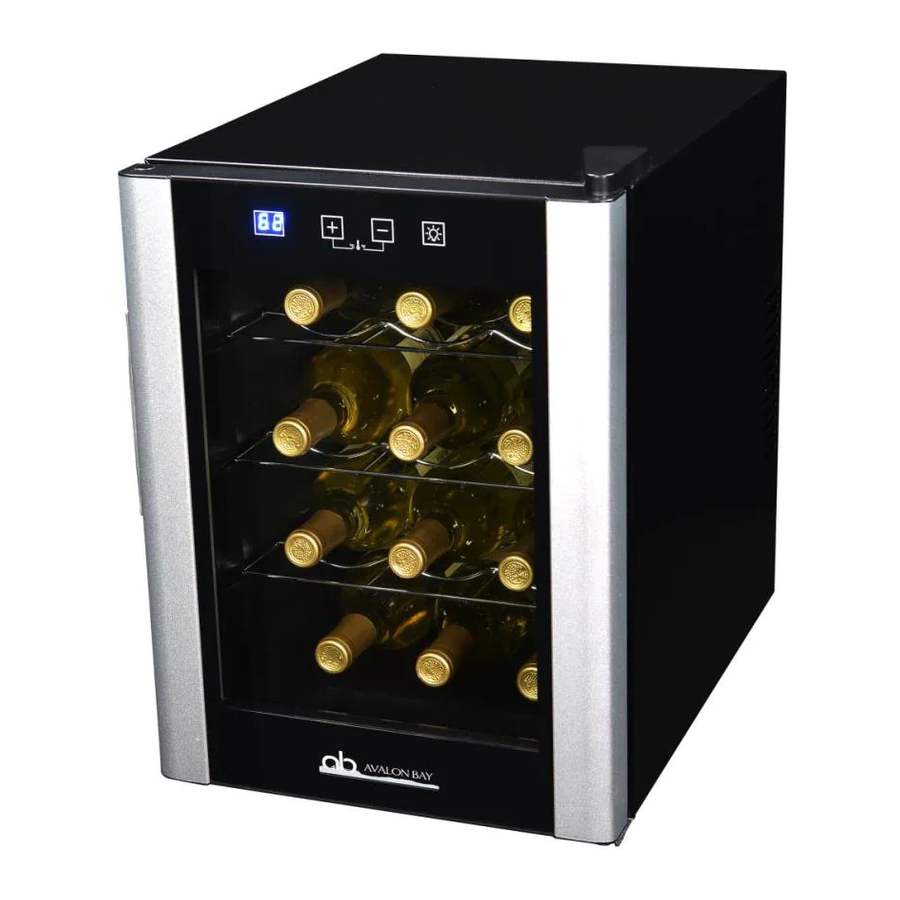

Avalon Bay AB-WINE12S
Thermoelectric Wine Cooler
OWNER'S MANUAL
Read and save these instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AB-WINE12S and is the answer not in the manual?

Questions and answers

Related Manuals for Avalon Bay AB-WINE12S

Summary of Contents for Avalon Bay AB-WINE12S

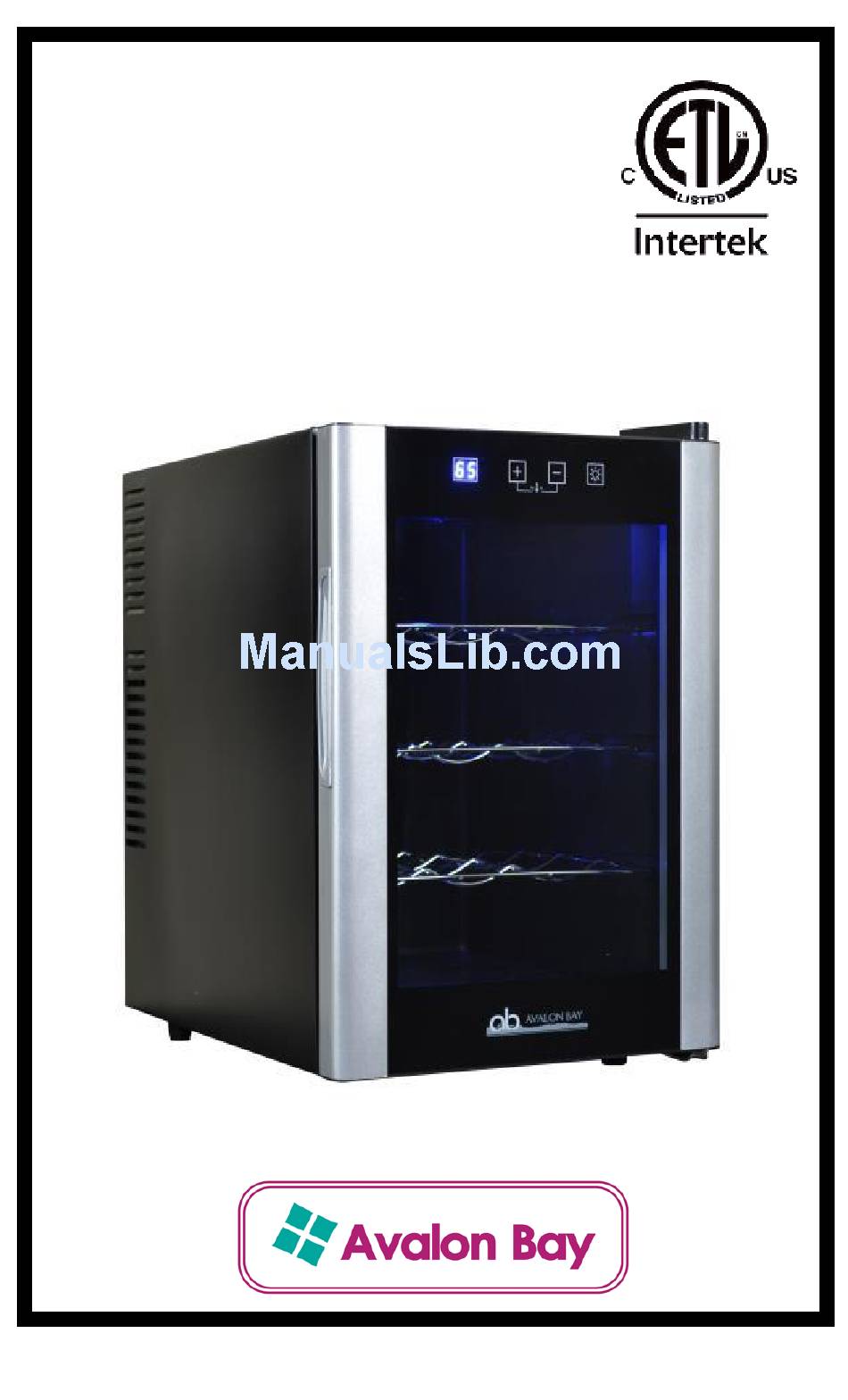

  • Page 1 Avalon Bay AB-WINE12S Thermoelectric Wine Cooler OWNER’S MANUAL Read and save these instructions.
  • Page 2 Discover the Difference with Avalon Bay When value matters, Avalon Bay is ready to deliver. As a family-run business, we haven’t lost sight of what really matters to our customers. Our exclusive line of home appliances is both stylish and affordable, so you can create the homescape you desire without having to empty your wallet.

  • Page 3: Table Of Contents

    Contents SPECIFICATIONS .……………………………………………………………………………………4 .................... 4 PECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS ............4 ................. 5 LECTRICAL ARNINGS ..................5 LECTRICAL IAGRAM IMPORTANT SAFETY INSTRUCTIONS ............6 ................6 DDITIONAL AFETY GETTING TO KNOW YOUR WINE COOLER ..........7 ....................7 EATURES ..................8 IST OF ARTS ASSEMBLY &...

  • Page 4: Specifications

    Specifications AB-WINE12S ODEL 100-127V / 60Hz ATED OLTAGE 0.9 A (77°F/25°C) URRENT 70 watts OWER ONSUMPTION 12 bottles TORAGE APACITY 51 - 64°F (11 - 18°C) EMPERATURE ANGE MPORTANT AFETY NSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages in this manual regarding your appliance.

  • Page 5: Electrical Warnings

    Electrical Warnings Improper use of the grounded plug can result in electrical shock. If the power cord is damaged, please contact customer service.  This unit should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug, which is compatible with standard three prong wall outlets to minimize the possibility of electric shock.

  • Page 6: Important Safety Instructions

    MPORTANT AFETY NSTRUCTIONS  Do not operate this appliance if it has a damaged cord.  If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. ...

  • Page 7: Getting To Know Your Wine Cooler

    ETTING TO OOLER Features  Holds up to 12 bottles of wine.  Can age favorite vintages at ideal storage temperatures.  External LED display and digital control panel provide easy monitoring.  Set interior temperatures between 51° and 64°F for perfect storage or serving temperatures.

  • Page 8: List Of Main Parts

    List of Main Parts 1. H ANDLE 2. S HELF 3. G LASS 4. F 5. L OWER INGE 6. F 7. LED D ISPLAY 8. T EMPERATURE UTTON 9. T EMPERATURE UTTON 10. L IGHT 11. D RAME 12. H INGE OVER www.avalon-bay.com...

  • Page 9: Assembly & Installation

    1. Remove the exterior and interior packaging. Check that 3 shelves are included. If any parts are missing, please contact the dealer where you purchased the unit or Avalon Bay customer service. 2. Clean the interior surface with lukewarm water, using a soft cloth.

  • Page 10: Operating Instructions

    PERATING NSTRUCTIONS It is recommended that you install the wine cooler in a place where the ambient temperature is between 50- 80°F (10-26°C). If the ambient temperature is above or below the recommended temperatures, the performance of the unit may be affected. For example, placing this wine cooler in extreme cold or hot conditions may cause interior temperature to fluctuate.

  • Page 11: Cleaning & Maintenance

    & M LEANING AINTENANCE Cleaning your wine cooler 1. Unplug the wine cooler and remove the bottles. 2. Wash the inside with a solution of warm water and baking soda. The solution should be about 2 tablespoons of baking soda to a quart of water.

  • Page 12: Detailed Parts Diagram

    ETAILED ARTS IAGRAM 1. Door 9. Hinge hardware 16. Exhaust fan 2. Temperature 10. Foaming cabinet bracket control board 11. Plastic screw 17. Cooling system 3. Shelf 12. Power control 18. Power cord clip 4. Cooling fan mask board 19. Feet 5.

  • Page 13: Troubleshooting

    ROUBLESHOOTING ROBLEM OSSIBLE AUSE OLUTION Cooler does not The circuit breaker has been Reset the circuit breaker or operate. tripped or a fuse has blown. check for a broken fuse. The ambient temperature is Lower the cooler’s too warm. temperature setting. Open the door less.

  • Page 14: Limited Manufacturer's Warranty

    ROBLEM OSSIBLE AUSE OLUTION too much noise Check the fan to make sure Something is blocking the fan there is no debris or blades. obstruction. If not, contact the manufacturer. See above. The wine refrigerator is not level. Check the door hinges to The door is not properly make sure they are installed.
  • Page 15 When making a warranty claim, please have the original bill of purchase with the purchase date available. Once it has been confirmed that your appliance is eligible for warranty service, all repairs will be performed by an Avalon Bay authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
