5X7REV/RG
5X7REV/RG
INSTALLATION MANUAL
INSTALLATION MANUAL
INSTALLATION MANUAL

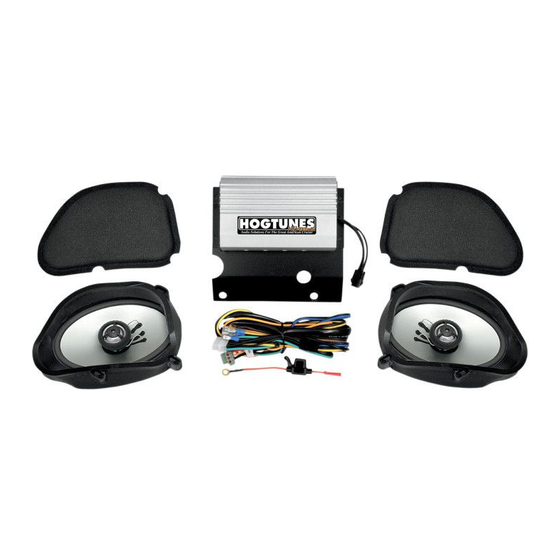

INCLUDES:
(1) Hogtunes NCA 70.2 Amplifier • (1) Pair Hogtunes 572.2-AA
Speakers • (1) Road Glide Adaptor Kit
For Use on All 1998 and Newer FLTR Road Glide
Models With Factory or After Market Radio
*** Not for use on CVO model bikes with factory amplifier installed
Advertisement
Table of Contents
Related Manuals for Hogtunes 5X7REV/RG
Summary of Contents for Hogtunes 5X7REV/RG
- Page 1 INSTALLATION MANUAL INSTALLATION MANUAL INSTALLATION MANUAL INCLUDES: (1) Hogtunes NCA 70.2 Amplifier • (1) Pair Hogtunes 572.2-AA Speakers • (1) Road Glide Adaptor Kit For Use on All 1998 and Newer FLTR Road Glide Models With Factory or After Market Radio...
- Page 2 AVC position works and sounds best. Your new amplifier has been specifically set-up for this radio setting. 2) Your Hogtunes system is designed specifically for a motorcycle at speed. Exhaust noise and wind noise have been taken into careful consideration in how your system performs.
-
Page 3: Installation Instructions
5X7REV/RG INSTALLATION INSTRUCTIONS Step #1: Remove the main power and ground wire from the battery. Remove your outer fairing/headlamp assembly, and set it aside. Refer to a service manual if you need help with either of these. Note: A towel on the front fender can help prevent scratches or “dings”... -
Page 4: Amplifier Wiring Diagram
(only) head screws (only) and the stock “speed nut”, install each 5x7 grill to the bike. HOGTUNES accepts no responsibility for inner fairing HOGTUNES accepts no responsibility for inner fairing damage if factory torx head screws are used! - Page 5 AMPLIFIER WIRE COLOR CODES YELLOW/BLACK: YELLOW/BLACK: YELLOW/BLACK: Clutch Side Amplifier Input From Factory Radio Clutch Side Amplifier Input From Factory Radio BROWN/BLACK: Clutch Side Amplifier Output to Front Speaker GREEN/BLACK: Brake Side Amplifier Input From Factory Radio BLUE/BLACK: Brake Side Amplifier Output to Front Speaker ORANGE: Remote Turn On Lead RED:...
- Page 6 “hooks” the outer fair- ing clips onto. You should zip tie any Hogtunes wire to this main harness so that no wires are in the way of these hooks. Otherwise the outer fairing will not go on.
-
Page 7: System Upgrade
This system is an easy way to add rear speakers to your bike if you’ve added a King Tour-Pak®. Hogtunes rear speaker pods come with a wire harness set up for quick detach tour paks that will plug right into the expansion port on the amp. - Page 8 NOTE: If you have added Ultra Classic Style Vented (2005+) Fairing Lowers to your bike, the simplest thing to do is purchase a Hogtunes FL7-Rev kit. This kit comes with a NCA 70.2 amp, and 7” woofers. For Road Glide models, the For Road Glide models, the purchase of Hogtunes RG 40.4 adaptor kit is required!!
- Page 9 SYSTEM UPGRADE #3 This system uses a Hogtunes NCA-40.4 160 watt 4 channel amp and a NCA 70.2 for the ultimate in power! As shown below, the typical system would have 2 channels of the 40.4 power the 5x7’s while the other 2 channels power the rear speakers.
-
Page 10: Warranty Information
WARRANTY INFORMATION Hogtunes speakers are warranted for a period of 20 years to the original purchaser. Hogtunes Amplifiers are warranted for 1 year from original purchase date. Proof of purchase is required for all warranty claims. All Warranty claims All Warranty claims must be made through the dealer this product was originally purchased from. - Page 12 Hogtunes products will play much louder than the Original Equipment, which can be a distraction to the rider and/or passenger. Please use caution when adjusting, or playing your stereo at high volume, especially in traffic especially in traffic. You are a valued customer so please:...
