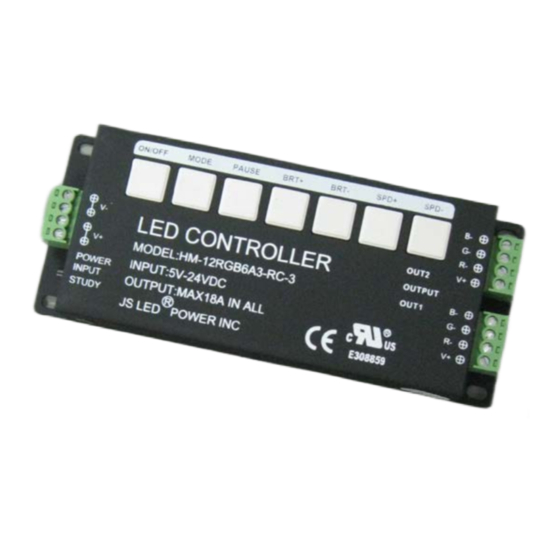

HM-12RGB6A3-RC-3 USER MANUAL
HM-12RGB6A3-RC-3
Multi-Function LED RGB Controller
Manual
Thanks for choosing our HM-12RGB6A3-RC-3 Multi-Function LED RGB Controller. Before installation and
usage, we strongly recommend you to read through this manual carefully.
Product Features :
1. Use wireless remote control in 30 meters, or control by the keys on the controller panel.
2. Three Channels RGB control . Constant voltage driver ,Max 6A each channel.
3. Up to 31 changing models to select , 256 grey level changing.
4. Each model can select changing speed and overall brightness separately.
5. 8 Level brightness and speed adjustment.
6. Change and Pause function.
7. Mode , Suspend protection ,memory function.
8. Soft switch function.
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for JS LED HM-12RGB6A3-RC-3
-
Page 1: Product Features
HM-12RGB6A3-RC-3 Multi-Function LED RGB Controller Manual Thanks for choosing our HM-12RGB6A3-RC-3 Multi-Function LED RGB Controller. Before installation and usage, we strongly recommend you to read through this manual carefully. Product Features : 1. Use wireless remote control in 30 meters, or control by the keys on the controller panel. - Page 2 HM-12RGB6A3-RC-3 USER MANUAL Performance Parameter: Model：HM-12RGB6A3-RC-3 Item Parameter Item Parameter Power Input DC 5-24V Speed 8 level Output Current 5A(Max) /CH×3 Brightness 0~8 level 5V：≤90W；12V：≤210W Power Output Remote Control 24V：≤432W (Duo Channel) Standby Power 0.5W Dimension L127×W52×H19(mm) Mode Package L135×W76×H36 (mm)
- Page 3 ⑦-: Decrease speed by one level NOTE: 1: Please clear code before check code when using HM-12RGB6A3-RC-3! The way of clear code: Hold down the STUDY key, automatically clear code successfully after 20 seconds. 2: The way of check code: Hold down the STUDY key; press any transmitter key (Successfully check code after 4 to 5 seconds).
