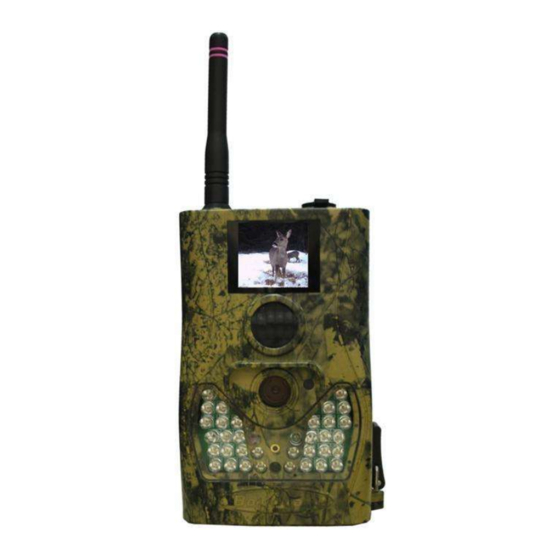

- Page 1 User’s Manual Mobile Scouting Camera ScoutGuard SG580M HCO Outdoor Products Tel: 770-582-0004 Email: sales@hcooutdoors.com...
-
Page 2: Table Of Contents
Content Instruction ..........................1 General Description ......................1 Camera Body Interfaces ....................1 Remote Control ....................... 2 1.3.1 Navigating ........................ 3 1.3.2 Characters ....................... 3 Shooting Information Display ..................3 MMS function ......................... 4 Supported Format ......................4 Cautions ........................... 5 Easy Operations ........................ - Page 3 File Numbering ......................16 Firmware Upgrade ......................16 AppendixⅠ: Technical Specifications ..................17 AppendixⅡ: Parts List ..............Error! Bookmark not defined.
-
Page 4: Instruction
HCO ScoutGuard SG580M 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera with MMS function, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 5M pixels) or records video clips (VGA).Then it can send the pictures... -
Page 5: Remote Control
HCO ScoutGuard SG580M 1 Instruction 1. Tilt adjuster 2. Theft-proof lock 1.3 Remote Control The remote control is an input device of the camera and is primarily used for customer settings and password input. This is an infrared type wireless remote control. The maximum remote distance is 9 meters. -
Page 6: Navigating
HCO ScoutGuard SG580M 1 Instruction 1.3.1 Navigating Press UP or DOWN to select or highlight the menu item, while press LEFT or RIGHT to select the option of each item and press OK to make selection. Select item ( ... -
Page 7: Mms Function
HCO ScoutGuard SG580M 1 Instruction 1.5 MMS function This camera can send pictures instantly to your mobile device via GSM network. You’ll be alerted just when something has happened; The MMS through GPRS to send, so before using this function you need to open this business. It supports four band ：850MHz, 900MHz, 1800MHz and 1900MHz. -
Page 8: Cautions
HCO ScoutGuard SG580M 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four or eight AA batteries. ★ Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD-card. -
Page 9: Easy Operations
HCO ScoutGuard SG580M 3 Quick Introductions 3 Easy Operations 3.1 Power Supply To supply power for the camera, four or eight AA size batteries are needed. Open the bottom cover. Confirm that the power switch is at the OFF position, pull out the battery depot. -
Page 10: Enter Into The Test Mode
HCO ScoutGuard SG580M 3 Quick Introductions After switching on the camera, the motion indication LED (red) will blink for about 10s. The 10s is a buffering time before autonomic capturing photos or videos, e.g. for closing and locking the bottom cover, fixing the camera on a tree and walk away. -
Page 11: Advanced Operations
HCO ScoutGuard SG580M 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: de: Power switch is at OFF position. 1. OFF 2. ON mode: Power switch is at ON position. - Page 12 HCO ScoutGuard SG580M 4 Advanced Operations supports four band ： 850MHz, 900MHz, 1800MHz and 1900MHz. You should set the right MMS setting parameters . The settings of MMS: URL, APN, IP and Port. Please contact the network service provider if you are not familiar with the settings.
-
Page 13: Default Setting
HCO ScoutGuard SG580M 4 Advanced Operations empty. For the security sake, enter a password each time when entering Password Test mode. The default password is 0000. You could choose OFF to stop this function. Restore all customer settings to default values. -
Page 14: Format Sd-Card
HCO ScoutGuard SG580M 4 Advanced Operations Press LEFT or RIGHT to select Video. Press OK to save the current setting and the option will be un-highlighted. Press MENU to cancel setting and return to info display. 4.1.4 Format SD-Card The system will delete all images or videos stored in the SD-card after formatting, make sure that you have made a backup of important data. -
Page 15: Set Photo Burst
HCO ScoutGuard SG580M 4 Advanced Operations e) Press OK to save all current setting and return to info display. Press MENU to cancel setting and return to info display. 4.1.8 Set Photo Burst The following shows how to set photo burst to 3 Photo , provided that the previous option is 1 Photo: a) Press MENU to display the setting menu. -
Page 16: Set Timer
HCO ScoutGuard SG580M 4 Advanced Operations Press MENU to cancel setting and return to info display. 4.1.13 Set Timer Please note that the start and stop time can only be effective when the timer is set as On. Provided that the camera should work from eight a.m. to five p.m., the steps are as following: a) Press MENU to display the setting menu. -
Page 17: Set Mms Mode
HCO ScoutGuard SG580M 4 Advanced Operations IP: (Max. 16 characters) Port: (Max. 6 characters) Account and Password :( Some telecom operators need to set account and password to launch MMS.) Number: (Max. 24 characters for each phone number) Email: (Max. 48 characters for each email) -
Page 18: Reset To Default Settings
HCO ScoutGuard SG580M 4 Advanced Operations d) Press OK to enter into submenu. ﹟ e) There are three inputs for key in new, old and confirm password, press switch between each inputs. Press number buttons to key in the digits. Press UP to delete. -
Page 19: Send Mms Manually
HCO ScoutGuard SG580M 4 Advanced Operations Please note that after deleting a picture or a video file, the deleted files can’t be restored! Furthermore, in order to delete all images and video clips in the SD-card, it is suggested to format the SD-card, please refer to 4.2.4. - Page 20 HCO ScoutGuard SG580M Appendix Image Sensor 5MP Color CMOS sensor Maximum Resolution 2560x1920 Lens F=3.1mm/FOV(Field of View)=52° 20-40Ft IR-Flash Display Built-in Color Display User Interface Wireless Remote Control Sound Recording Mounting Assistance Laser Point Image Stamp Date/Time/Temperature/Moon phase Non-wireless Operation...
- Page 21 HCO ScoutGuard SG580M Appendix Package Contents: Part Name Quantity Digital Camera Wireless Remote Control USB Cable TV cable Belt User Manual Antenna Page 18...
