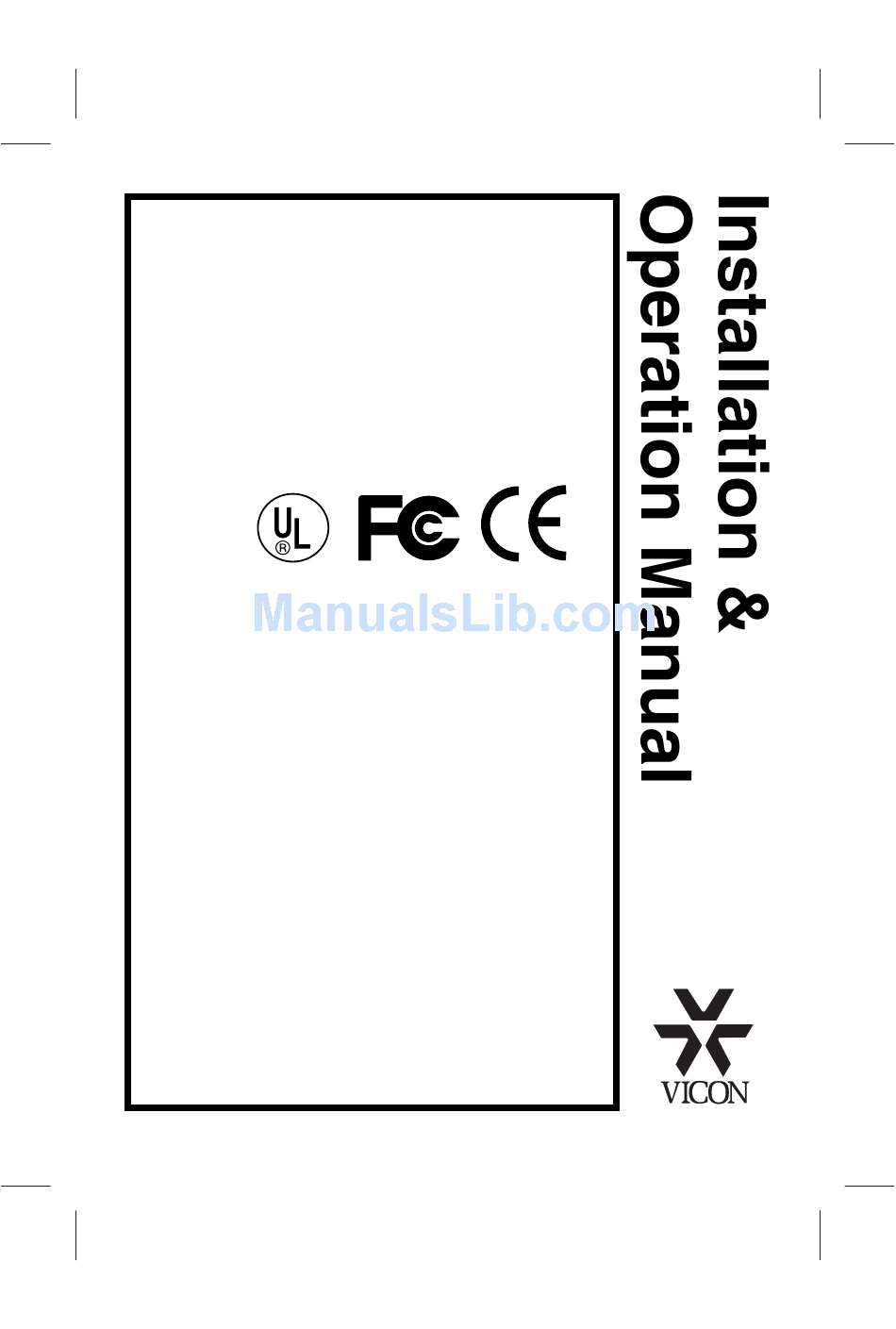

TIME-LAPSE VIDEO CASSETTE RECORDER
Copyright © 2002 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: +44 (0) 1489 566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon part number 8009-8106-00-00
XX106
MODEL VCR480TL
Rev 302 Section 8
