Summary of Contents for YA SB-500-AFD2PADi

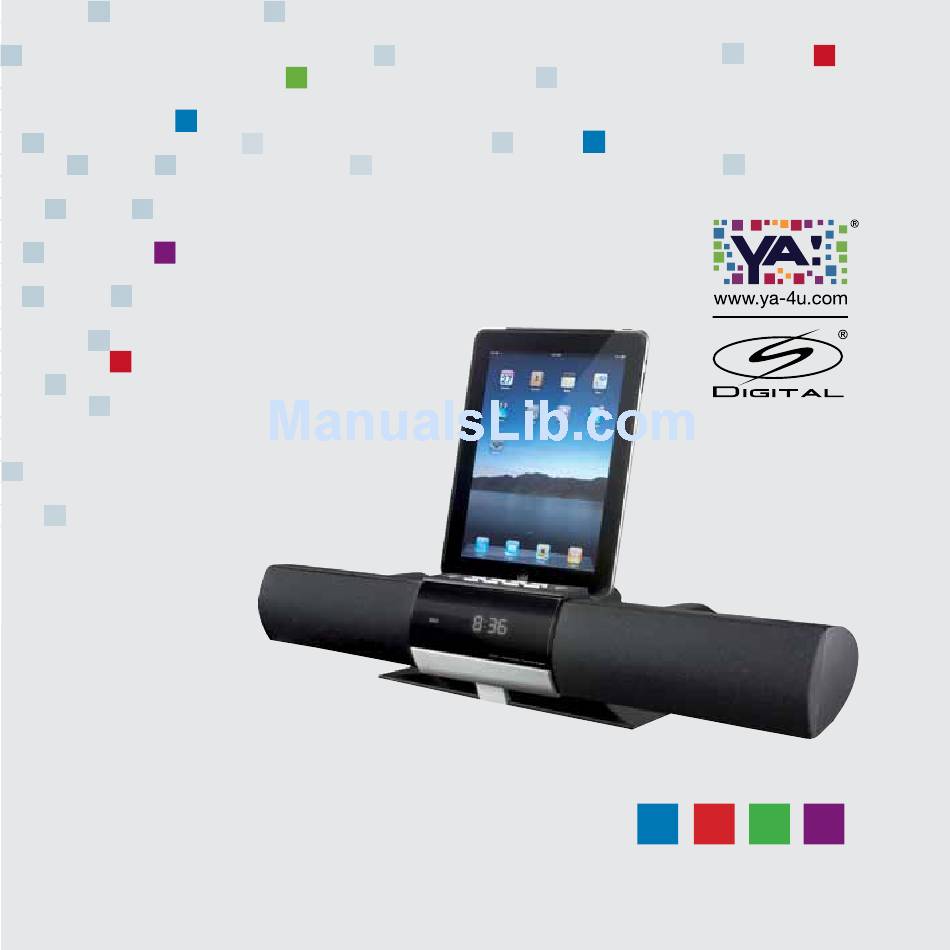

  • Page 1 DE – Betriebsanleitung FR – Mode d‘emploi IT – Istruzioni per l’uso EN – Instruction manual SB-500-AFD2PADi...

  • Page 2: Dear Customer

    Dear customer Finally arrived at YA! Take a seat and enjoy the world of YA! You will see: it is a wonderfull place to be. Please read these instructions. The appliance must only be used for the intended purpose according to these instructions. Observe the safety instructions.

  • Page 3: Safety Instructions

    ■ Regularly check if the mains cable / appliance / extension lead is defective. In this case the appliance must not be put into operation (immediately pull the plug). Send it to the manufacturer for repair. ■ Only trained personnel should repair electrical appliances. Unskilled repairs can cause considerable danger to the user. 96 SB-500-AFD2PADi...
  • Page 4 ■ Switch the appliance off and pull the plug out of the mains when it is not in use. Don’t wind the cable around the appliance. The appliance is only cut from the mains if the plug is pulled out! WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water. 97 SB-500-AFD2PADi...
  • Page 5 There is a danger of explosion if batteries are exchanged improperly. Only replace batteries with ones of the same type. ■ Do not put any container (f. ex. vases, etc.) containing liquids on or in the surroundings of the appliance. ■ Subject to technical modifications. No liability for typographical errors. 98 SB-500-AFD2PADi...

  • Page 6: Key To Symbols

    NOTE This symbol and the heading NOTE apply to technical requirements that the user must pay attention to during the activities. 99 SB-500-AFD2PADi...

  • Page 7: Proper Use Of The Appliance

    The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. 100 SB-500-AFD2PADi...

  • Page 8: Scope Of Delivery

    Scope of delivery 1 x SB500 speakers 1 x Remote control (battery incl.) 1 x Stand (for unit) 1 x Instruction manual 101 SB-500-AFD2PADi...

  • Page 9: Technical Data

    Technical data Power supply AC 100 V-240 V ~ 50/60 Hz Power consumption Standby: < 1 W In operation: 32 W Dimension 550 x 109 x 108 mm with stand Weight 1.5 kg Speaker 10 W x 2 Amplifier 5 W x 2 Protection Class 102 SB-500-AFD2PADi...

  • Page 10: Operation

    Place the stand under the unit and slide it forward Stop when the indicator arrow mark is aligned with the mark at the unit (To release the stand press the clip and and slide the stand downwards) Indicator Lock Click mark symbol 103 SB-500-AFD2PADi...
  • Page 11 ON / STANDBY This appliance cannot be switched off completely. It is either in operation or in standby mode. ■ The display is dimmed in standby mode, time is displayed ■ Power consumption is reduced in standby mode ■ 104 SB-500-AFD2PADi...
  • Page 12 Please refer to a specialist to make sure that your wall is suitable, before wall mounting. Drilling of holes must also be done by an experienced specialist, to avoid injury and damage to your walls. Never place objects on top of the speakers when they are wall mounted. 105 SB-500-AFD2PADi...
  • Page 13 Overview SB-100-AFD2PADi 106 SB-500-AFD2PADi...
  • Page 14 19 DC JACK (DC 9V ) 7 RETURN / INFO. 20 VIDEO OUT 8 EQ (Equalizer) 21 AUX INPUT-1 Sockets 9 FUNCTION (left & right) 10 ON / STANDBY 22 AUX INPUT-2 (LINE-IN) SOCKET SKIP - 23 Antenna wire 12 SKIP + 107 SB-500-AFD2PADi...
  • Page 15 Overview Remote Control SB-100-AFD2PADi 108 SB-500-AFD2PADi...
  • Page 16 6 MUTE 18 SNOOZE 7 EQ (Equalizer) 19 NUMBERS 8 RETURN / INFO. 20 TUNE + 9 MAIN MENU 21 TUNE - 10 UP 22 ALARM SKIP - 23 SLEEP 12. ENTER 24 Battery Compartment (rear of unit) 109 SB-500-AFD2PADi...

  • Page 17: Set Clock

    Set minutes resp. (on remote control) or Confirm Press ENTER NOTE If you have chosen 12H AM or PM option will be displayed. Chose option with resp. DOWN (on remote control) or MULTI JOG WHEEL and press ENTER to confirm. 110 SB-500-AFD2PADi...
  • Page 18 Set day resp. DOWN (on remote control) or MULTI JOG WHEEL Confirm Press ENTER Set month resp. DOWN (on remote control) or MULTI JOG WHEEL Confirm Press ENTER Set year resp. DOWN (on remote control) or MULTI JOG WHEEL Confirm Press ENTER 111 SB-500-AFD2PADi...

  • Page 19: Set Alarm

    MULTI JOG WHEEL 15 / 30 / 45 / 60 / 90 Confirm Press ENTER Display shows Source Buzzer Set source resp. DOWN (on remote control) or MULTI JOG WHEEL BUZZER / DAB / FM / iPOD Confirm Press ENTER 112 SB-500-AFD2PADi...
  • Page 20 ALARM 1 SETUP Confirm Press ENTER Choose display resp. DOWN (on remote control) or MULTI JOG WHEEL Confirm Press ENTER NOTE If no key is pressed for 10 seconds, the appliance automatically returns to its initial function. The programming is not saved. 113 SB-500-AFD2PADi...
  • Page 21 The alarm switches off and will switch on again after 10 min. NOTE Can be repeated for 9 x max. Musik Equalizer This appliance has four pre-programmed soundadjustments. EQ OFF / CLASSIC / ROCK / POP / JAZZ Set EQ sound effects Press repeatedly 114 SB-500-AFD2PADi...
  • Page 22 SYSTEM Press SKIP- resp. SKIP+ MULTI JOG WHEEL Confirm Press ENTER Choose display backlight Press SKIP- resp. SKIP+ MULTI JOG WHEEL Confirm Press ENTER SKIP- SKIP+ MULTI JOG WHEEL Choose option Press resp. high / medium / low 115 SB-500-AFD2PADi Confirm Press ENTER...
  • Page 23 SKIP- resp. SKIP+ MULTI JOG WHEEL Confirm Press ENTER Choose display Mono/Stereo SKIP- resp. SKIP+ MULTI JOG WHEEL Confirm Press ENTER NOTE Setting „ SCAN setting “: allows filtering out stations with a strong signal or scan all stations. 116 SB-500-AFD2PADi...
  • Page 24 There are 10 memory positions for FM. The display will indicate the number and preset stored. Find a saved frequency Press the number key on remote control Overwrite saved positions: save the new frequency on the desired position. 117 SB-500-AFD2PADi...
  • Page 25 Manual tune Browse list of stations SKIP- resp. SKIP+ MULTI JOG WHEEL Confirm Press ENTER SKIP- SKIP+ MULTI JOG WHEEL Change station: Press resp. Confirm Press ENTER NOTE to view further information about the stream press RETURN/INFO on the remote control 118 SB-500-AFD2PADi...
  • Page 26 Use this function to delete previous scanned stations. For example, if the station is no longer on air or for any other reasons. Use Prune Press MAIN MENU Choose display ( prune Press ENTER 119 SB-500-AFD2PADi Confirm Choose and press ENTER...
  • Page 27 Playback Press Stop playback Press STOP Playback (iPhone, iPod, iPad) Start playback Interrupt playback Stop playback STOP SKIP- SKIP+ Select track resp. Fast forward or –reverse within PREV NEXT the actual track: Press and hold resp. 120 SB-500-AFD2PADi...
  • Page 28 ■ Never disconnect the iPod from the appliance during playback. Always press and hold first and press FUNCTION and change source to avoid damage to your files. ■ When connected to the appliance the iPod, iPhone or iPad automatically charges. 121 SB-500-AFD2PADi...
  • Page 29 ■ iPod Classic ■ iPod 4G ■ iPod 5G Playback iPod / iPhone / iPad Choose function on iPod, iPhone or iPad: On remote control: Function: REPEAT Repeat actual track REPEAT Repeat all tracks RANDOM Random playback of the track 122 SB-500-AFD2PADi...
  • Page 30 Imported by: CECONET AG Hintermättlistrasse 1 CH-5506 Mägenwil...
