wirsbo SetPoint 501 User Manual

Congratulations on the installation of your Wirsbo SetPoint Controller. These controllers have been designed
with state of the art technology and packaged in a compact and attractive enclosure. The large display and easy
to use buttons make this extremely user friendly. It is designed to increase the comfort level of your home as well
as to increase the energy efficiency of your heating system.
Table of Contents
Display Operation....................................................... pg 1
Viewing The Current Temperature .............................. pg 2
Setting the Temperatures ........................................... pg 2
Display / Keypad Operation

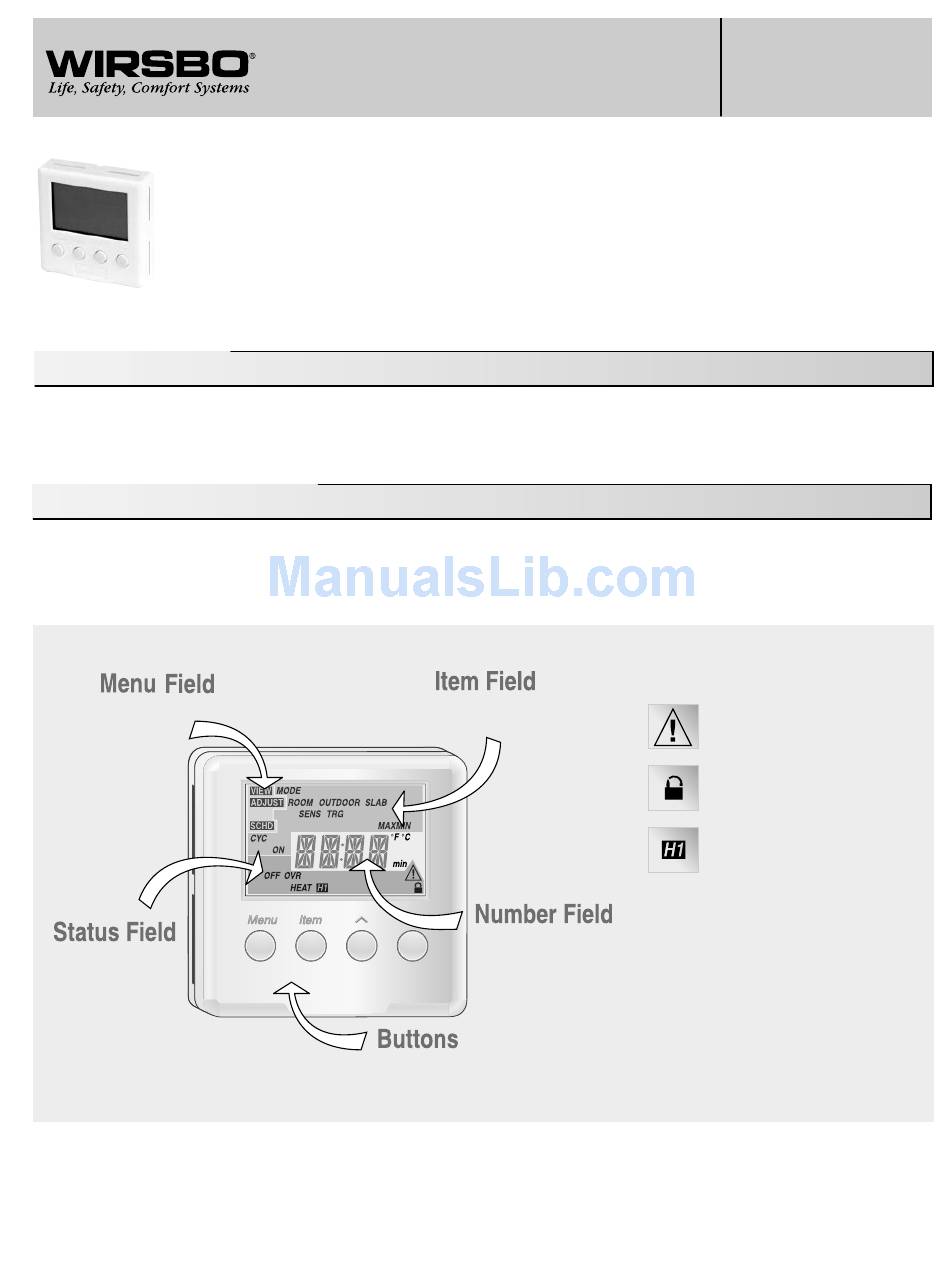

The controller's display has four distinct fields. These fields are the Menu field, the Item field, the Number field and the Status
field. The four buttons on the face of the controller are used to navigate through the menus and items to view and/or adjust the
desired settings.
Displays the
current
menu
Displays the current
status of the
thermostat's inputs,
outputs and operation
SetPoint 501 & 501s
Programmable Setpoint Controllers
Displays an abbreviated
name of the selected item
AWAY
Selects Menus, Items
and adjusts settings
1 of 2
Away Override
(501s Only)
Units Of Display........................................................... pg 2
Setting The Mode Of Operation ................................... pg 2
Display Symbols
Displays the current value
of the selected item
User
........................................... pg 2
Warning
Displays when an error exists.
Access Level (501s Only)
Displays when in the user
access level.
Heat One
Displays when the heat contact
is on.
