Geemarc AMPLICALL30 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A
M
P
L
I
C
A
M
P
L
I
C
B
a
b
y
m
o
n
i
t
o
r
B
a
b
y
m
o
n
i
t
o
r
AMPLICALL30
FEATURES
AMPLICALL50: Vibrating Signal Indicator
Wireless Amplicall Range Compatible Receiver
Pair with up to 4 different devices
4 visual indicators options
Volume control (off, low, high) up to 80dB
Vibrating switch on/off
Operates on batteries 3xAAA included
AMPLICALL30: Baby monitor
Wireless Transmitter for the Amplicall Range
Emergency call push button
Dectection Time Adjustment
Sensivity Adjustement
Jack socket for connection to an external alarm system
Operates on batteries 3xAAA included
OPTIONAL EXTRAS
AMPLICALL20
AMPLICALL40
Items pictured and details are subject to change at the manufacturer's discretion.
A
L
L
5
0
3
0
A
L
L
5
0
3
0
Kitchen
AMPLICALL50
APPLICATION
Bedroom
www.geemarc.com
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMPLICALL30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Geemarc AMPLICALL30

Summary of Contents for Geemarc AMPLICALL30

  • Page 1 Pair with up to 4 different devices 4 visual indicators options Volume control (off, low, high) up to 80dB Vibrating switch on/off Operates on batteries 3xAAA included AMPLICALL30: Baby monitor Wireless Transmitter for the Amplicall Range Emergency call push button Dectection Time Adjustment Sensivity Adjustement...
  • Page 2 AMPLICALL50 Portable Alert Unit English...

  • Page 3: Table Of Contents

    CONTENTS CONTENTS INTRODUCTION Unpacking the AMPLICALL DESCRIPTION General Description INSTALLATION Setting Up Mounting Range PAIRING Pairing Procedure...
  • Page 4 CONTENTS Deregister the Pairing AMPLICALL Power On/Off Setting Vibrate On/Off Setting Volume Setting AMPLICALL 50 Use TROUBLESHOOTING SAFETY INFORMATION GUARANTEE RECYCLING DIRECTIVES...
  • Page 5 INTRODUCTION Congratulations on purchasing your Geemarc AMPLICALL This is the portable unit that receives a transmitted signal from any number of transmitters e.g. AMPLICALL 30/40. The AMPLICALL 50 will flash and can emit an alarm sound and/or vibrate in order to alert you to help the person/baby in need.
  • Page 6 INTRODUCTION clear reception and easy setup and use. Its is important that you read the instructions below in order to use your Geemarc AMPLICALL its full potential. Keep this user guide in a safe place for future reference.

  • Page 7: Introduction Unpacking The Amplicall

    AMPLICALL When unpacking the AMPLICALL 50, you should find the following in the box: • 1 AMPLICALL Unit • 3 AAA batteries (supplied) For product support and help visit our website at www.geemarc.com Telephone 01707 384438 Or fax 01707 832529...

  • Page 8: Description

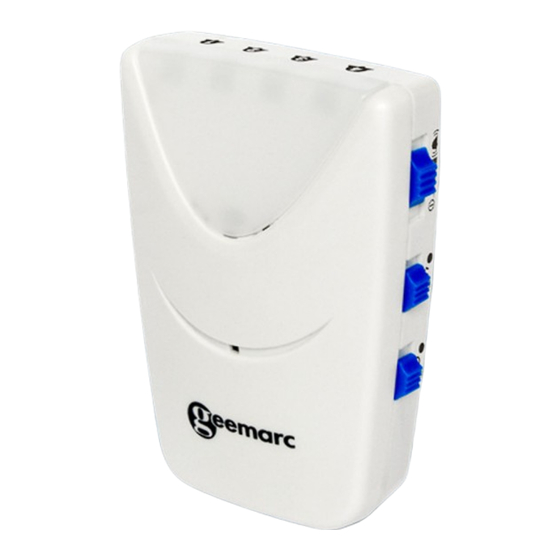

    INTRODUCTION General Description Front Description Four red LED Volume Off/Low/High switch Vibrate On/Off switch Power On/Off switch Power on LED indicator Built in microphone...
  • Page 9 INTRODUCTION Rear Description Battery Compartment Pairing button...

  • Page 10: Installation

    INTRODUCTION Setting Up For portable monitoring, remove the battery compartment cover found on the rear of the unit. Insert 3 alkaline batteries (AAA size, 1.5V type, these are supplied) into the battery compartment. Check the battery polarity diagrams in the battery compartment when inserting the batteries.

  • Page 11: Mounting

    INTRODUCTION When the LED indicator flashes Slowly-Normal Quickly-Low battery(replace battery) Mounting The AMPLICALL 50 can be carried around with you either by hand or using the supplied belt clip.

  • Page 12: Range

    INTRODUCTION Range Your monitor has been carefully designed to operate at its best within a 30 metre range. This is suitable for the majority of household environments. The range and general quality of reception may vary depending on battery power and number of obstructions such as walls etc.

  • Page 13: Pairing

    PAIRING The Pairing Procedure Press and hold the Pairing/Test button of the AMPLICALL 50 until the unit makes a beep sound. The 1st LED lights. This indicates you have entered pairing mode. You can now pair the 1 outdoor unit/transmitter e.g. the AMPLICALL 30/40 to the 1 LED.
  • Page 14 PAIRING and the unit makes a long beep tone to confirm pairing successfully. If you would like to continue and pair the 2 or 4 outdoor unit/transmitter, when the 1 lights, press the Pairing/Test button again. The 1st LED will switch off and the 2 LED will light up.

  • Page 15: Deregister The Pairing

    PAIRING beep tone to confirm pairing successfully. You can repeat the same procedure for the 3 or 4 outdoor unit/transmitter. Deregister the Pairing Press and hold the Pairing/Test button for 5 seconds until all the LEDs light up. You have entered the deregister mode.
  • Page 16 PAIRING and hold the pairing/testing button. The 1 LED turns off and beeps to confirm that 1 remote is now deregistered If you would like to deregister the and 3 unit but keep the 1 unit paired:, when the 1 LED flashes, press the pairing/testing button once to select which call/remote...
  • Page 17 PAIRING when the 1 LED flashes, press the pairing/testing button four times, all 3 LEDs will flash together, then press and hold the pairing/testing button until all 3 LEDs turn off together and beep to confirm that 4 unit is now deregistered.

  • Page 18: Power On/Off Setting

    USING THE AMPLICALL50 Power On/Off Setting You can switch the power off or on using the Power Off/On switch. Vibrate On/Off Setting You can switch the vibrate setting off or on using the Shaking Off/On switch. When this setting is on the AMPLICALL 50 will vibrate as a means of alarm.

  • Page 19: Amplicall

    USING THE AMPLICALL50 AMPLICALL 50 Use When a paired transmitter detects a cry/voice/noise or the ALARM button is pressed, this receiver unit will flash and/or sound a beep and/or vibrate to notify you of the noise made and perhaps the need for assistance...

  • Page 20: Troubleshooting

    TROUBLESHOOTING The Monitor will not switch on • Make sure the batteries are inserted correctly and they have adequate power • Ensure mains power is connected properly The Receiver (AMPLICALL 50) is making a high pitched (feedback) noise • Ensure the AMPLICALL 30/40 and the AMPLICALL 50 are...
  • Page 21 TROUBLESHOOTING The Receiver (AMPLICALL 50) is only alerting me intermittantly or not alerting me at all • Ensure the units are paired correctly. Run through the pairing process again • Ensure the AMPLICALL 30/40 and the AMPLICALL power is switched on •...
  • Page 22 TROUBLESHOOTING • The units maybe too far apart, therefore out of range • Set time delay to low and sound sensitivity to high Sound quality has decreased • Make sure the batteries are inserted correctly and they have adequate power Power LED flashing quickly •...

  • Page 23: Safety Information

    SAFETY INFORMATION General Do not open the unit (except to replace the batteries). Contact the helpline for all repairs. One of the uses of the AMPLICALL 50 is to help monitor your child and is not a substitute for adult supervision. This product is not a toy.
  • Page 24 SAFETY INFORMATION Always keep electrically operated items and their cables out of reach of babies and younger children. Ensure children cannot become tangled or trip over any wires. Cleaning Clean the unit with a soft cloth. Never use polishes or cleaning agents - they could damage the finish or the electrics inside.
  • Page 25 SAFETY INFORMATION Environmental Do not expose to direct sunlight. Always ensure there is a free flow of air over the surfaces of the unit. Do not place any part of your product in water and do not use it in damp or humid conditions e.g. bathrooms.
  • Page 26 SAFETY INFORMATION Batteries Removal and replacement of batteries should be carried out by an adult or under adult supervision. Take special care to ensure batteries are inserted correctly, observing (+) and (-) polarity marks on battery and product. Remove used batteries from the unit.
  • Page 27 SAFETY INFORMATION Do not mix old (used) and new batteries or batteries of different types Do not put batteries into the household rubbish, pay attention to battery regulations regarding battery disposal. Remove batteries if you will not be using the product for long periods. Only use batteries of the same or equivalent type to those recommended.

  • Page 28: Guarantee

    GUARANTEE From the moment your Geemarc product is purchased, Geemarc guarantee it for the period of one year. During this time, all repairs or replacements (at our discretion) are free of charge. Should you experience a problem then contact our help line or visit our website at www.geemarc.com.
  • Page 29 AND MUST BE RETAINED AND PRODUCED IN THE EVENT OF A WARRANTY CLAIM. Please note: The guarantee applies to the United Kingdom only DECLARATION: Geemarc Telecom SA hereby declares that this product is in compliance with the essential requirements and...
  • Page 30 GUARANTEE other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EEC and in particular article 3 section 1a, 1b and section The declaration of conformity may be consulted at www.geemarc.com...

  • Page 31: Recycling Directives

    RECYCLING DIRECTIVES The WEEE (Waste Electrical and Electronic Equipment) has been put in place for the products at the end of their useful life are recycled in the best way. When this product is finished with, please do not put it in your domestic waste bin.
  • Page 32 If you purchase a new one, they should accept it. Thus if you respect these instructions you ensure human health and environmental protection. For product support and help visit our website at www.geemarc.com Telephone 01707 384438 Or fax 01707 832529...
  • Page 33 UGAmplicall50_En_v1.3...
