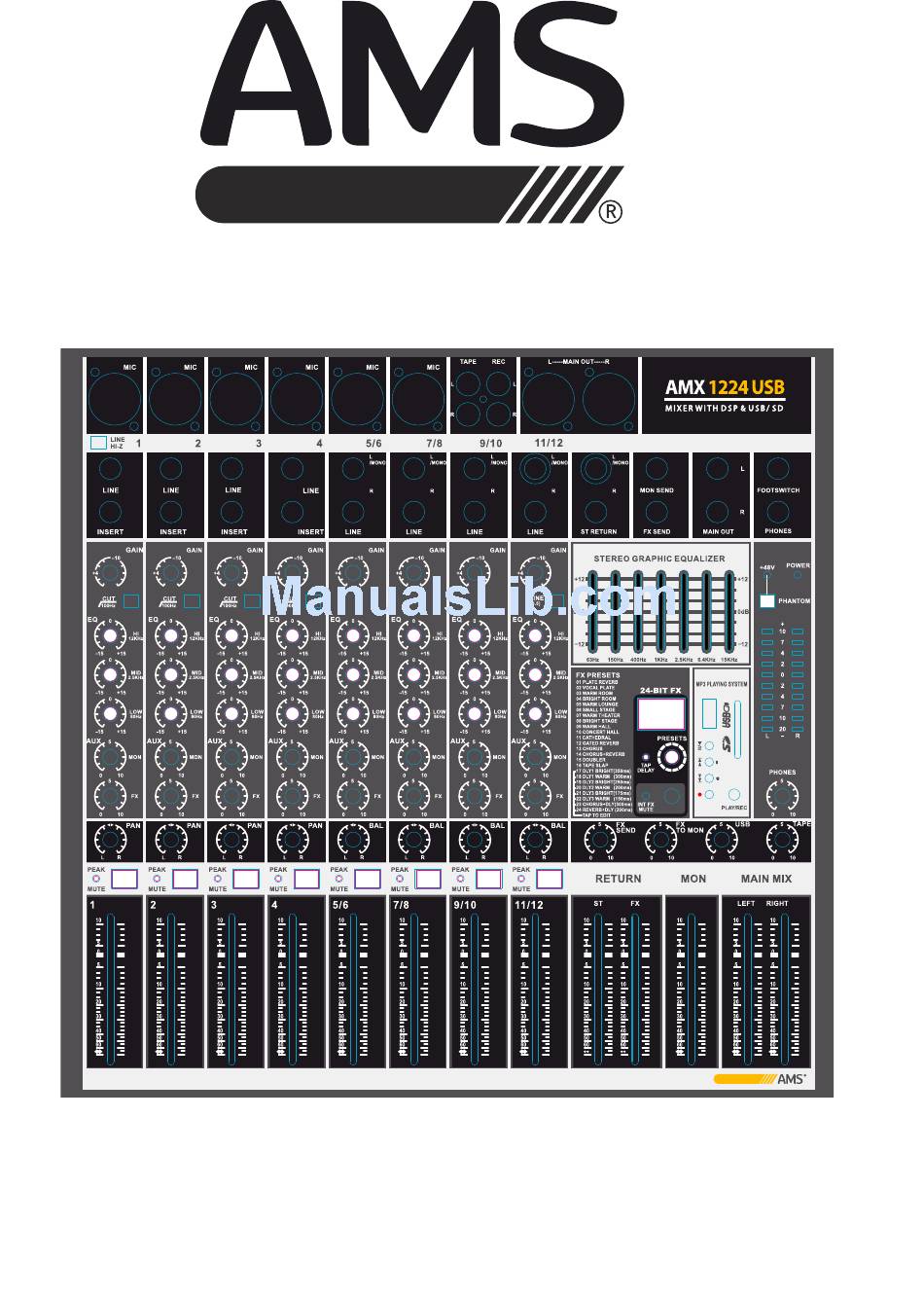

- Page 1 AMX 1224 USB USER MANUAL /MANUAL DE USO Rev. 14.03.01...
-
Page 2: Safety Instructions
4.8.12 Mono and 4 stereo Input Channels with silver plated XLRs and balanced Line Inputs Ultra-low noise discrete Mic Preamps with +48 V Phantom Power Extremely high headroom - offering more dynamic range Balanced Inputs for highest signal integrity Ultra-musical 3-band EQ on all mono channels Peak LEDs on all channels with MUTE function 2 Aux Send per channel for external effects and monitoring 24-Bit of the effect system inside... -
Page 3: Input Channel Section
A. INPUT CHANNEL SECTION 1. MIC INPUTS You can plug in almost any kind of mic that has a standard XLR male mic connector. 2. LINE/HI-Z SWITCH To connect a guitar directly to the mixer without using a DI Box, press this switch in first;then connect the output from the guitar to channel I’s 1/4 TRS input.. -
Page 4: Channel Fader
9. HI EQ This control gives you up to 15dB boost or cut above 12kHz,and it’s flat at the detent. 10. MID EQ This knob provides 15dB of boost or cut, centered at 2.5Khz,also flat at the center detent. 11. LOW EQ This control gives you up to 15dB boost or cut below 80Hz.The circuit is flat at the center detent position. -
Page 5: Master Section
B. MASTER SECTION 17. LINE SWITCH (3.5) Press this button while connecting the LINE IN port for the stereo input signal. 18. BAL The BAL control sends continuously variable amounts of the post fader signal to either the left or right main buses. In the center position equal amounts of signal are sent to the left and right busses. -
Page 6: Phones Level
27. MP3 PLAYING SYSTEM PLAY/PAUSE: (PLAY/PAUSE Button) Push this button to PLAY/PAUSE, while pushing it continually to change the playing mode: MP3 or WAV. PREV: (PREV Button) Push this button for the previous song, while pushing it continually to reduce the volume. NEXT: (NEXT Button) Push this button for the next song, while pushing... -
Page 7: Mixer Output Section
C. MIXER OUTPUT SECTION 37. TAPE These stereo unbalanced RCA inputs are designed to work with semi-pro as well as pro player/recorders. 38. REC These stereo unbalanced RCA outputs allow you to record the main stereo mix onto a tape deck, hard disk recorder, automatic CD burner,computer,etc. -
Page 8: Power Section
D. POWER SECTION 45. POWER CONNECTION This is the AC power connector 46. POWER SWITCH Press the top of the rocker switch to turn on the mixer. 47. USB PORT The USB interface allows digital audio to transfer to and from a computer. 48. - Page 9 AMX Series - 8 - User Manual / Manual de uso...
- Page 10 AMX Series - 9 - User Manual / Manual de uso...
- Page 11 AMX Series - 10 - User Manual / Manual de uso...
- Page 12 AUDIOMUSIC Avda. El Saler, 6 - Pol. Ind. L´Alteró, 46460 - Silla (Valencia) Spain Tel. +34 963 124 088 Fax + 34 963 219 645 www.audiomusic.es audiomusic@audiomusic.es...
