CS Unitec 5 1212 0050 Operation Manual

Pneumatic hack saw

Advertisement

CS UNITEC, INC.
MODEL 5 1212 0050

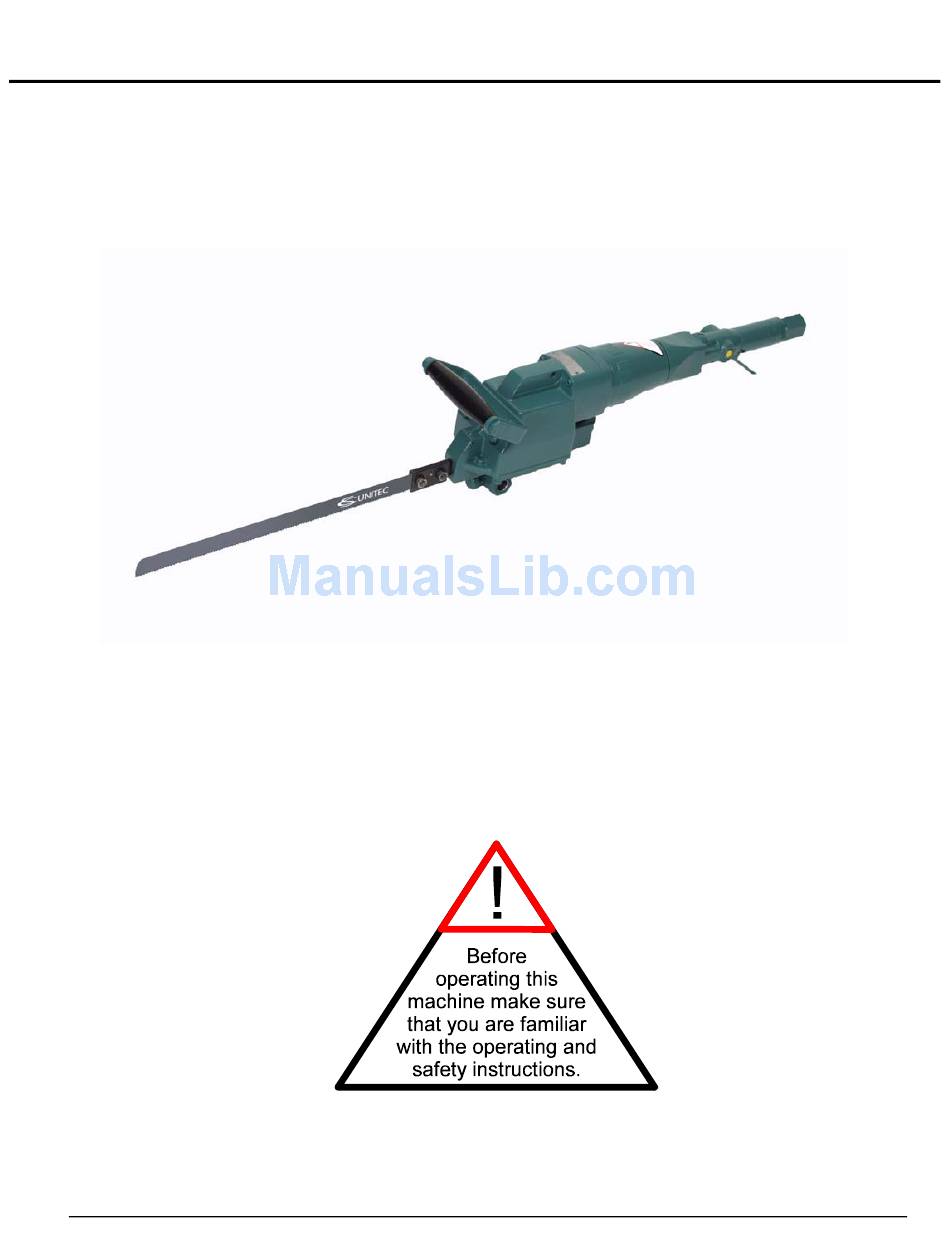

PNEUMATIC HACK SAW
OPERATING MANUAL
CS Unitec, Inc., 22 Harbor Avenue, Norwalk, CT 06850 Toll Free: 800-700-5919

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5 1212 0050 and is the answer not in the manual?

Questions and answers

Summary of Contents for CS Unitec 5 1212 0050

  • Page 1 CS UNITEC, INC. MODEL 5 1212 0050 PNEUMATIC HACK SAW OPERATING MANUAL CS Unitec, Inc., 22 Harbor Avenue, Norwalk, CT 06850 Toll Free: 800-700-5919...
  • Page 2 TECHNICAL DATA: Performance data at 6 bar operating pressure 5 1212 0050 5 1213 0010 aluminum body steel housing Cutting capacity for pipes dia. mm Cutting capacity for profiles dia. mm Stroke number (under load) 1/min. Stroke of saw blade...
  • Page 3 Consistency class (DIN 51818 German Industrial Standard) Specification type Lithium Dripping point 185° C Worked penetration 265 to 295 Temperature range -25° C to + 125° C The anti-friction bearings must be cleaned thoroughly after about 900 hours of operation and re-packed with new ball-bearing grease.
  • Page 4 MOTOR: Unscrew the governor casing (item 25) with complete valve. Extract the rotary sleeve (item 18) from motor housing. Motor components as end plate (item 7), cylinder bushing (item 4), rotor (item 11) and end plate (item 13) are pressed forwards out of the motor housing and unscrew the weight holder (item 19) from rear rotor pivot (left-hand thread) and disassemble motor.
