Summary of Contents for DigiTech AM-4208

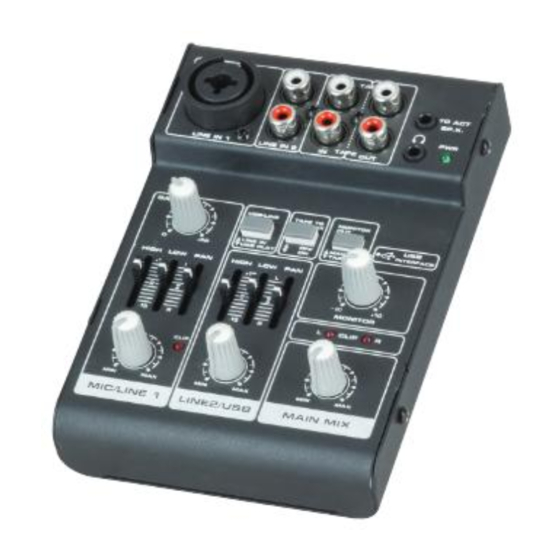

- Page 1 User Manual AM-4208 Mini 3 Channel Mixer with USB Interface...
- Page 2 Main Features Ultra-compact and ultra-low noise analog mixer with USB/Audio interface Powered through USB or external adaptor Built-in stereo USB/Audio interface to connect directly to your computer Free audio recording and editing State-of-the-art Mic Preamp comparable to stand-alone boutique preamps ...
- Page 4 AM-4208 Hook-up...
- Page 5 Unpacking Every AM-4208 has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged; inspect your units carefully for any damage and be sure all accessories necessary to operate the system have arrived intact.
- Page 6 Technical Specifications Type 3 Channel USB Mixer Frequency Response Min. input to any output (gain @ 10Hz to 40kHz (0, -1dB) 0dB, rated output level) 10Hz to 100kHz (0, -3dB) Distortion (THD&N) Mic input to MAIN output (gain @ 0.01% (A-weighted) 0dB, rated output level @ 20Hz –...
-
Page 7: Important Safety Symbols
Peak Indicator Channel 1 +15dDB VU Meters Main left and right (1-segment) Clip+15dB Microphone input 2.6kΩ Line input 10kΩ Impedance Tape input 10kΩ Main outputs 120kΩ Phones output 120kΩ Tape output 1kΩ USB interface USB2.0 ADC&DAC 16 bit delta sigma, 44.1kHz USB section sampling rates Operating system... - Page 8 Distributed by: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com...
