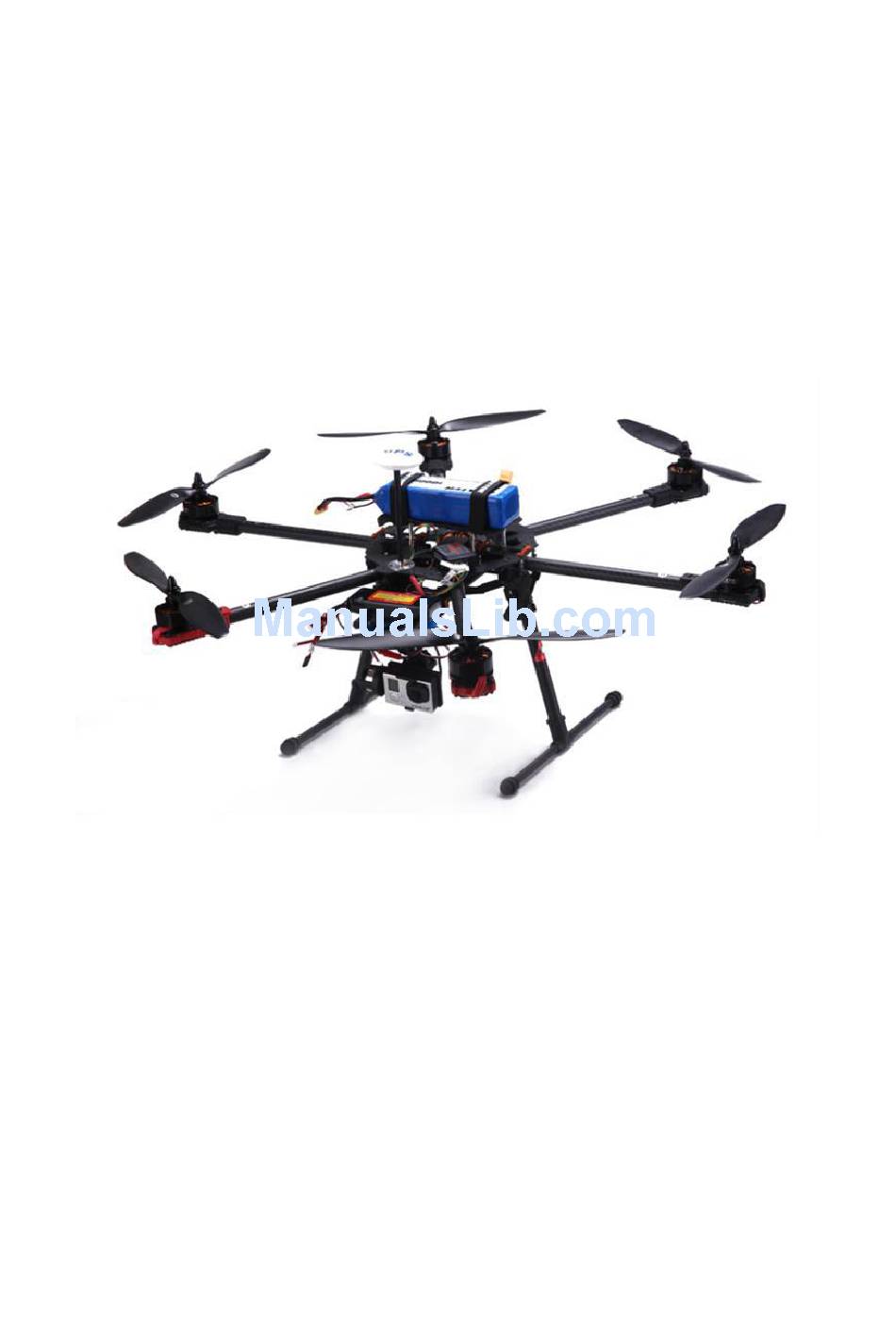

SkyhawkRC F700 user manual
V1.11
Thanks for using SkyhawkRC F700 aircraft. Please read this manual carefully before
operation, it will help you understand this product deeply and make sure to operate it
safely and
correctly(the aircraft has been tested well before delivery, parameters has
been set and matched properly, please do not adjust the trimming button if
unnecessary in order to avoid the aircraft appearing incapable of
Ⅰ. Disclaimer
Ⅱ. Notice
Ⅲ. Product Brief Introduction
Ⅳ. Function Introduction
Ⅴ. Operation Introduction
Ⅶ. Other Attentions
Ⅰ. Disclaimer
This product is remote controlled aircraft, wrong and impertinent operation will cause unintended
consequences. We will not bear any legal responsibility in the process of use. If you use this product, it
indicates that you have accepted this clause.
July.2.2014
flight).
Advertisement
Summary of Contents for SkyhawkRC F700
- Page 1 SkyhawkRC F700 user manual V1.11 July.2.2014 Thanks for using SkyhawkRC F700 aircraft. Please read this manual carefully before operation, it will help you understand this product deeply and make sure to operate it safely and correctly(the aircraft has been tested well before delivery, parameters has...
- Page 2 8. Be sure to use the original accessories. Ⅲ. Product Brief Introduction 1. F700 is an entry-level aerial photography aircraft. Easy to operate and carry, flexible operation, stable performance, ready to fly, avoid tedious installation and debugging. Its working mode divides into...
- Page 3 3. Technical Parameter Max Spread Size 990x990x360 Color Box Size 820x355x170 Aluminum Case Size 800x335x270 Motor Distance 1255 plastic inch Propeller 1355 carbon fiber inch Battery 1*LiPo 4S 10000mAh Aircraft Weight Not include battery and receiver 1800g Take Off Weight 4S 10000mAh battery + receiver 2500g Max Take Off Weight...
- Page 4 4. Gimbal stabilization M700 aircraft can control the stabilization of 2 axis gimbal, while equipped with brushless gimbal, please refer to user manual of brushless gimbal carefully. 5. Available to FPV Video Transmission Module and Ground Station First Person View (FPV) It is available to connect video transmission module and transmit live video to ground by video transmission system, enjoy the pleasure of FPV.
- Page 5 4. Install the GPS bar on center board. 5. Fasten battery on battery board and insert battery alarm(suggest to set battery alarm to 3.6V/S). 6. Check all below photo sticks in top position and turn on transmitter. 7. Pull sticks to start motors. Detailed process as below：connect battery, switch CH5 to manual mode, indicator state shows blue single flash.
- Page 6 and locked automatically. For taking off, you need to execute this operation again. (4) Under manual mode, if throttle stick is not in lowest position, motors will not stop running. (5) Under position hold mode, flight height lands minimum and flight controller detected no flight height change, motors will stop running and lock throttle at the same time.
- Page 8 10. Manual mode(“N”position)，GPS position hold mode(“1”position), auto return home mode(“2”position).
- Page 9 Remote control 3-level switch diagram Flight Mode CH5 Position Instruction Any emergency happened，please switch to manual mode in Manual Mode time in case of aircraft fly away. Fly about 1-3min(s) under manual mode, then switch to 2-level, Position Hold throttle stick in center is position hold, you can also change Mode throttle stick and rudder stick to operate it change flight directions, loose sticks, it will stay in new positon and hold in new position.
- Page 10 (1). Connect battery to aircraft and keep still(no any vibration). (2). Switch to manual mode(“N” position”) . (3). Switch between manual mode(“N” position”) and position hold mode(“1” position) for 6 times and two switch time interval not longer than 3 seconds, process: “N” position→ “1” position →“N” position→“1” position→“N”...
- Page 11 ± 100% , cancel all control curve setup. Fine-tuning positions of rockers are all set to middle position. Feedback If you have any questions about our products,please feel free contact us by following : Tel:86-755-33855325 Fax:86-755-29557966 Skype:SkyhawkRC1 E-mail:SkyhawkRC@gmail.com Website:www.SkyhawkRC.com...
