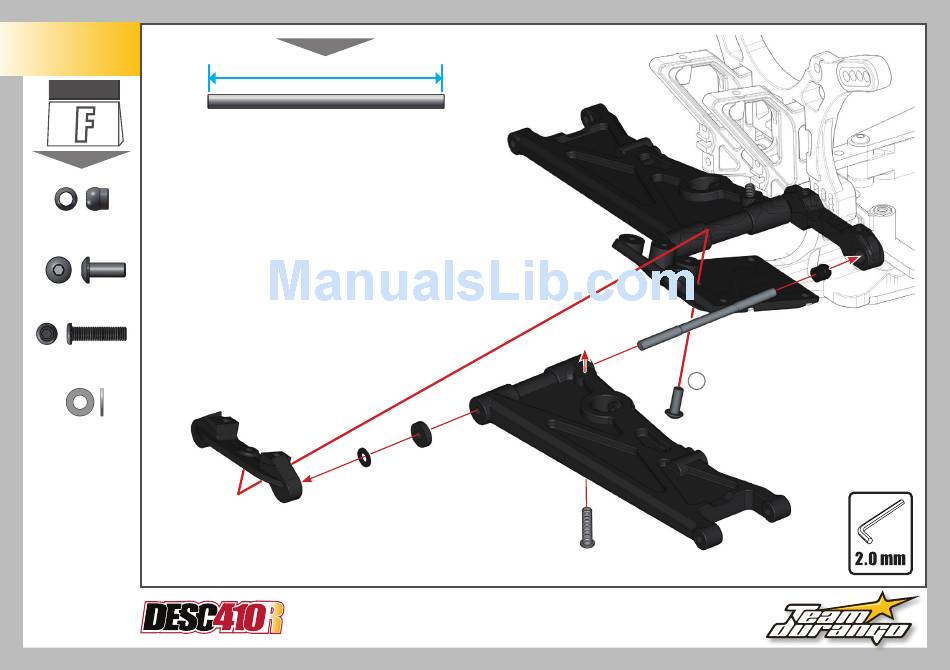

Team Durango DESC410Rv2 Instruction Manual page 28

16
BAG
F
3 3 0 4 0 5
1:1
P I V O T B A L L
A - A R M
3 3 0 0 3 7 x 2
S H M 3 X 8
7 0 5 0 0 2 x 1
D S M 3 X 1 2
7 0 1 0 0 1 x 2
S h i m 3 x 6 x 0 . 5 m m
7 0 9 0 3 2 x 2
.28.
1:1
5 2 m m
" 4 "
3 3 0 1 2 6
3 X 8 X 1
3 9 0 0 2 4 - 1
3 X 6 X 0 . 5
7 0 9 0 3 2
3 3 0 4 0 5
2
M 3 X 8
7 0 5 0 0 2
3 3 0 4 9 5
M 3 X 1 2
7 0 1 0 0 1
3 3 0 0 3 7
