CVS CDA-211-RJ45 Instruction Manual

(2)1x2 active transmitter, cat-5

Hide thumbs

CDA-211-RJ45

(2)1x2 Active Transmitter, CAT-5

Instruction Manual

Thank you for purchasing one of our products. Please read this manual before using this

product. When using this product, always follow the instructions contained in this manual,

and pay attention to the safety information.

Table of Contents

Need help?

Do you have a question about the CDA-211-RJ45 and is the answer not in the manual?

Questions and answers

Summary of Contents for CVS CDA-211-RJ45

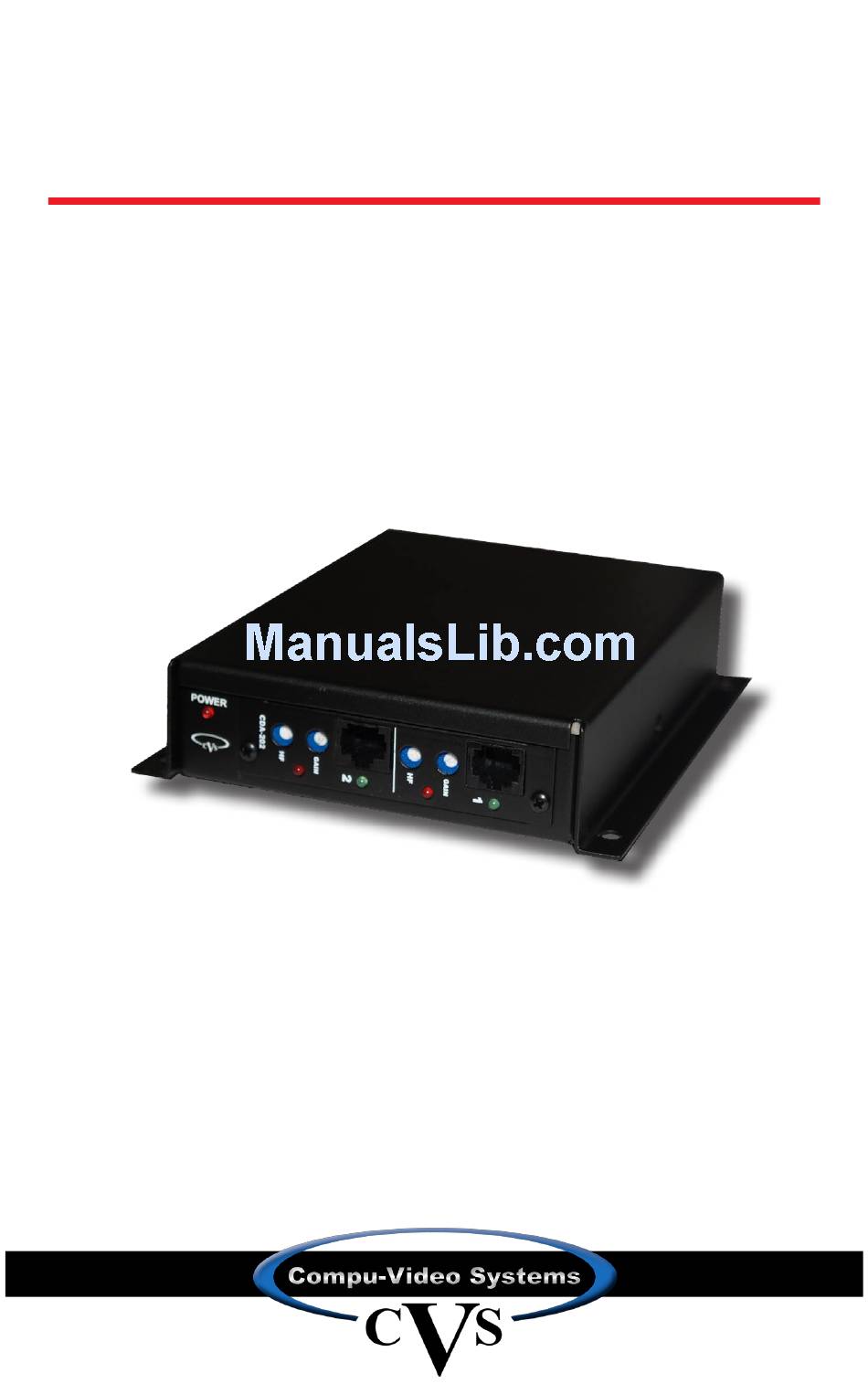

Page 1 CDA-211-RJ45 (2)1x2 Active Transmitter, CAT-5 Instruction Manual Thank you for purchasing one of our products. Please read this manual before using this product. When using this product, always follow the instructions contained in this manual, and pay attention to the safety information.
Page 2 Do not expose this product to water, rain or moisture. Doing this can result in electric shock or fire. Never take this product apart or try to modify it. Doing so is very dangerous and could result in electric shock. Do not store this product near open flame.
Page 3 2 Per Input Adjustments Protection While the CDA-211-RJ45 has rubber feet for table top use, it can be wall mounted by simply using the cover side flange mounting holes. (4) #8 screws are recommended for mounting. Installation And Removal Of A Board Set (BS) From The CH-1 Chassis.
Page 4 Installing a Board Set in an open slot: A) Holding the board so that the components face up, carefully slide the board into the slot. Seat the board in the mating connector in the motherboard. If you meet any resistance, remove the board and check for bent pins and a misaligned mating connector in the back of the slot.
Page 5 Controls: Each DABS-211 board has two sets of controls, a gain or level control and a high frequency adjust for picture sharpness, for each video input. The green LED indicates the presence of video and the red LED indicates which position the switcher output is viewing. Fig.
Page 6 Fig. 4 CAT-5 Connectors Fig. 5 Board View P.O. Box 749 Peekskill, NY 10566 Tel: (845) 737-7009 Fax: (845) 737-0426 Web: www.compuvideosystems.com...
Page 7 Overland return transportation from Compu-Video Systems Inc. to the user is free of charge. HOW TO GET SERVICE Please contact CVS by phone for a return authorization number and then return the defective unit, transportation prepaid and a dated proof of purchase to: Compu-Video Systems Inc.
