Paragon Casual Savannah Chat P33442G Owner's Manual

Outdoor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R
ANS Z21.97-2010, Outdoor Decorative Gas Appliances
CGA CR 97-003 Outdoor Gas Fireplaces
Owner's
Manual
OUTDOOR
FIRE PIT
C
R
1
R
US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Savannah Chat P33442G and is the answer not in the manual?

Questions and answers

Summary of Contents for Paragon Casual Savannah Chat P33442G

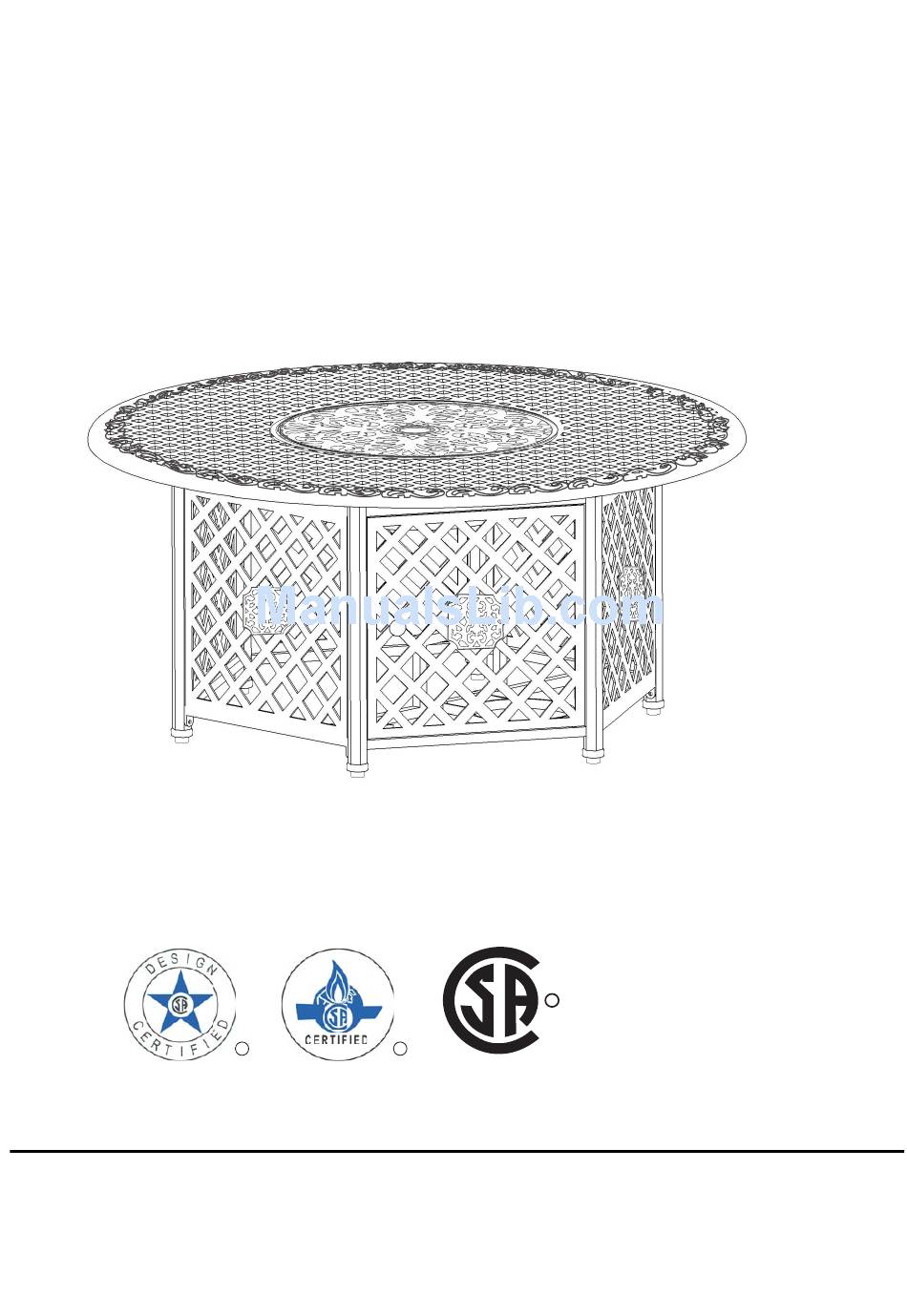

  • Page 1 Owner’s Manual OUTDOOR FIRE PIT ANS Z21.97-2010, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces...

  • Page 2: Replacement Parts List

    REPLACEMENT PARTS LIST PART DESCRIPTION QUANTITY Removeable Burner Cover Table Top Burner Burner Support Side Panel Side Panel (with a hole on the bottom) Side Panel (with a hole on the bottom) Side Panel Side Panel Gas Tank Bracket(side) Gas Tank Supprt(bottom) Door frame Bolt(6*20) Stud(8*35)Washer,Spring washer...

  • Page 3: Hardware Contents

    HARDWARE CONTENTS Bolt(6*20mm) Stud (8*35) Allen Wrench Bolt(8*20) Washer Qty. 4 Qty. 6 Qty. 1 Spring washer Qty. 15 Wrench Qty. 1 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. This appliance has been tested to and complies with the ANS Z21.97-2010, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces.
  • Page 4 SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This fire pit is a combustion appliance. All combustion paper or cardboard, a safe distance away from the appliances produce carbon monoxide (CO) during the fire pit as recommended by the instructions.

  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...

  • Page 6: Operation Checklist

    OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating: 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3.
  • Page 7 ASSEMBLY INSTRUCTIONS 1.Connect (D)(E) (E1)(F) (G)Side panel with (J)Door Frame using (K)Bolt(6*20mm), like the figure 1 show. Be careful the side of (E)(E1)Side panel with a hole should be on the bottom to place the (H)Gas Tank Bracket.DO NOT OVER TIGHTEN Hardware Used Bolt(6*20mm) x 12...
  • Page 8 ASSEMBLY INSTRUCTIONS 3.Place the(B) table top upsidedown on a clean and soft place.Put the(C) burner onto the table top.Then attach the （C1) burner support onto the unit,using the (L) studs,washers and spring washers.DO NOT OVER TIGHTEN Hardware Used Bolt (8*35mm) Washer, Spring washer 4.
  • Page 9 ASSEMBLY INSTRUCTIONS 5.Put the(A1) burner cover on the burner. 6. Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20 lb. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system.
  • Page 10 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
  • Page 11 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection...
  • Page 12 OPERATION INSTRUCTIONS DANGER WARNING • CARBON MONOXIDE HAZARD Very hot while in a operation! Never lean over the fireplace while in use. • For outdoor use only. Never use inside house, or other Do not touch tile of spark guard while the fire pit is in unventilated or enclosed areas.

  • Page 13: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When fire pit is ON: Burner will display tongues of blue and yellow flame.
  • Page 14 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Fire pit does NOT reach the desired temperature. Fire pit glow is excessively uneven. Fire pit makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.

  • Page 15: Troubleshooting

    TROUBLESHOOTING Wait until the propane cylinder Propane cylinder is frosted over warms up and becomes unfrosted Burner won’t light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and fill Gas pressure is low cylinder Outdoor temperature is less than 40ºF and...
