Page 2

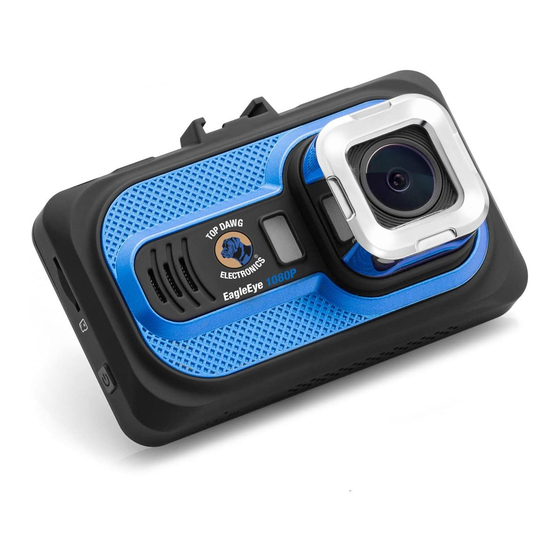

General introduction: 1) Up select button 2) Menu button 3) Down select button 4) USB data interface 5) Bracket mounting holes 6) AV interface 7) Power button 8)TF card slot 9) HOLD button 10)The mode selection button 11) OK to confirm button 12) Horn 13) Shot 14)IR LED Special Function Description 1.
Page 3
For install the car bracket; 6) AV interface Connect the display devices; 7) The power switch Long press to on / off ; short press to on /off the IR LED light. 8) TF card slot Memory card slot 9) HOLD button Press this button, the recording process, the current video file is saved as can not be deleted;...
1) USB-Disk In this mode, video files or photo files access; 2) the PC-Camera Select this mode will bring up the USB video device, real-time taking pictures or video chat; Battery Charging Instructions There are three ways to charge the battery, the red charging indicator light will be lit in the charging process, the charging time is about 180 minutes, the red charging indicator light will automatically switch off after the charging is finished.
Page 5
Support Infrared night vision Video output PAL / NTSC Video Format 50HZ/60HZ Current frequency 1 : USB-Disk 2: the PC-Camera USB function 5V 800ma Power Interface Built-in 300mAh Battery Note: When using this product due to improper operation caused by the phenomenon of crash, you can disconnect the battery or press the Reset button before turning on power, you can return to normal.
Page 6
This device may not be used to violate the privacy rights of others. In no way will Top Dawg Electronics or its subsidiaries or partners be held responsible for inappropriate use of this product. It is the sole responsibility of the buyer to consult legal counsel for the interpretation of any laws applicable to the area of intended use of these products.
