Summary of Contents for MAXTEK 66050

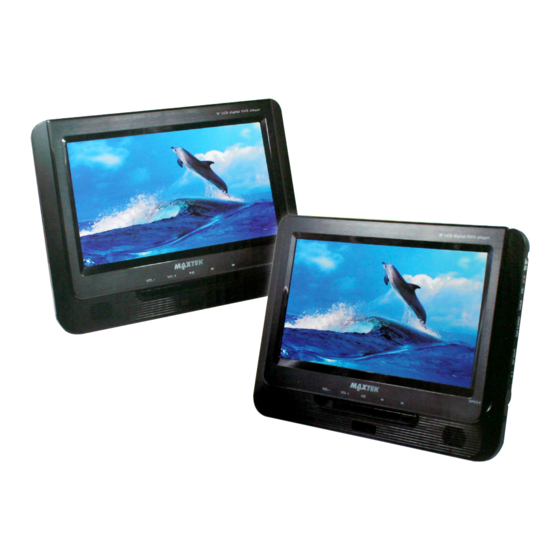

- Page 1 9” Dual DVD In-Car Entertainment System MODEL NUMBER: 66050 USER GUIDE After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
-
Page 2: Table Of Contents
Contents 1. Welcome Section 2. General Information & Safety Instructions 4. Contents & Features 5. Controls 7. Setup 9. Key Functions 10. Getting Started 11. Using USB, SD/MMC 12. Connecting an External Device 12. Headrest Mounting 13. System Setup 15. Specifications After Sales Support UK/N.IRELAND HELPLINE N 01270 508538... -
Page 3: Welcome Section
Welcome Section Congratulations! You have made an excellent choice with the purchase of this quality MAXTEK product. ® By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and saftey, supported by the high quality standards of Quesh Ltd. -
Page 4: General Information & Safety Instructions
General information & Safety Instructions CAUTION: Safely secure any excess wiring to avoid trip hazards, tangling or possible damage to this product. This remote control is powered by 1 x ‘CR2025’ battery. Do not dispose of batteries in your household waste. Please contact your local authority for details on safe disposal. -
Page 5: General Information
General information & Safety Instructions Please read the following safety information before use. C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN • To avoid risk of electric shock do not attempt to open this appliance. •... -
Page 6: Contents & Features
Contents & Features Contents 2 x 9” DVD players 1 x Remote Control 1 x 9.5V Mains adaptor 1 x 12V In-car adaptor 1 x AUX cable 1 x Power Splitter 1 x 3.5mm to RCA cable 2 x Headrest mounting straps Features •... -
Page 7: Controls
Controls DVD PLAYER CONTROLS ON/OFF SWITCH LCD TFT MONITOR VOLUME - VOLUME + PLAY/PAUSE POWER INDICATOR INFRARED RECIEVER CHARGE REWIND FAST FORWARD OPEN DC IN (9.5-12v) DC OUT USB PORT MEMORY CARD SLOT AV OUT HEADPHONE JACK After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N... -
Page 8: Remote Control
Remote Control MUTE MODE TFT ON/OFF MODE MUTE ON/OFF Battery Installation/removal Please Note: Battery type required is ‘CR2025’ After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk... -
Page 9: Setup
Setup Setting up one screen Connect the chosen adaptor to the power outlet and the other end in to the ‘DC in’ socket on the DVD player. Mains Adaptor Either Screen DC in In-Car Adaptor Charging the Battery The DVD players uses a built in lithium-polymer rechargeable battery. - Page 10 Setup Setting up both screens Both screens are capable of sharing video content with each other. Please follow the diagram below to setup the secondany screen to receive the output video feed from the chosen primary screen. Chosen Primary Screen DC in Mains Adaptor AV out...
-
Page 11: Key Functions
Key Functions The functions of each key are detailed below. The main function keys appear both on the the remote control (RC) and the DVD player. Zoom To enlarge the picture Mode DVD and external audio and video input conversion Number Key For inputting number digits Prev/Up... -
Page 12: Getting Started
Getting Started Basic DVD Operation • Before first time use, open the disc cover and carefully remove and discard the white cardboard dust cover from inside both decks marked “Warning: Please take out this card before playing” . • Remove all transparent film protection from the DVD players. •... - Page 13 Using the USB, SD/MMC Slot Memory Cards • Connect the SD/MMC card into the named port on the side. • Press and hold the ‘DVD/USB/CARD’ button to enter the DVD/USB/CARD mode. • Use the up/down arrow keys to highlight ‘Card Mode’ and press the ‘Enter’...
-
Page 14: Connecting An External Device
Connecting external devices Connecting a Device (RCA cable Included) You can connect the output of a device that uses RCA out to this DVD player and show the image or video feed. (Either Screen) • Insert the 3.5mm jack end of the 3.5mm to RCA cable into the ‘AV in’... -
Page 15: System Setup
System Setup System Setup Press SETUP on the remote control or DVD player to enter the Setup Menu. Here you will find the following options: General Setup, Audio Setup, Dolby Digital Setup, Video Setup and Preference Page. You can navigate through the menus with the arrow buttons indicated around the outside of the enter button. -
Page 16: Brightness Contrast
Dolby Digital Setup Page FUNCTION OPTION Dual Mono Stereo, L-Mono, R-Mono, Mix-Mono. Dynamic DRC slider, Off to Full. Video Setup Page FUNCTION OPTION Panel Quality Quality Panel Setup. Sharpness High, Medium, Low. Brightness Range select -18 to +18. Contrast Range select -12 to +12. Range select -9 to +9. -
Page 17: Specifications
Specifications Compatible Disc Formats DVD, DVD-R, DVD+R/RW, CD, CD-RW Compatible Video Formats DVD, AVI, DIVX, MP4 Compatible Image Formats JPEG, JPG Panel Size 9 Inches Frequency Response 20Hz to 20KHz Video Output 1Vp-p75 0Hm unbalanced Audio Output 1.8Vrms/10K 0Hm Dynamic Range Greater than 85Db Laser Semiconductor laser,... - Page 18 Warranty Certificate Warranty This product is warranted to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
- Page 19 Warranty Card 9” In-Car DVD Player Model Number: 66050 Please keep your purchase receipt together with your warranty card Name: Address: Date of purchase: Location of purchase: Fault Description: We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this warranty card and keep it for your reference.
