Summary of Contents for Blackbox SC-Keypad
- Page 1 SC-Keypad Manual v1.1 Dec 2015...
-
Page 2: Table Of Contents
SC-Keypad User Manual v1.1 Dec 2015 Contents 1. What is the SC-Keypad? ..............4 2. Supported Media Formats ............. 4 3. In the Box ..................5 4. Setup Instructions ................6 5. Programming Content & Screen ............ 9 Adding Audio ................. 9 Editing Screen Text .............. -
Page 3: What Is The Sc-Keypad

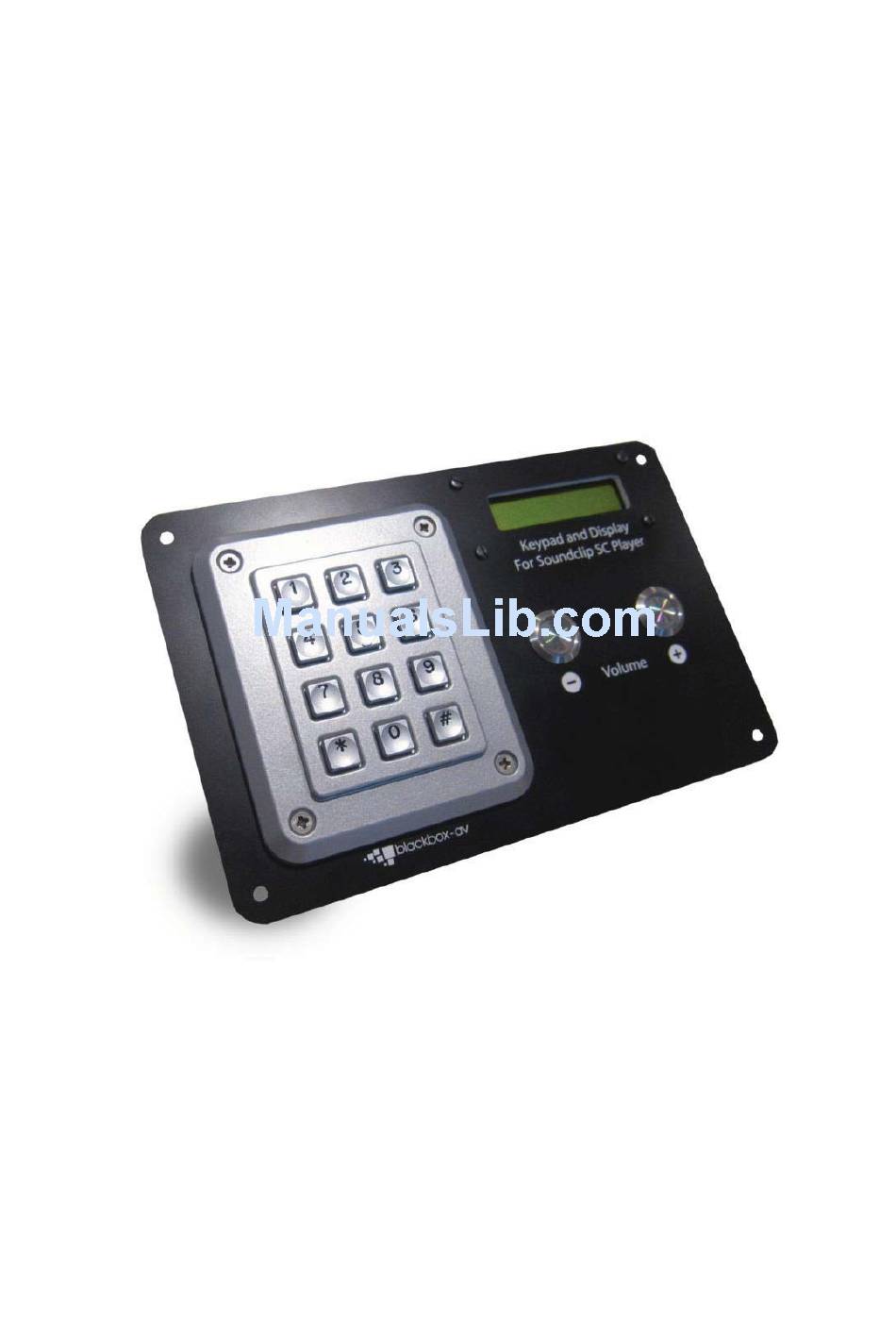

T: +44 (0)1639 767007 | W: www.blackboxav.co.uk 1. What is the SC-Keypad? The SC-Keypad combines our SoundClip audio player with a numerical keypad and screen, allowing you to present up to 99 audio tracks to visitors accessible by inputting numbers 01 - 99. -
Page 4: In The Box
SC-Keypad User Manual v1.1 Dec 2015 3. In the Box IP65 Rated Keypad - vandal resistant Keypad Connector, 500mm Cable Assembly, max 1 meter 16x2 Backlit Green LCD screen SoundClip Audio Player Power Supply 12V MicroSD card / USB - MicroSD / Screwdriver... -
Page 5: Setup Instructions
Headphone 1 7 2 in 3.5mm jack MicroSD Slot Button Volume Input Speaker Out Cable Assembly out Setting up your SC-Keypad is simple, you will need the following; - The SoundClip - 12v DC Adapter - Keypad - Screen - Headphones or Speakers (not included) - Page 6 SC-Keypad User Manual v1.1 Dec 2015 Powering your SC-K (1) Connect the supplied 12v DC adapter to the 12v DC in. Master Volume Control (2) Set the master volume control (right = up left = down). The SC-K will always start-up to half this amount allowing users to increase/decrease the volume via the assigned volume up and down buttons (buttons not provided).
- Page 7 SC-Keypad User Manual v1.1 Dec 2015 You connect the devices like so; = Cable Assembly = Screen Connection = Cable Assembly Connection = Keypad Connection The Cable Assembly (1) connects both the SoundClip and Screen (2) to the interface board (3) which also connects to the Keypad (4).
-
Page 8: Programming Content & Screen
SC-Keypad User Manual v1.1 Dec 2015 5. Programming Content & Screen Content for your SC-K is stored on the supplied MicroSD card. To add content you will need; 1) Audio Content in .mp3 format (supports up to 99 tracks) 2) A PC or laptop Windows OS... - Page 9 SC-Keypad User Manual v1.1 Dec 2015 Programming the SC-K is as easy as transferring your audio files to the supplied MicroSD Card. Step 1: Prepare your audio files for transfer, we recommend you use .mp3 files however .wav files are also supported. Rename each file to 001, 002, 003 etc.
-
Page 10: Editing Screen Text
SC-Keypad User Manual v1.1 Dec 2015 Note the ‘Config.txt’ file - this is the file which sets the welcome text on the screen. Editing Screen Text The screen is able to display 16 characters per line across two different messages - so 32 characters in total per screen. -
Page 11: Status Led
SC-Keypad User Manual v1.1 Dec 2015 Note: Each line consists of 16 characters; you must type both characters and spaces. In the example the spaces have been entered to make each message cover 2 lines. The Config.text must end with the word ‘END’.
